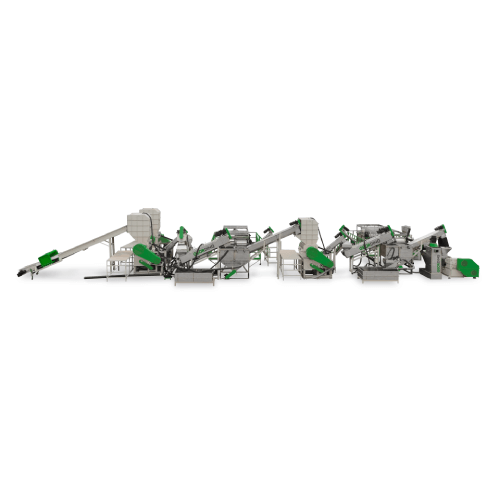

Crushing, Washing And Drying Whole Plant Facility For Plastic Scrap

Classification : Washing Line

GEOR-DING MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-26821888

Fax: 886-4-26819777

Contact Person: Jessica Liu

Inquiry Now

Suitable for washed plastic scraps

Good at water removal. The residual moisture after drying could be around 1-3%.
Whole set of electric facility are with automatic startup to protect wires in safe.
You can opt to have 3 water tank, depending on how dirty material is.

Wet Type Crusher.

Squeezing Drying Machine with Speial Design on the Screw.

You can opt to have 3 water tank, depending on how dirty material is.

You can choose shredder or hydraulic cutter as options based on circumstances.

Model	GD-500PCW	GD-1000PCW
Conveyor
Motor	3HP	3HP x 2pcs
Wet Type Crusher
Motor	100~150HP	100~150HP x 2pcs
Floating Tank
Motor	10HP	10HP
Material	SUS304	SUS304
Frame Material	Iron and Steel	Iron and Steel
Screw Conveyor
Motor	3HP	3HP*2 pcs
Single Screw Drying Machine
Motor	100~200HP	100~150HP x 2pcs
Jumbo Bag Frame
Material	Iron and Steel	Iron and Steel
Capacity
	500kg/hr	1000kg/hr
Optional
Horizontal Centrifuge	60~75HP	60~75HP
Optional
Shredder, Hydraulic Cutter	60~75HP	60~75HP

＊The product line can be made to spec meeting customer needs.
＊Equipment specifications are also constanly updated. You are welcomed to contact us for details.

plastic dirty scraps for washing line
