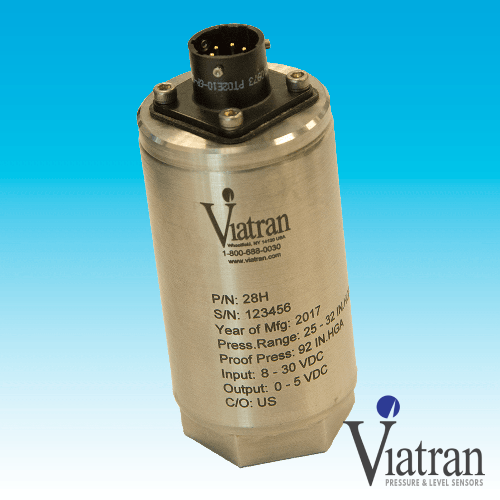

Barometric Pressure Transmitter

Classification : Viatran / Pressure Transducers

MITSUDELL CO., LTD. - Dynisco/Viatran Agent in Taiwan

MITSUDELL CO., LTD. - Dynisco/Viatran Agent in Taiwan
Country: Taiwan
Phone: 886-4-2631-3001
Fax: 886-4-2631-7717
Contact Person: Harrison Chang


Features

 High Accuracy
 Many Options available
 All Stainless Steel construction
 Low Pressure Applications


Performance
Full Scale Pressure Ranges (FSPR)
25" to 32" HgA
(Optional ranges can be factory set from 0” to 32” HgA with a minimum 7” HgA span)
Accuracy (RSS*)
≤±0.21% FSO**
Nonlinearity (Best Fit Straight Line)
≤±0.1% FSO (≤±0.06% FSO with DN option)
Hysteresis & Repeatability
≤±0.13% FSO each
Full Scale Output (FSO)
5 Vdc ≤±0.5% FSO at 70°F (21°C) Standard
10 Vdc ≤±0.5% FSO at 70°F (21°C) Optional
Resolution
Infinite
Long Term Stability
≤±0.5% FSO per 6 months (typical)
Compensated Temperature Range
32°F to 170°F (0° to 77° C)
Process Media Temperature Range
-40°F to 250°F (-40°C to 121°C)
Ambient Operating Temperature Range
-40°F to 185°F (-40°C to 85°C)
Storage Temperature Limits
-40°F to 185°F (-40°C to 85°C)
Temperature Effect on Zero
≤±0.01% FSO per 1°F (.556°C)
Temperature Effect on Span
≤±0.01% FSO per 1°F (.556°C)



Features

 High Accuracy
 Many Options available
 All Stainless Steel construction
 Low Pressure Applications

 Performance
Full Scale Pressure Ranges (FSPR)
85 to 108 kPa Absolute
(Optional ranges can be factory set from 0 to 108 kPaA with a minimum 25 kPaA span)
Accuracy (RSS*)
≤±0.21% FSO
Nonlinearity (Best Fit Straight Line)
≤±0.1% FSO (≤±0.06% FSO with DN option)
Hysteresis & Repeatability
≤±0.13% FSO each
Full Scale Output (FSO)
16 mA ≤±0.5% FSO at 21°C (70°F)
Resolution
Infinite
Long Term Stability
≤±0.9% FSO per 6 months
Compensated Temperature Range
0° to 77° C (32°F to 170°F)
Process Media Temperature Range
-40°C to 121°C (-40°F to 250°F)
Ambient Operating Temperature Range
-40°C to 85°C (-40°F to 185°F)
Storage Temperature Limits
-40°C to 85°C (-40°F to 185°F)
Temperature Effect on Zero
≤±0.018% FSO per 1°C (1.8°F)
Temperature Effect on Span
≤±0.018% FSO per 1°C (1.8°F)
