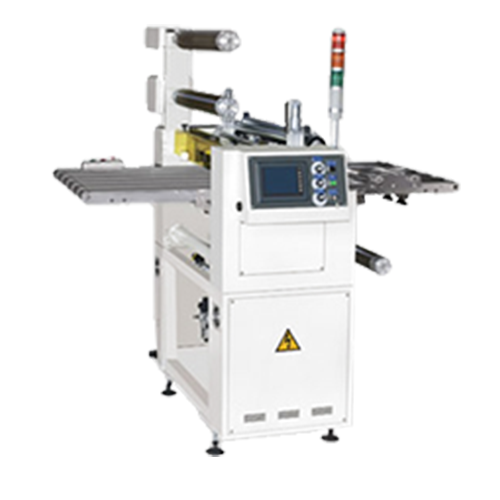

Classification : High-Precision Laminating Cutting Machine
Country: Taiwan
Phone: +886-4-779-5268~9
Fax: +886-4-779-4870
Contact Person: Sales Team
Unique feeder mechanism to enable lamination and processing by operators without having to keep up with machine operating speed.
Unique, exclusive, patented film laminating mechanism to ensure no air bubbles after lamination process.
Automatic cutting mechanism is capable of having a specified length programmed for cutting operation.
Laminating length and speed can be programmed and adjusted to suit actual requirements.
Singe-side or double-side protective films can be laminated to suit actual requirements.
With pattern paper recoil function to automatically recoil the pattern paper.
Optional roll to roll or roll to sheet lamination.
Lamination or processing of ITO Film, and all types of optical-glass or adhesive tape.
| Model | ALM-700 |
|---|---|
| Dimensions of Machine L x W x H (mm) | L1470 x W 1500x H 1350 |
| Working Area L x W (mm) | 550mm x 550mm |
| Motor (HP) | 3-phase AC220V |
| Air Pressure Requirement | 0.5Mpa |
| Applicable Width of Material | 0.5-2mm |
| Weight of Main Unit | Approximately 700kg |
