Automatic Blow Molding machine- A Series

Classification : Automatic Blow Molding Machine

FULL SHINE PLASTIC MACHINERY CO., LTD.

FULL SHINE PLASTIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-22765071
Fax: 886-4-22765070
Contact Person: Ms. Huang
  • This type is the pneumatic-clamping blow-molding machine, suitable for making popsicle (ice-lolly) & various small-size bottles.
  • Extrusion is driven by the inverter motor with pulley-drive gear box.
  • Innovative design for double die head production.
  • Mold clamping is driven by pneumatic system, available for upgrading to hydraulic-drive system (Option).
  • Carriage movement is the swing movement for taking the finished products from the front of the machine.
  • Independent electric control box with simple control panel.
  • Simple-type blow molding machine, suitable for low and initial blow molding machinery investment.
EXPOSITION OF FULL SHINE'S MACHINE MODEL
SCREW DIAMETER(M/M) MACHINE SERIES MOLD HEAD(DIE HEAD) MOLD STATION PRODUCT TYPE
FS-40 (H) Horizontal (S) Single Mold Head (S) Single Mold Station (O) Original
FS-45 (P) Parallel (D) Double Mold Heads (D) Double Mold Stations (C) Two Colors
FS-55 (O) Standard / Oblique (T) Three Mold Heads (D) Two Layers
FS-65 (A) Pneumatic (F) Four Mold Heads (T) Three Layers
FS-75 (L) Frontal (E) Eight Mold Heads (F) Four Layers
FS-80 (I) Lateral (L) Six Layers
FS-90 (V) View Stripe
FS-100 (P) PC baby bottle
Example
FS-65 P D S D

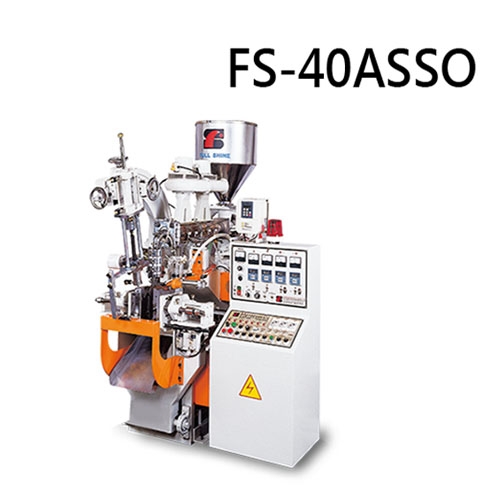

Model  FS-40 ASSO FS-40ASSO FS-40 ADSO
1 Material   PE/PP PVC PE/PP
2 Screw diameter m/m 40 40 40
3 Screw L/D ratio L/D 22/1 22/1 22/1
4 Screw R.P.M. speed r.p.m. 15-50 15-50 15-50
5 Inverter motor HP 5 5 5
6 Oil hydraulic drive motor HP * * *
7 Optional air compressor HP 5 5 5
8 Air pressure Kg/cm2 6-Apr 6-Apr 6-Apr
9 Clamping force Ton 0.5 0.5 0.5
10 Oil tank capacity Gallon * * *
11 Number of heaters ZONE 3 3 5
12 Heating capacity KW 4.5 5.2 6
13 Total installed power KW 11 12 13
14 Extruding capacity per hour Kg/hr 15 15 15
15 Dry cycle per hour time/hr 1800 1800 1280
16 Product  capacity c.c./L 20-400 20-400 10-100
17 Product weight g. 30-Oct 30-Oct 15-May
18 Min./Max. diameter of product m/m Oct-75 Oct-75 Oct-50
19 Extruding mouth outer diameter m/m 40 40 25
20 Mold center distance m/m * * 50
21 Clamping distance m/m 60-230 60-230 60-230
22 Length of mold capacity m/m 80-330 80-330 80-330
23 Width of mold capacity m/m 220 220 220
24 Machine net weight Kg 550 650 700
25 Machine dimension m 1.95*1.0*1.8 1.95*1.0*1.9 1.95*1.15*1.8
PHOTOSPHOTOS
              Sample bottles                       Double Die Head & Double Blow Pin

AIR COOLING CHILLER                                                                                                                        AUTO 2 SIDE LABELING MACHINE


AUTO JAR NECK CUTTING MACHINE                                                                                                    AUTO LOADER


BELT TYPE CONVEYOR                                                                                                                     BLOW MOLD & INJECTION MOLD


CRUSHER                                                                                                                                         HOPPER DRYER


IN MOLD LABELING MACHINE                                                                                                          LEAKING TESTER



MASTER BATCH FEEDER                                                                                                                  MIXER


MOLD TEMPERATURE CONTROLLER                                                                                                     WATER COOLING CHILLER

PRECISE OIL FILTER                                                                                                                                        PROPORTIONAL DEVICE

SERVO MOTOR SYSTEM
