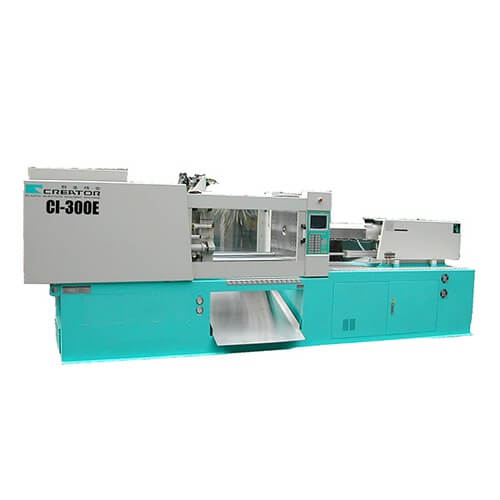

Classification : Servo Energy-Saving Injection Molding Machines
| Item | Unit | CI-300E | CI-300SE | CI-400E | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCREM DIA | mm | 50 | 56 | 63 | 70 | 45 | 50 | 56 | 63 | 56 | 63 | 70 | 80 |
| INJ. VOLUME | cm3/shot | 490 | 615 | 779 | 962 | 358 | 441 | 554 | 701 | 690 | 872 | 1077 | 1407 |
| INJ. CAPACITY | g | 466 | 584 | 740 | 914 | 340 | 419 | 526 | 666 | 656 | 829 | 1023 | 1336 |
| PLASTICIZING RATE | kg/hr(ps) | 100 | 125 | 167 | 235 | 77 | 97 | 131 | 183 | 130 | 162 | 228 | 317 |
| INJ. PRESS | kgf/cm2 | 2464 | 1964 | 1552 | 1256 | 2685 | 2176 | 1734 | 1370 | 2460 | 1945 | 1575 | 1205 |
| INJ. RATE | cm3/sec | 300 | 376 | 477 | 588 | 219 | 270 | 340 | 430 | 340 | 429 | 530 | 692 |
| SCREW L/D RATIO | 25 | 22 | 20 | 18 | 25 | 22 | 20 | 18 | 25 | 22 | 20 | 17.5 | |
| INJ. STROKE | mm | 250 | 225 | 280 | |||||||||
| INJ. SPEED | mm/s | 153 | 176 | 124 | |||||||||
| SCREW SPEED | rpm | 0~225 | 0~280 | 0~185 | |||||||||
| NOZZLE STROKE | mm | 430 | 380 | 470 | |||||||||
| NOZZLE FORCE | tonf | 6.8 | 6.8 | 8.8 | |||||||||
| CLAMP FORCE | tonf | 300 | 300 | 400 | |||||||||
| CLAMP STROKE | mm | 850 | 850 | 1000 | |||||||||
| MIN. THICKNESS | mm | 300 | 300 | 320 | |||||||||
| DAYLIGHT OPEN | mm | 1150 | 1150 | 1320 | |||||||||
| TIE BAR DISTANCE | mm | 660*660 | 660*660 | 735*735 | |||||||||
| PLATEN SIZE | mm | 955*955 | 955*955 | 1060*1060 | |||||||||
| EJECTOR STROKE | mm | 130 | 130 | 150 | |||||||||
| EJECTOR FORCE | tonf(kN) | 9.6 | 9.6 | 9.6 | |||||||||
| OPINING FORCE | tonf(kN) | 12 | 12 | 12 | |||||||||
| MAX. SYS. PRESS | kgf/cm2 | 175 | 175 | 170 | |||||||||
| MOTOR POWER | kw(hp) | 30 | 26 | 41 | |||||||||
| HEATER CAPACITY | kw | 17 | 15 | 25 | |||||||||
| HYD. OIL REQ | L | 950 | 950 | 1300 | |||||||||
| MACHINE DIMESIONS(L*W*H) | M | 6*1.5*2 | 6*1.5*2 | 7.2*1.7*2.1 | |||||||||
| FLOOR SPACE | M | 5.6*1.4 | 5.6*1.4 | 6.5*1.3 | |||||||||
| MACHINE WEIGHT | ton | 12.5 | 12 | 15 | |||||||||
| Item | Unit | CI-400SE | CI-500E | CI-500SE | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCREM DIA | mm | 50 | 56 | 63 | 70 | 63 | 70 | 80 | 90 | 56 | 63 | 70 | 80 |
| INJ. VOLUME | cm3/shot | 490 | 615 | 779 | 962 | 997 | 1231 | 1608 | 2035 | 251 | 318 | 392 | 492 |
| INJ. CAPACITY | g | 466 | 584 | 740 | 914 | 947 | 1169 | 1527 | 1933 | 238 | 302 | 372 | 467 |
| PLASTICIZING RATE | kg/hr(ps) | 97 | 125 | 167 | 235 | 150 | 200 | 274 | 380 | 66 | 72 | 98 | 134 |
| INJ. PRESS | kgf/cm2 | 2463 | 1964 | 1552 | 1256 | 2470 | 2000 | 1531 | 1209 | 2626 | 2076 | 1681 | 1340 |
| INJ. RATE | cm3/sec | 300 | 376 | 477 | 588 | 399 | 492 | 643 | 814 | 305 | 386 | 477 | 623 |
| SCREW L/D RATIO | 25 | 22.5 | 20 | 18 | 25 | 22.8 | 20 | 17.8 | 25 | 22 | 20 | 17.5 | |
| INJ. STROKE | mm | 250 | 320 | 280 | |||||||||
| INJ. SPEED | mm/s | 153 | 128 | 124 | |||||||||
| SCREW SPEED | rpm | 0~260 | 0~188 | 0~185 | |||||||||
| NOZZLE STROKE | mm | 430 | 520 | 470 | |||||||||
| NOZZLE FORCE | tonf | 6.8 | 12 | 8.8 | |||||||||
| CLAMP FORCE | tonf | 400 | 500 | 500 | |||||||||
| CLAMP STROKE | mm | 1000 | 1050 | 1050 | |||||||||
| MIN. THICKNESS | mm | 320 | 350 | 350 | |||||||||
| DAYLIGHT OPEN | mm | 1320 | 1400 | 1400 | |||||||||
| TIE BAR DISTANCE | mm | 735*735 | 820*820 | 820*820 | |||||||||
| PLATEN SIZE | mm | 1060*1060 | 1190*1190 | 1190*1190 | |||||||||
| EJECTOR STROKE | mm | 150 | 160 | 160 | |||||||||
| EJECTOR FORCE | tonf(kN) | 9.6 | 12 | 12 | |||||||||
| OPINING FORCE | tonf(kN) | 12 | 15 | 15 | |||||||||
| MAX. SYS. PRESS | kgf/cm2 | 170 | 170 | 170 | |||||||||
| MOTOR POWER | kw(hp) | 41 | 41 | 41 | |||||||||
| HEATER CAPACITY | kw | 25 | 28 | 25 | |||||||||
| HYD. OIL REQ | L | 1300 | 1500 | 1500 | |||||||||
| MACHINE DIMESIONS(L*W*H) | M | 7.2*1.7*2.1 | 7.6*1.8*2.3 | 7.6*1.8*2.3 | |||||||||
| FLOOR SPACE | M | 6.5*1.3 | 6.9*1.6 | 6.9*1.6 | |||||||||
| MACHINE WEIGHT | ton | 14.4 | 20 | 19.3 | |||||||||
