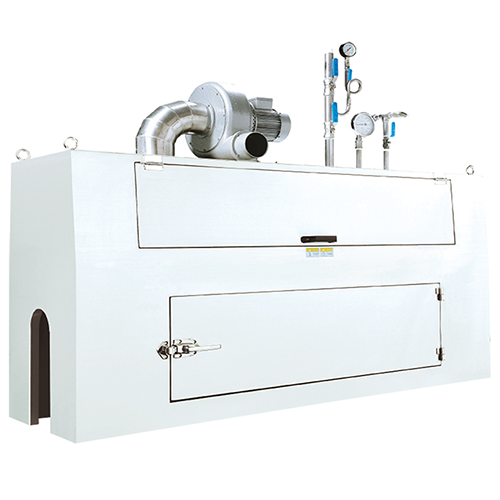

STEAM TUNNEL AS-1800 1.8Meter Steam tunnel

STEAM TUNNEL AS-1800 1.8Meter Steam tunnel
Classification : OPTIONAL ACCESSORIES
DASE-SING PACKAGING TECHNOLOGY CO., LTD.
DASE-SING PACKAGING TECHNOLOGY CO., LTD.
Country: Taiwan
Phone: 886-3-5686478 (203)
Fax: 886-3-5686375
Contact Person: Tony Huang
Inquiry Now

MACHINE FEATURES

  • Power source:3P/ 220V~415V
  • Machine dimensions:1800L × 500W × 610H mm
  • Tunnel dimensions:1800L × 150W × 420H mm
  • Host horsepower:0.4kw
  • Steam inlet pressure:0.5 ~ 1 kg.cm2
  • Steam consumption:100 ~ 200 kg/hr
  • Observation window:One set



Innovative Features

  • 1.Easy to install, simple and generous shapeSteam nozzles can be adjusted according to needs.
  • 2.Machine frame with stainless material, durable, suitable for any environment.
  • 3.Can be installed on both sides of the furnace reinforced glass
  • 4. AS 1800B wih view window
  • 5. Can upgrade with inverter to control steam exhust speed
