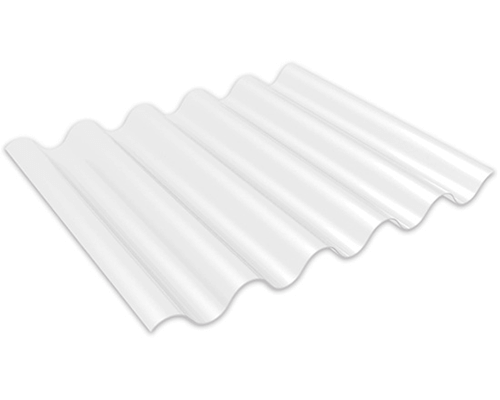

POLYCARBONATE CORRUGATED SHEET-L20

POLYCARBONATE CORRUGATED SHEET-L20
Classification : Products
LYON PLASTIC CO., LTD.
LYON PLASTIC CO., LTD.
Country: Taiwan
Phone: 886-6-5784655
Fax: 886-6-5784365
Contact Person: Mr. Chen
Inquiry Now
Impact resistance: virtually unbreakable
Transparent: up to 92% LT
Weather and UV resistant
Wide service temperature range
High flammability rating
Industrial Roofing, Canopies, Dormers, Polycarbonate Skylights and much more!
NO. PROFILE THICKNESS
(MM) 		PITCH
(MM) 		DEPTH
(MM) 		WIDTH
(MM) 		EFFECTIVE WIDTH (MM)
L1 0.8 ~ 2.0 190 26 820 760
Color Color Code Light Transmittance Diffusion Parallet Light Transmittance Haze
Clear CL001 91.67% 0.74% 88.93% 0.83%
Bronze BZ001 36.69% 1.41% 35.28% 3.85%
Bronze BZ002 37.75% 1.11% 36.64% 2.94%
Bronze BZ003 N/A N/A N/A N/A
Grey GE001 40.29% 1.41% 38.89% 3.49%
Grey GE002 13.94% 0.12% 13.81% 0.89%
Grey GE003 19.98% 0.66% 19.31% 3.32%
Opal OP001 44.17% 43.86% 0.30% 99.32%
Green GR001 53.61% 2.19% 51.43% 4.08%
Blue BL001 25.20% 2.17% 23.03% 8.61%
Pearl PR001 25.55% 25.27% 0.28% 98.92%
Sliver SL001 13.65% 11.01% 2.64% 80.68%
Cream CM001 30.69% 30.46% 0.23% 99.25%
Claret CT001 N/A N/A N/A N/A
Soft White/Diffused WD001 89.01% 72.89% 0.68% 97.92%
Clear/Embossed CL001 89.66% N/A N/A 84.11%
