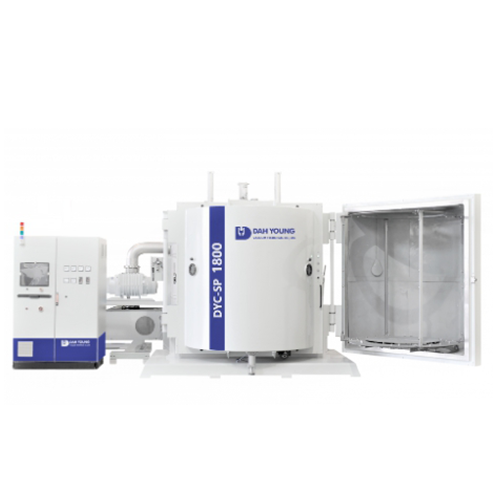

DYC-SP is a vertical double-door, four-target, double-diffusion system vacuum coating machine. The cavity of the machine is 1.8M and the cavity height is 1.85M. It is widely used in communication equipment, computers, consumer electronics and electrical appliances. In the fields of machinery and plastics, it is suitable for customers of all production scales.

The DYC-SP series offers a multi-target mounting solution that will help improve coating uniformity and enable multilayer film processing.

Model	DYC-1800-SP
Exhaust System	single row double diffusion
Chamber Dimension W X H (mm)	1800 X 1850
Number of Planetary Axis	One 6/8 axis
Effective Coating Diameter (mm)	500/430
Effective Coating Height (mm)	1350
Coating Method	Sputtering PVD
Ultimate Vacuum (Torr)	5x10-6Torr
Pumping Efficiency	2x10-5Torr ≦ 8min
Demand Power Supply (kVA)	3-phase power supply 380V 150kVA
※Specification might vary due to any customization demand.

(1) Multi-sputtering target design: The target position can be adjusted to improve the uniformity of the coating, and different targets can be placed to realize the multilayer film process.

(2) Optimized exhaust system: shorten the length of the pipeline and match the well-known brand Pump to achieve the best exhaust effect.

(3) Exhaust efficiency improvement: The double-diffusion exhaust system is designed to effectively shorten the exhaust time.

(4) Touch IPC: can store more complicated process parameters and historical records, and can perform remote control of the network,Trouble Shooting zero time difference.
