Micro Injection Molding Machines

Micro Injection Molding Machines
Classification : MICRO INJECTION MOLDING
ANN TONG INDUSTRIAL CO., LTD.
ANN TONG INDUSTRIAL CO., LTD.
Country: Taiwan
Phone: 886-2-29997193
Fax: 886-2-29993403
Contact Person: Anny
Inquiry Now
  • Quick and cost-effective mold solutions.
  • Small order are available. (min. order of 300 shots)
  • Product weight：From 0.001 gram to 8 grams.
  • Product dilensions：From 1mm to 20mm.
  • Materials：Quality can vary from regular grade to engineering grade all kinds of thermoplastics, even high temperature resins. (Ex. PP,PE,ABS,POM,PA,PC,COC,LCP,PEI,PPSU and PEEK.)

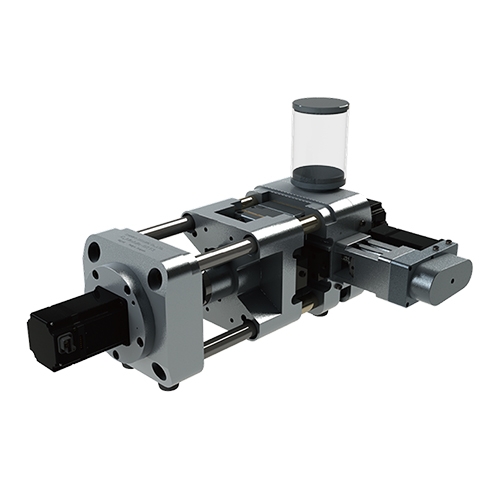

C,MOBILE-0813     MICRO INJECTION MOLDING MACHINE

Clamping force 3 tons
Injection pressure 3544 kg/cm² (∅ 8mm) / 2268 kg/cm² (∅ 10mm)
Injection volume 1.9 cc (∅ 8mm) / 2.96 cc (∅ 10mm)
Injection speed Standard 60 mm/sec, can upgrade to 120 mm/sec
Injection time accuracy 0.01 sec
Packing time accuracy 0.1 sec
Machine dimension 64*30.5*28 cm
Machine weight 37 kg
Mold dimension 80*130*120 mm

C,MOBILE-1320     MICRO INJECTION MOLDING MACHINE

Clamping force 10 tons
Injection pressure 3001 kg/cm² (∅ 13mm) / 2261 kg/cm² (∅ 15mm)
Injection volume 7.69 cc (∅ 13mm) / 10.02 cc (∅ 15mm)
Injection speed 67 mm/sec
Injection time accuracy 0.01 sec
Packing time accuracy 0.1 sec
Machine dimension 92*44*35 cm
Machine weight 95kg
Mold dimension 130*200*155 mm
