Classification : PET BLOW MOLDING MACHINE
Country: Taiwan
Phone: 886-4-23345536/ 86-595-88169879
Fax: 886-4-23345539/ 86-595-88165687
Contact Person: Claire
- Automatic PET stretch blow molding machine LM series match with high-speed precision blowing valve, air recovery converting to pressure operation will reduce air consumption.
- Preform from hopper transfer to unscrambler, automatically deliver to single channel by sequence.
- Shorten heating pitch to decrease energy waste and increase heating efficiency.
- Automatic PET stretch blow molding machine LM series adopt continuously centralized heating method
- Cooling ramp and air blowing device, effectively isolating preform neck to avoid preform neck deformed causing by overheating.
| Model | Unit | LM04M | LM02MC | LM02L |
| Cavity no. | cavity | 4 | 2 | 2 |
| Theoretical Output | BPH | 4000 | 2000 | 1500 |
| Preform Holder | pcs | 90 | 64 | |
| Heating pitch | mm | 38.1 | 38.1 | 76.2 |
| Cavity pitch | mm | 120 | 114.3 | 240 |

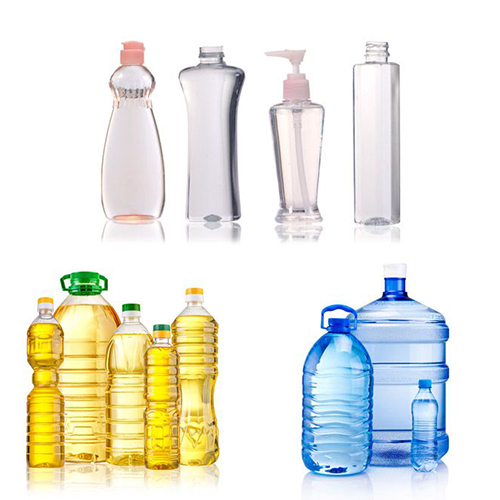

| Bottle volume | Max. | 2Ltr. | 2Ltr. | 12Ltr. |
| Preform neck | Max. (mm) | 30 | 30 | 65 |
| Preform height | Max. (mm) | 150 | 150 | 190 |
| Bottle diameter | Max. (mm) | 110 | 105 | 210 |
| Bottle height | Max. (mm) | 460 | 320 | 320 |
| Oven no. | box*channel | 4*1 | 2*1 | 6*1 |
| Heating power | kW | 62 | 30 | 125 |
| Installed power | kW | 140 | 34 | 66 |
| Machine size | cm | 520*290*320 | 420*290*320 | 600*420*320 |
| Machine wt. | kg | 5500 | 3000 | 7000 |
| origin | Taiwan | ◎ | ◎ | ◎ |
| China | ◎ |
TARGET：
- Excellent Value, New Choice.
OUTPUT:
- Suitable for small-volume, large-variety.
- Suitable for thick, long and heavy preform.
WORTH:
- Simple Operation.
- Stable movement.
- Energy-Saving.
STRUCTURE:
- Adopt star-wheel preform infeed.
- Adopt preform hanging heating system.
- Adopt servo-pneumatic movement.
