Classification : Web Guiding System
Country: Taiwan
Phone: 04-24912111
Fax: 886-4-24912739
Contact Person: 李鎮宇

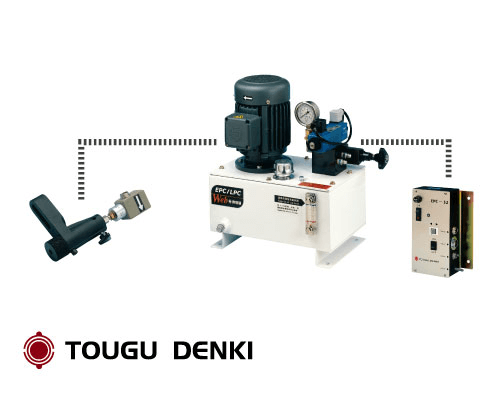

1. Photoelectric sensor detects by projection, easy to use without setting, accuracy 1mm.
2. Detects any material : clear and opaque materials, reflective steel, meshes, nonwoven, clothes,…etc.
3. Hydraulic Actuator is consistent quality, high thrust for load 3 tons, low noise, no oil leakage.
4. Adjustable trace speed for the requirements.
5. Made in Taiwan. Internal edge position controller has contactless semiconductor control that provides reliability and durability.
2. Detects any material : clear and opaque materials, reflective steel, meshes, nonwoven, clothes,…etc.
3. Hydraulic Actuator is consistent quality, high thrust for load 3 tons, low noise, no oil leakage.
4. Adjustable trace speed for the requirements.
5. Made in Taiwan. Internal edge position controller has contactless semiconductor control that provides reliability and durability.
|
Model |
EPC-52 |
|
Function |
Auto / Man |
|
Sensor |
DT Photoelectric Sensor |
|
Accuracy |
1mm |
|
Actuator |
AO-2GH Hydraulic |
|
Cylinder |
Φ40~80, stroke 50~500mm, option |
|
Speed |
200m/min |
|
Load (COF=0.1) |
3000KG |
