Fully Automatic High Speed 2 Lines With Core Bag on roll Making Machine with Hot Slitting & Side Gusseting Unit / SCR-40-G2

Classification : Bag-on-roll Making Machines
Country: Taiwan
Phone: 886-2-86782865
Fax: 886-2-86782869
Contact Person: Yarzar
Inquiry Now
  • Computer control over the entire process
  • From film roll to final pruduct, one process flow
  • Automatic film feeding, cordination free from tension adjustment
  • Automatically stop when running out of film / color scanning error / film feeding blocks or jam
  • Automatically core changing system

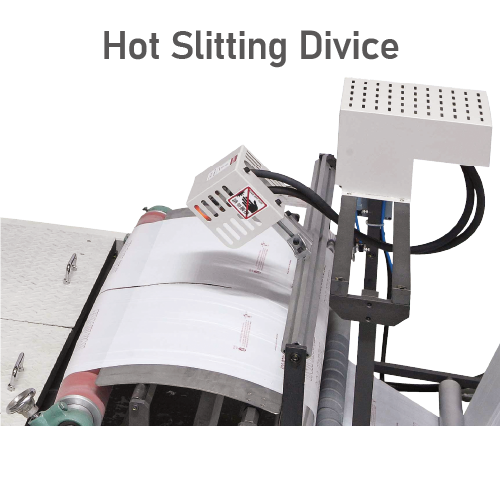

  • Hot slitting  device
MODEL SCR-40-G2
Length 150 ~ 750 mm
Width 100 ~ 350 mm
Thickness 8 ~ 35 um
Roll size Ø 180 mm (max)
Core size Ø 25~75 mm, thickness 3 mm (min)
Production Speed 100 meters / min / line
Film Roll Size Ø 900 x 1200 mm (max)
Power 220V, 3Phases, 50/60 HZ, 20KVA
Heater 3.5 KW
Air Compressor 10 HP ( not included )
Dimension L : 10400 mm
W : 2400 mm
H : 2150 mm
