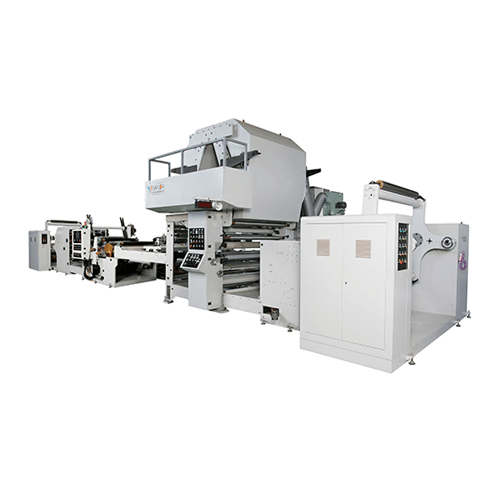

Classification : Extrusion Coating Lamination Machine For Flexible Packaging
Country: Taiwan
Phone: 886-6-5920556
Fax: 886-6-5920558
Contact Person: Ellen Liao
● This machine is applicable for coating Nylon, LLDPE, PET, BOPP, Aluminum Foil etc.
● Unwinder and winder adopt turret type. Auto air shafts alternant change and no need to reduce line speed when film splicing.
● A sandwich unwinder for BOPP. Use sandwich function to coat 2 different substrates and enhance products diversity.
● Whole machine is synchronously controlled by PLC programmable, and easily operated through human machine interface.
● Unwinder and winder adopt turret type. Auto air shafts alternant change and no need to reduce line speed when film splicing.
● A sandwich unwinder for BOPP. Use sandwich function to coat 2 different substrates and enhance products diversity.
● Whole machine is synchronously controlled by PLC programmable, and easily operated through human machine interface.
| Model | Extrusion material | Substrate | Screw diameter | Screw L/D | Lamination width | Lamination thickness | Max. line speed | Extrusion output | Machine dimensions [LxWxH] |
| LM100-135W | LDPE & PP | BOPP, BOPET, CPP, Alum Foil | Ø100mm | 32/1 | 800~1300mm | 0.012~0.04mm | 200 m/min | 250 kg/hr | 8.93m x 18.7m x3.6m |
