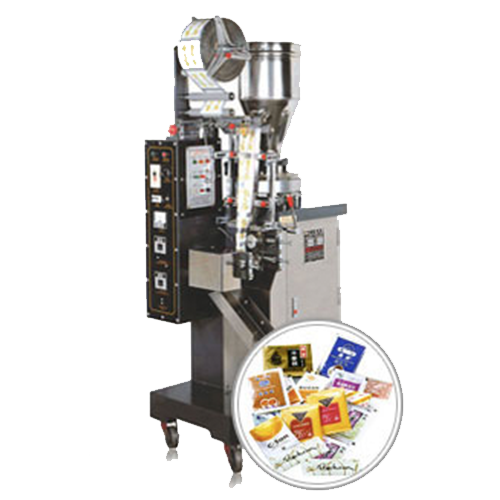

AUTOMATIC QUANTITATIVE FILLING AND PACKAGING MACHINE

Classification : product
Country: Taiwan
Phone: 886-5-268-8619
Fax: 886-5-268-8729
Contact Person: Dabby Wu
Inquiry Now
Packaging type(One option only) 3 sides sealing, 4 sides sealing or pillow type packaging
Packaging weight 1-60g (varies with product density)
Packaging size Packing film width (W)40-160mm or 80-240mm (L) 50-110mm or 70-180mm (Other size are available upon request)
Packaging speed About 20-100 bags/min
Motor 1/4 HP (Main drive)
Power supply 110/220V, 50/60HZ single phase (can be made upon request)
Heater 200W x 2pcs (Vertical)
300W x 2pcs (Horizontal)
Machine dimensions (L x W x H) 75 x 60 x 175 cm
Packing dimensions (L x W x H) 90 x 80 x 200 cm
Net weight 300 kgs
Gross weight 380 kgs
  • Photo-cell controlled, ensure extremely accurate bag forming, sealing and cutting performance.
  • This unit can perform either three sides sealing, four sides sealing or pillow type packaging.Specify desired packing choice when ordering.
  • Equipped with a product counting device.
  • All components in direct contact with the product are made of stainless steel, conforming to sanitary standards.
  • Convenient package size & packing speed are adjustable. Adjustment can be made while the machine is running.
  • The entire procedure from weighing, bag forming, filling and sealing to cutting and packaging is fully automatically operated.
  • Machines can be made to customers' own specifications on request
