Classification : Sealing Machine
Country: Taiwan
Phone: 886-2-22994281
Fax: 886-2-22994284
Contact Person: Mr. Angus Wu
Monitor screen for easy operation.
Imported hot air patent can make sealing fast and blazonry.
Tubes orientation automatically.
Cutting tail automatically after sealing.
No sealing if no tube.
Tube tail is durable after being sealed.
Main motor: 1 HP
Hopper capacity: 60 L
Filling speed: 20~40 pcs/min
Filling capacity: 3~200 gm
Tube dia range: Ø19~60 mm
Tube length: 50~200 mm

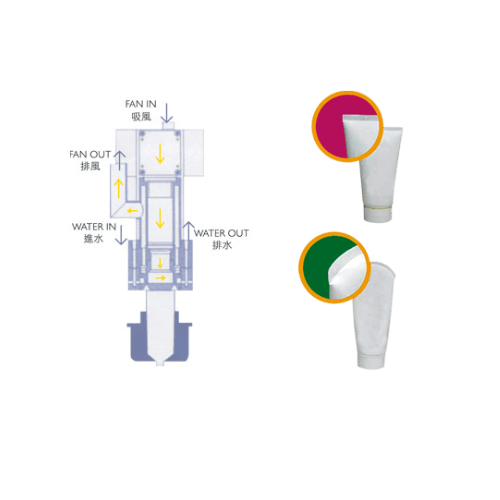

Heater: hot air
Hot air head: 3 kw
Rotation type, sealing, date & lot number one time marking.
Air consumption: 400 L/min
Power consumption: 5.7 kw
Machine size: 1400 x 1400 x 2400 mm
Total net weight: approx. 810 kg
PLC: Fatek
