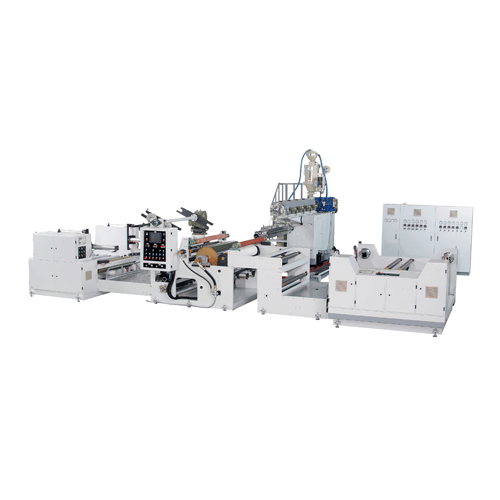

Extrusion Lamination Machine For Sandwich Type

Classification : Extrusion Lamination Machine For Sandwich Type
Country: Taiwan
Phone: 886-6-5920556
Fax: 886-6-5920558
Contact Person: Ellen Liao
● This machine is applicable for woven, non-woven, stone paper etc.
● It is also equipped with a sandwich unwinder for BOPP.
● Unwinder adopts magnetic powder brake and auto tension control.
● Winder adopts four roller and surface friction type.
● Whole machine is synchronously controlled by PLC programmable, and easily operated through human machine interface.
Model Extrusion material Substrate Vice Substrate Screw diameter Screw L/D Lamination width Lamination thickness Max. Line speed Extrusion output Machine dimensions [LxWxH]
LM90-125 LDPE&PP Woven Fabric BOPP Ø90 mm 32/1 700~1200mm 0.012~0.04mm 100 m/min 150 kg/hr 8.93m x 18.7m x 3.6m
