Signal Transmitter

Classification : Others Products


Country: Taiwan
Phone: 886-2-29101266
Fax: 886-2-29159434
Contact Person:
Others ProductsARICO - The Best Solution Of Others Products
ARICO Technology and worldwide's rubber and plastic injection industry manufacturers have cultivated a long and stable co-operation relationship between us for many years. We was founded in 1987, base on sophisticated manufacturing technology, and focus on the research and development and innovation of industrial control instrument technology. We are not only good at producing customized precision Others Products and related application equipment, but also provides high-quality Others Products with the most convenient setting mechanism, stable quality, at a reasonable price to manufacturers in Taiwan, China, the United States, India, Argentina, Israel, Mexico, Thailand, Malaysia, Southeast Asia and other countries. In addition to accumulating and stabilizing partners for related instruments with Others Products, ARICO continues to conduct research and development in order to provide more stable and efficient machine stability, just for achieving a higher efficiency and stable instrument technology level on temperature control, displacement sensing, pressure sensing, injection molding machine IoT on rubber and plastic industry.

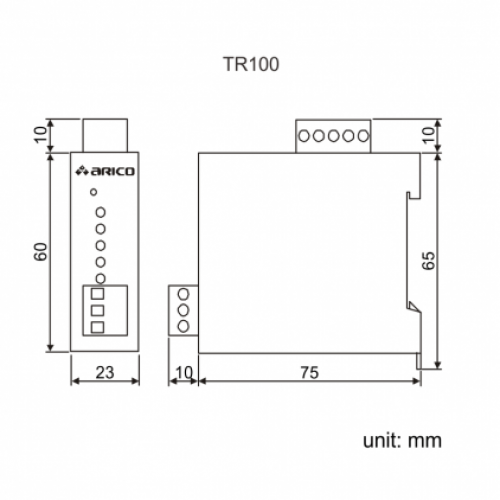

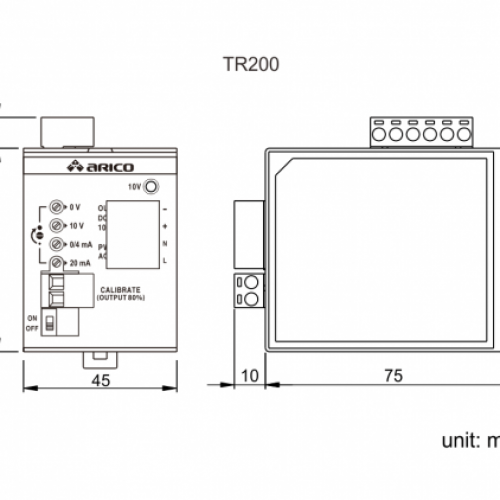

TR100 TR200
Power Supply 24VDC±10% AC 86V~264V  50/60Hz
wrong polarity protection, grounding isolation
Power Dissipation <2.5 W <4 W
Input 3 terminal linear 1K~100KΩ potentiometer sensors 0~33.3mV
Output 0~10V (non-linearity:<0.02% Full scale), 0~10V (non-linearity:<1% Full scale),
0/4~20mA (non-linearity:<0.03% Full scale) 0/4~20mA (non-linearity:<1% Full scale)
Accuracy ±0.1% Full scale ±1% Full scale ( at 23°C)
Reaction Time <100ms <100ms
Working Temperature 0~50°C 0~50°C
Storage Temperature -20~70°C -20~70°C
Humidity 0~90% RH non-condensing 0~90% RH non-condensing
Weight 80g (including connector) 100g (including connector)
Mounting DIN-35mm rail DIN-35mm rail
