ARICO - The Best Solution Of AR Series - External Expansion Module
ARICO Technology and worldwide's rubber and plastic injection industry manufacturers have cultivated a long and stable co-operation relationship between us for many years. We was founded in 1987, base on sophisticated manufacturing technology, and focus on the research and development and innovation of industrial control instrument technology. We are not only good at producing customized precision AR Series - External Expansion module and related application equipment, but also provides high-quality AR Series - External Expansion module with the most convenient setting mechanism, stable quality, at a reasonable price to manufacturers in Taiwan, China, the United States, India, Argentina, Israel, Mexico, Thailand, Malaysia, Southeast Asia and other countries. In addition to accumulating and stabilizing partners for related instruments with AR Series - External Expansion module, ARICO continues to conduct research and development in order to provide more stable and efficient machine stability, just for achieving a higher efficiency and stable instrument technology level on temperature control, displacement sensing, pressure sensing, injection molding machine IoT on rubber and plastic industry.

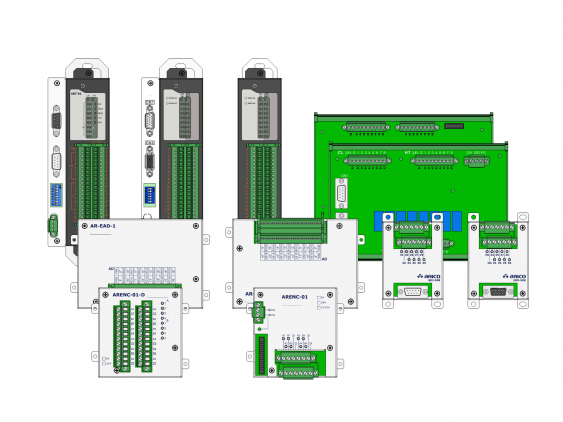

Expansion module AR1260 (NPN) AR2000 (NPN) AR2010 (NPN) AR2100 (PNP)

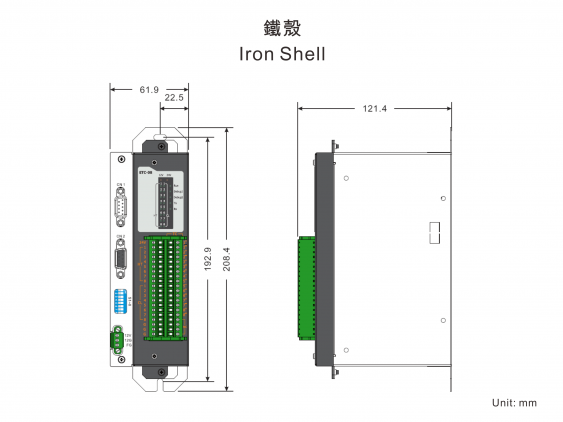

HMI Temperature Module(Iron shell)

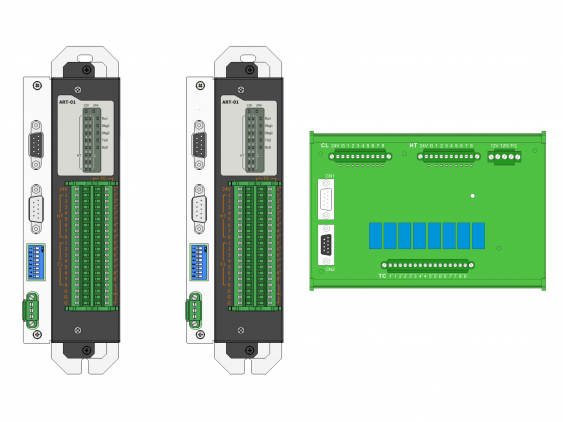

Temperature Module(Plastic shell)
Controller 16*D/I & 16*D/O Board(Iron shell)
16*D/I & 16*D/O Board(Plastic shell)

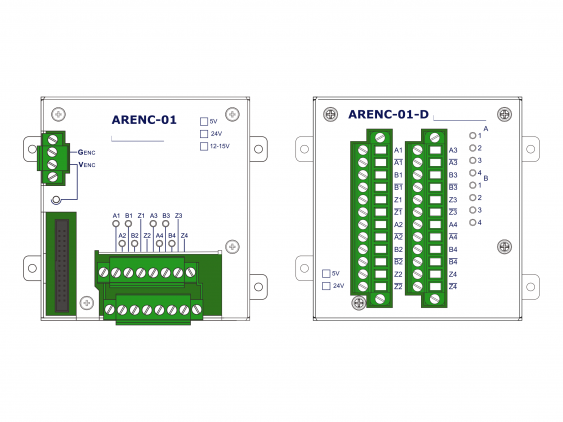

4 Channels Encoder Module

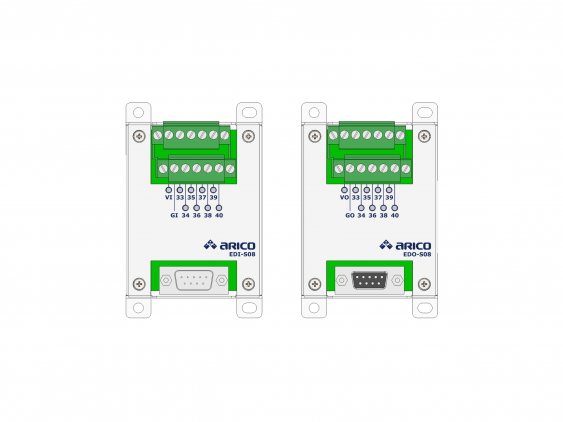

8*D/I & 8*D/O Module

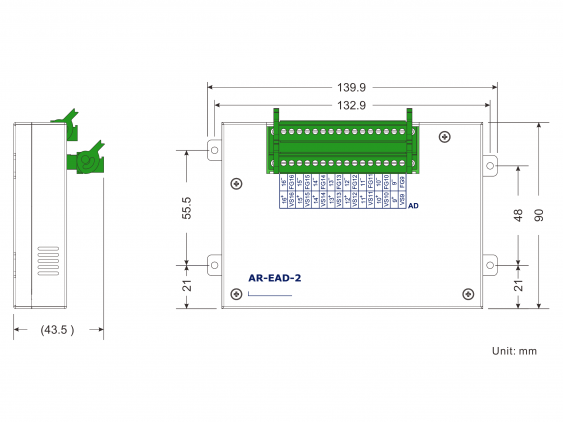

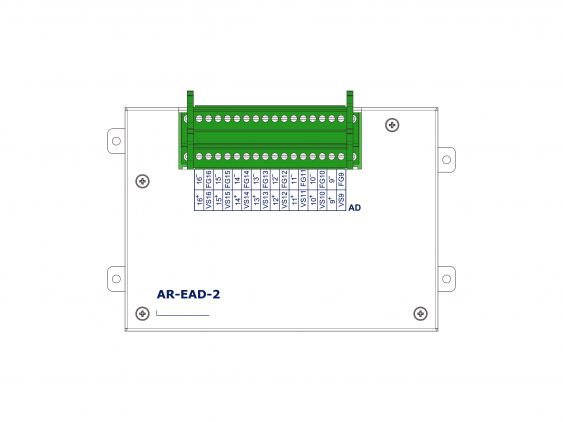

A/D External Expansion module

Specifications Temperature Expansion Module(Iron shell-NPN) Temperature Expansion Module(plastic shell-NPN) Temperature Expansion Module(plastic shell-PNP)
System Voltage 12VDC/150mA 12VDC/150mA 12VDC/150mA
Load Output Voltage 24VDC 24VDC 24VDC
Power Consumption 1.8W 1.8W 1.8W
Heater/Cooling Output NPN NPN PNP
Temperature IN 8 zones 8 zones 8 zones
Communication Mode RS485 RS485 RS485
Heater the max output current 400mA 400mA 400mA
Cooling the max output current 400mA 400mA 400mA
Output short circuit protection X Only Heater X
The max Extend module 15 modules(MAX=120) 15 modules(MAX=120) 15 modules(MAX=120)

Specifications D/I & D/OExpansion Board D/I & D/OExpansion Board D/I & D/OExpansion Board
(Iron shell-NPN) (plastic shell-NPN) (plastic shell-PNP)
Input Power 24VDC 24VDC 24VDC
DI/DO Connection NPN NPN PNP
DI/DO Quantity 16D/I & 16D/O 16D/I & 16D/O 16D/I & 16D/O
The max output current 2A 2A 2A
the max Extend module 12 modules(MAX=192) 12 modules(MAX=192) 12 modules(MAX=192)



  • DC0~10V input
  • 16-bit resolution
  • 8 channels
