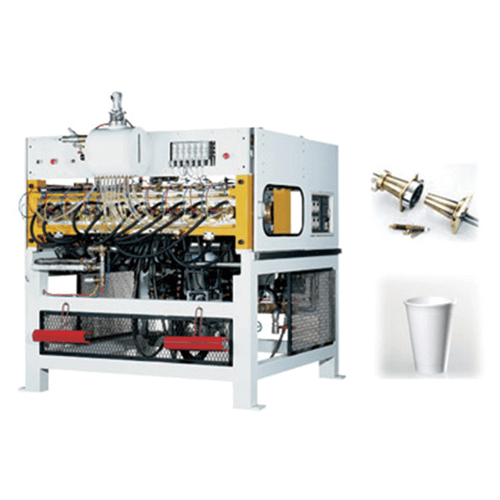

EPS Foam Cups Steam Chest Molding Systems

Classification : EPS Foam Cups Steam Chest Molding Systems

Country: Taiwan

Phone: 886-4-8534810

Fax: 886-4-8534847

Contact Person: Kenny Tan

MODEL	EP-200
Products	Coffee or Tea Cups; Ice Cream or Instant Noodle Tubs
Materials	EPS Beads
Forming Type	Steam Pressure / Injection
Cavities	8~10
Cup’s Density	0.045 ~0.1 g/cm3
Platen movement	Horizontal
Drive	Pneumatic Toggle System
Product Height	44 ~ 220mm
Product Dia.	65 ~150mm
Valve	GEMU; SCHUBERT; SALZER
System control	PLC with touch screen control
Cups productivity	2,500 ~ 5,000 cups/hr per machine
Electric consumption	10 ~15 kW
Steam consumption	150 ~ 200 kg/hr 8 bar
Air consumption	1 M³/Min. 7 bar
Cooling Capacity	500kW per machine
Space requirement	1,000 m²
