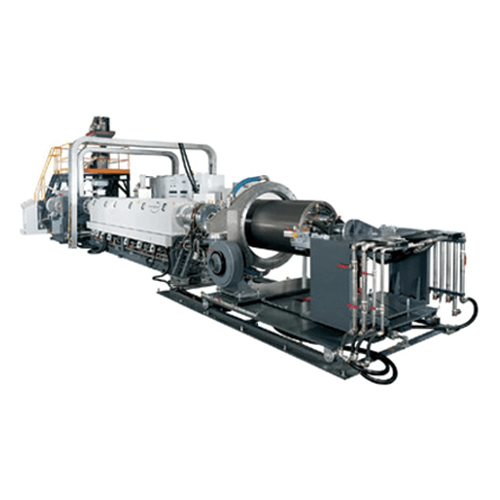

Classification : EPS / EPE Foam Sheet Extrusion Lines
Country: Taiwan
Phone: 886-4-8534810
Fax: 886-4-8534847
Contact Person: Kenny Tan
MODEL | FEX90120 | FEX100130 | FEX120150 | FEX150200 |
Material | EPS; EPE; EPP | EPS; EPE; EPP | EPS; EPE; EPP | EPS; EPE; EPP |
Thickness (mm) |
EPS: 0.6 ~ 5 EPE: 0.8 ~ 6 EPP: 0.8 ~ 4 |
EPS: 0.8 ~ 5 EPE: 1 ~ 10 EPP: 1 ~ 4 |
EPS: 1 ~ 5 EPE: 2 ~ 12 EPP: 1 ~ 4 |
EPS: 1 ~ 5 EPE: 2 ~ 12 EPP: 1 ~ 4 |
Width (mm) | 700~2,000 | 1,000~2,400 | 1,500~3,000 | 1,500~3,000 |
Output (kg/h) |
EPS: 300 EPE: 220 EPP: 240 |
EPS: 450 EPE: 350 EPP: 380 |
EPS: 650 EPE: 480 EPP: 530 |
EPS: 900 EPE: 700 EPP: 750 |
Density (kg/M3) |
EPS: 35 ~ 250 EPE: 17 ~ 30 EPP: 35 ~ 250 |
EPS: 35 ~ 250 EPE: 17 ~ 30 EPP: 35 ~ 250 |
EPS: 35 ~ 250 EPE: 17 ~ 30 EPP: 35 ~ 250 |
EPS: 35 ~ 250 EPE: 17 ~ 30 EPP: 35 ~ 250 |
Extruder Type | Tandem | Tandem | Tandem | Tandem |
Screw dia. (mm) | 90 and 120 | 100 and 130 | 120 and 150 | 150 and 200 |
L/D | 34/1 and 32/1 | 34/1 and 32/1 | 34/1 and 32/1 | 34/1 and 32/1 |
Blowing agent | LEWA Triple Diaphragm Pump - Hydrocarbon | LEWA Triple Diaphragm Pump - Hydrocarbon | LEWA Triple Diaphragm Pump - Hydrocarbon | LEWA Triple Diaphragm Pump - Hydrocarbon |
Drive System | SIEMENS AC Drive with FLENDER Gearbox | SIEMENS AC Drive with FLENDER Gearbox | SIEMENS AC Drive with FLENDER Gearbox | SIEMENS AC Drive with FLENDER Gearbox |
Barrel material | Bimetallic | Bimetallic | Bimetallic | Bimetallic |
Cooling system | Air Cool for Primary; Proportional Motorized Water Cool for Secondary | Air Cool for Primary; Proportional Motorized Water Cool for Secondary | Air Cool for Primary; Proportional Motorized Water Cool for Secondary | Air Cool for Primary; Proportional Motorized Water Cool for Secondary |
Winder | Programmable Tension Control; 300mm Core 2,000mm Winding Dia | Programmable Tension Control; 300mm Core 2,000mm Winding Dia | Programmable Tension Control; 300mm Core 2,000mm Winding Dia | Programmable Tension Control; 300mm Core 2,000mm Winding Dia |
Floor Space | 25L x 6W x 5H M | 33L x 6W x 5H M | 35L x 6W x 5H M | 37L x 6W x 5H M |
Machine Weight | 18,000 kgs | 22,000 kgs | 28,000 kgs | 34,000 kg |
