Getting Started with PVC Pelletizing Extrusion Lines

PVC pelletizing extrusion lines, often referred to as PVC pelletizing lines or PVC pelletizing machines, are crucial in the plastic manufacturing industry. These machines play a vital role in transforming PVC resin or recycled materials into pellets, which serve as the raw material for creating various plastic products. In this article, we will explore the process of PVC pelletizing, how these machines work, and the importance of PVC pelletizing equipment in the industry.

PVC Pelletizing Extrusion: Core Principles Explained

PVC pelletizing extrusion is a widely used process in the plastics industry to produce PVC pellets for various applications, including molding, injection molding, and other plastic products. Here's a breakdown of how a typical PVC pelletizing extrusion line operates:

• Raw Material Preparation:

  The process begins with preparing the raw PVC material. A PVC compound is created by carefully blending PVC resin, plasticizers, and other additives in precise amounts. The quality and composition of this compound directly affect the final characteristics of the PVC pellets.

• Feeding System:

  Once prepared, the PVC compound is fed into the pelletizing extrusion line. This is typically done using a hopper or feeding system that ensures a consistent and steady flow of material into the extruder.

• Extrusion:

  The extruder is the core component of the PVC pelletizing line. Inside the extruder, a rotating screw housed in a heated barrel applies heat and pressure to the PVC compound. As the compound moves through the barrel, it melts into a uniform, homogeneous mass.

• Die and Cutting System:

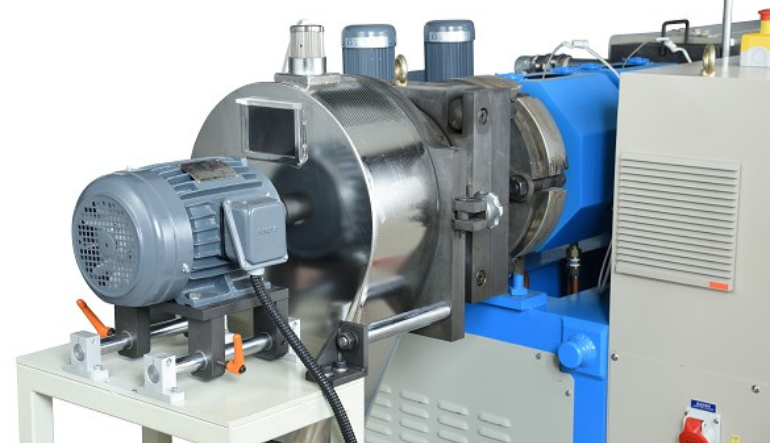

  After extrusion, the molten PVC is shaped into pellets using a die and cutting system. The die, a specially designed mold, shapes the molten PVC into the desired size and shape of the pellets. The cutting system then slices the material into pellets as it exits the die. A common type of cutting system used in PVC pelletizing is the die face cutting system, where synchronized rotating knives cut the material into pellets at high speed, ensuring efficient and continuous pellet production.

• Cooling:

  Freshly cut PVC pellets are hot and must be cooled quickly to solidify. Cooling methods vary depending on the PVC formulation and desired pellet properties, with air cooling and water cooling being common options. Vibration coolers, a type of air cooler, use vibration to enhance cooling efficiency by breaking the air boundary layer around the pellets, allowing for faster heat transfer and reduced cooling time.

• Pellet Collection and Storage:

  After cooling, the PVC pellets are collected and conveyed to a storage or packaging area. They may pass through a vibrating screen or other equipment to remove dust or fines, ensuring the quality of the final product.

Each stage in the PVC pelletizing process is crucial for producing high-quality PVC pellets tailored to the needs of various industries and applications. Utilizing advanced machinery, such as twin-screw PVC pelletizing extrusion lines, enhances the process's efficiency and consistency.

The Essential Component : Extruders in PVC Pelletizing Extrusion Lines

A central element of the PVC pelletizing extrusion line is the extruder. This implement plays a key role in plasticizing PVC material within the assembly line. When it comes to extruders, we typically encounter two main types - single screw extruders and twin screw extruders.

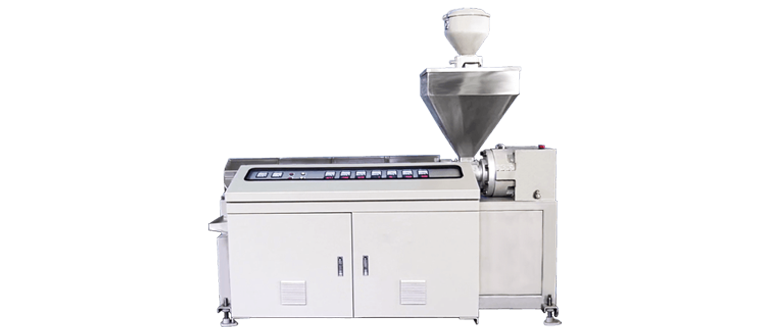

• Single Screw Extruders:

  As the most prevalent variant in PVC pelletizing extrusion lines, single screw extruders are straightforward and cost-effective. However, in terms of efficiency, they may not always match up to their twin screw counterparts.

• Twin Screw Extruders:

  Though more complex and financially demanding than single screw extruders, twin screw extruders present several clear benefits. These include increased production capacity, enhanced mixing, and the production of more uniform pellets.

Depending upon the specific requisites of the processing activity and the material involved, the choice between single screw and twin screw extruders is made. Each type provides its individual advantages, making the extruder a dynamic and adaptable component of the PVC pelletizing extrusion line.

The Role of Twin Screw Extruders in PVC Pelletizing Extrusion

Twin screw extruders serve as pivotal components in the PVC pelletizing extrusion process. These machines melt, mix, and homogenize various materials, including PVC resin, additives, and fillers. Beyond these tasks, twin screw extruders consistently generate a homogeneous extrudate, simplifying the pelletization process.

Here's an in-depth look into the specific functions of the twin screw extruder within the PVC pelletizing extrusion:

• Melting:

  The twin screws rotate and create friction, which helps to melt the PVC resin. The screws also have channels that allow the heat from the barrel to be transferred to the resin.

• Mixing:

  Interlocking twin screws initiate a mixing motion crucial in dispersing additives and fillers evenly throughout the resin. This meticulous distribution ensures the final pellets possess a uniform composition.

• Homogenizing:

  The twin screws also help to homogenize the resin, which means that the temperature and viscosity are evenly distributed throughout the extrudate. This is important for ensuring that the pellets are consistent in size and shape.

Surpassing these primary functions, twin screw extruders boast the versatility to carry out additional operations such as degassing and cooling. These additional capabilities make these machines an all-inclusive solution, applicable in creating a broad spectrum of PVC products.

Advantages of Utilizing Twin Screw Extruders for PVC Pelletizing Extrusion

Choosing a twin screw extruder over a single screw one in PVC pelletizing extrusion has several notable advantages, including:

• Increased Production Capacity:

  Twin screw extruders capably manufacture a large quantity of pellets within a compact timeframe.

• Uniform Pellet Quality:

  The intermeshing of twin screws ensures the resultant pellets' uniformity in quality.

• Energy Efficiency:

  Twin screw extruders are more energy-efficient than single screw extruders.

Factors to Consider When Selecting a PVC Pelletizing Extrusion Line

When selecting a PVC pelletizing extrusion line, there are a number of factors to consider, including:

• Material type and properties:

  Different PVC resins and recycled materials have different properties, so it is important to choose a machine that is compatible with the material you will be using.

• Production capacity:

  The machine you choose should have a production capacity that meets your needs.

• Product quality requirements:

  You should choose a machine that can produce pellets that meet your quality requirements.

• The availability of spare parts and technical support

  It is important to choose a machine that has a good availability of spare parts and technical support. This will ensure that you can keep your machine running smoothly and efficiently.

• The energy efficiency of the machine:

  The energy efficiency of the PVC pelletizing machines can have a significant impact on your operating costs. Choose a machine that is energy efficient to save money on your energy bills.

• The maintenance requirements of the PVC Pelletizing Machine:

  The maintenance requirements of the machine can also vary. Choose a machine that is easy to maintain to save time and money.

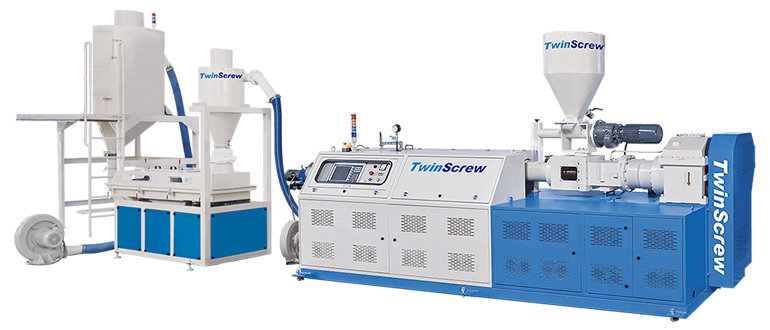

Invest in a High-quality PVC Pelletizing Machines From a Reputable Manufacturer

TwinScrew is a leading provider of plastic pelletizing and compounding solutions. The company offers a comprehensive understanding of the entire process, from raw materials to finished pellets. TwinScrew has a global network and proprietary technologies, and can customize solutions to meet the unique needs of each customer. In addition, TwinScrew has an in-house production of core components for PVC pelletizing extrusion lines. This allows the company to ensure the highest quality and reliability of its products, and to meet the specific requirements of its customers.

TwinScrew : Helping Customers Manufacture High-Value, Low-Carbon Bioplastic Pellets

TwinScrew is a leading provider of renewable bioplastic solutions. We have a deep understanding of users' needs for new eco-friendly materials and a wealth of experience in processing renewable raw materials such as starch or cellulose. TwinScrew's customized pelletizing extrusion systems successfully manufacture bioplastic pellets from these raw materials. These pellets can be easily processed on their own or combined with other polymers to make bioplastic products. In the growing green plastics market, TwinScrew provides end-to-end solutions from raw materials to finished products to help customers manufacture high-value, low-carbon bioplastics. Since 2018, TwinScrew's extrusion and pelletizing systems have been used to manufacture low-carbon, sustainable products using extrusion or injection molding processes. Many of these products have been certified by leading organizations such as DIN CERTCO and successfully launched in the market.

Learn more: TwinScrew’s Bioplastic Solutions Enhance the Carbon Emission-lowering Efficiency

For more information, explore the Twin Screw PVC/PBAT/PBS Pelletizing Machine. Alternatively, reach out today to request a quote and kickstart your PVC Pelletizing Extrusion Line business.
