Classification : CMG Geared Motor
Country: Taiwan
Phone: 886-6-2965396
Fax: 886-6-2965700
Contact Person: Lin Jinli
Product Description

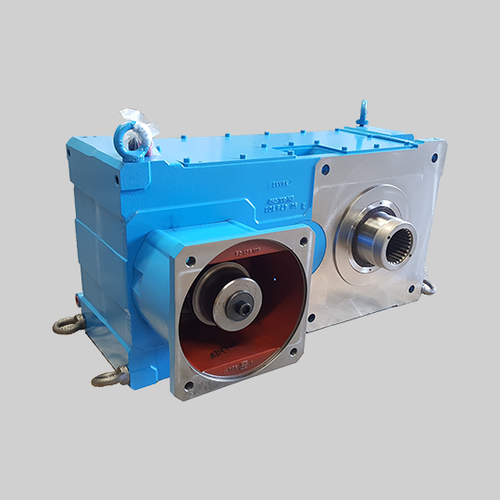

The German supplier developed the new-generation FZ series gearbox specifically for the mixing-drive requirements of injection molding machines.
The modular structure has an extended center distance and a higher-strength housing structure, making it suitable for horizontally suspended motor arrangements. The design provides more installation clearance and avoids collision or interference with other structures. High-strength gears and housing, together with an integrated water-cooling system, are intended to meet customer requirements for long service life.
Product Features
- Speed up to 3,000 rpm
- Extended center distance
- High-strength housing with suspended design
- Low noise
- Adopted by major manufacturers worldwide
Application Market
- Plastics and rubber machinery
Technical Parameters
- Rated torque: 900-60,000 Nm
- Reduction ratio: i = 4-90
- Motor power: 15-500 kW
Torque Table
| Size | Maximum Power (kW) | Rated Torque (Nm) |
|---|---|---|
| 81 | 15 | 900 |
| 121 | 25 | 1,200 |
| 151 | 40 | 2,000 |
| 251 | 65 | 3,000 |
| 501 | 100 | 6,000 |
| 601 | 125 | 8,000 |
| 901 | 150 | 11,500 |
| 1201 | 180 | 15,000 |
| 1601 | 200 | 18,000 |
| 2401 | 250 | 30,000 |
| 3001 | 300 | 38,000 |
| 6001 | 500 | 60,000 |
