Solid State Relay - SB / SV / SY Type

Classification : Solid State Relay

ARICO TECHNOLOGY CO., LTD.

ARICO TECHNOLOGY CO., LTD.
Country: Taiwan
Phone: 886-2-29101266
Fax: 886-2-29159434
Contact Person:
ARICO - The Best Solution Of Solid State Relay
ARICO Technology and worldwide's rubber and plastic injection industry manufacturers have cultivated a long and stable co-operation relationship between us for many years. We was founded in 1987, base on sophisticated manufacturing technology, and focus on the research and development and innovation of industrial control instrument technology. We are not only good at producing customized precision Solid State Relay and related application equipment, but also provides high-quality Solid State Relay with the most convenient setting mechanism, stable quality, at a reasonable price to manufacturers in Taiwan, China, the United States, India, Argentina, Israel, Mexico, Thailand, Malaysia, Southeast Asia and other countries. In addition to accumulating and stabilizing partners for related instruments with Solid State Relay, ARICO continues to conduct research and development in order to provide more stable and efficient machine stability, just for achieving a higher efficiency and stable instrument technology level on temperature control, displacement sensing, pressure sensing, injection molding machine IoT on rubber and plastic industry.

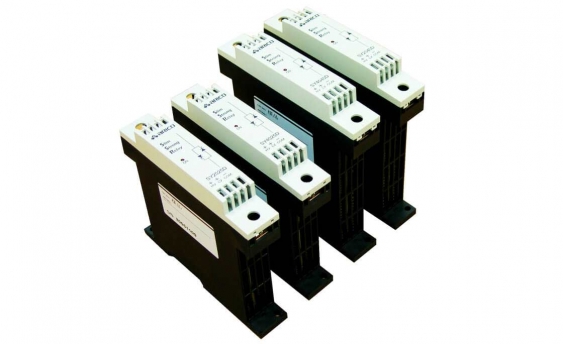

  • 2-Thyristor design, high voltage and current resistance
  • Built-in thermal pad that avoids installation problems or quality concerns
  • Super slim figure that takes minimal space in the frame
  • Photo coupler isolation for IN / OUT, maximum 4000VAC
  • Built-in dv / dt protection
  • 2-Level signal inputs, low current input
  • Designed for injection / extrusion mould, baking oven and experiment furnace


Order Code:

  • SY Order code SY-1-2-3
  • 1:Rated voltage
  •    2----AC 50-280V
       4---- AC 100-500V
  • 2:Rated current
  •    025----Max.25A
       040----Max.40A
  • 3:Input type
  •    D---- 4~30VDC input
       A---- 70~280VAC input

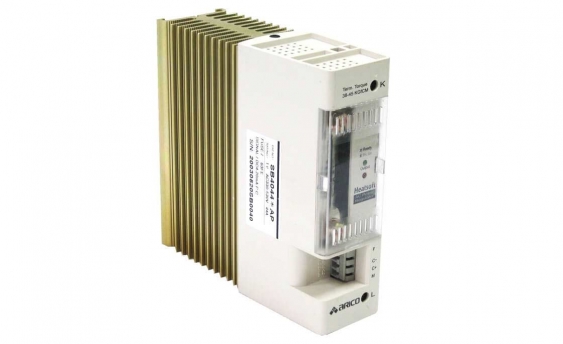

  • Selection of output modes: 1. Phase angle control 2. Phase angle soft start & zero cross working ( world's leading excellent function )
  • Micro-computer digital control with extra high resolution
  • Built - in overheat indicator & protection of cooling fin
  • 2 Thyristor design, high voltage-resistant and high current-resistant
  • Full heat radiating capability allowing 100 % continuous output
  • Built-in fuse protection
  • Super slim figure, saving body's space
  • Secure CE wiring terminal, no need of ring terminals, easy for wiring
  • Selection of 6 input signals: DC4 - 20 mA, 0 - 20 mA, 1 - 5V, 0 - 5V, 2 - 10V, 0 - 10V


Order Code:

  • Heatsoft order code 1-2-3
  • 1:Input signal
  •    SB
  • 2:Rated voltage
  •    1----AC 75-135V
       2----AC 180-260V
       3----AC 260-440V
       4----AC 330-530V
  • 3:Rated current
  •    016----16A
       025----25A
       033----33A
       044----44A
       058----58A

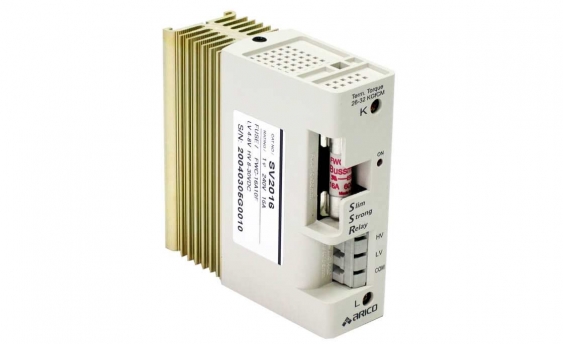

  • 2 Thyristor design, high voltage-resistant and high current resistant
  • Full heat radiating capability allowing 100% continuous output
  • Built-in fuse protection
  • Super slim figure, saving body's space
  • Secure CE wiring terminal, no need of ring terminals, easy for wiring
  • 2-Level of signal inputs, low input current.
  • Extremely convenient, to combine with 2 or 3 sets together to use a 3-phase power


Order Code:

  • Slim tpye order code 1-2-3
  • 1:Input signal
  •    SV----DC4-8V/8-30V
       SW----AC70-140V/140-280V
  • 2:Rated voltage
  •    2----AC 24-280Vrms
       4---- AC 48-560Vrms
  • 3:Rated current
  •    016----16A
       025----25A
       033----33A
       044----44A
       058----58A
