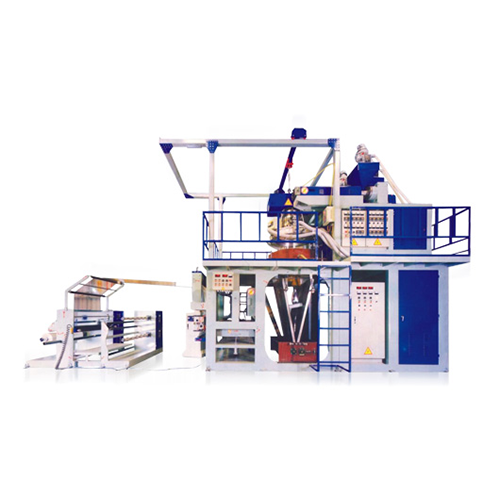

PP Blown Film Machine

PP Blown Film Machine
Classification : Blown Film Machine
DIPO PLASTIC MACHINERY CO., LTD.
DIPO PLASTIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-5-221-7967
Fax: 886-5-221-7996
Contact Person: Eric Kuo
Inquiry Now
Model DP-PP-453L DP-PP-553L
Film Width 200-800mm 400-1000mm
Film Thickness 0.015-0.18mm 0.015-0.2mm
EX Output (Max) 90kg/HR 135kg/HR
Scren Diameter D45mm×3 D55mm×3
L/D Ratio 28：1 28：1
Drive Motor AC10HP AC15HP
Heat Capacity 10KW in 6 Zones 12KW in 6 Zones
Die Diameter D250/300mm D350/400mm
Temp Control 16Zones(SCR) 19Zones(SCR)
Air Cooling Ring and 1SET 1SET
