Classification : BLOWN FILM MACHINE
Country: Taiwan
Phone: 886-6-2027859
Fax: 886-6-203 2789
Contact Person: Mr.Kuo
Inquiry Now
Film width 2000 ~ 4000mm, for general packing and agricultural Hutch.
Heavy duty construction, take up tower.
Automatic surface winder with uploading device.

Swing type manual screen changer.

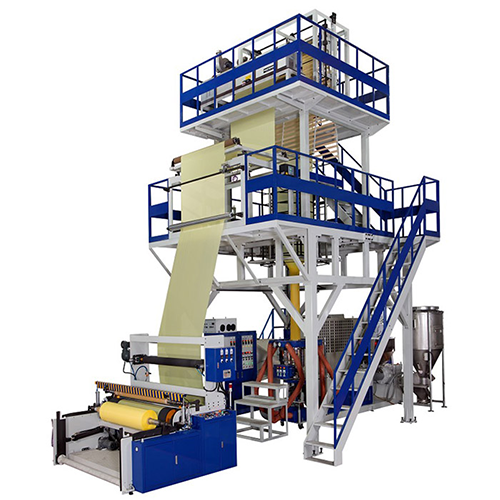

  • LDPE / LLDPE Heavy Duty Big Size Blow Film Machine.
  • Screen changer of swing manual type.
  • Extruding die of single spiral channel gives even and smooth flow pressure, Air ring of dual orifice design ensures ultimate cooling.
  • Heavy duty steel structure takes up tower.
  • EPC (Edge Position Controller)
  • Fully automatic big roll type single winder or back to back auto winder.

MODEL FB80 FB100 FB120 FB150
Applicable Material HDPE / LDPE / LLDPE
Screw Dia. (mm) Φ80 Φ100 Φ120 Φ150
Max. Film Width (mm) 2000 2500 3000 4000
Max. Output 250 kg/hr 330 kg/hr 440 kg/hr 550 kg/hr
Screw L/D Ratio 28:01:00 28:01:00 28:01:00 28:01:00
Main Motor (w/ Inverter) 100 HP 150 HP 200 HP 300 HP

* Specifications are subject to change without notice.
