Extrusion Blow Molding Machine PK-40 (Pneumatic System)

Classification : Extrusion Blow Molding Machine

PARKER PLASTIC MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-23396828

Fax: 886-4-23394679

Contact Person: Sanni Yang

Inquiry Now

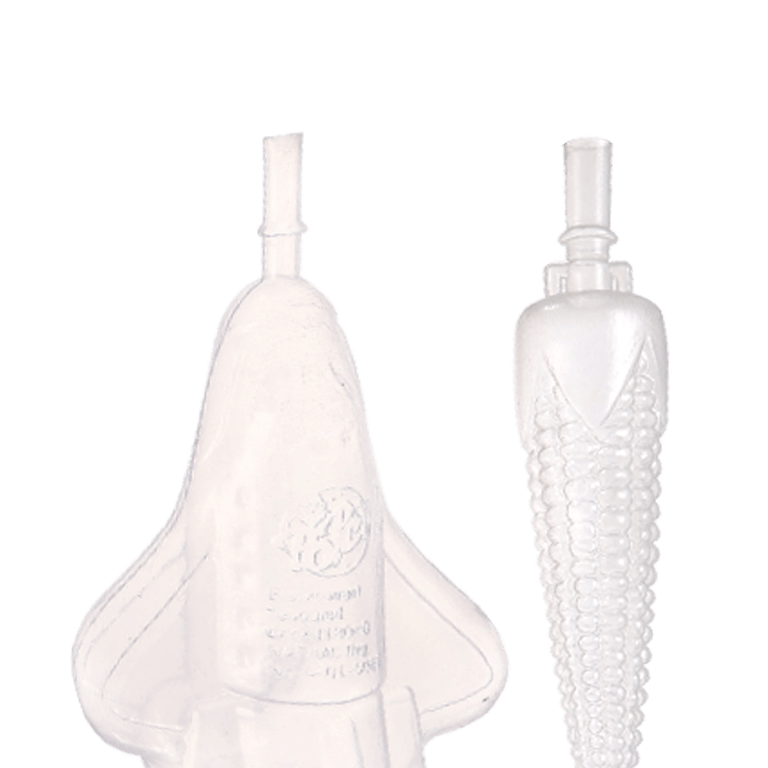

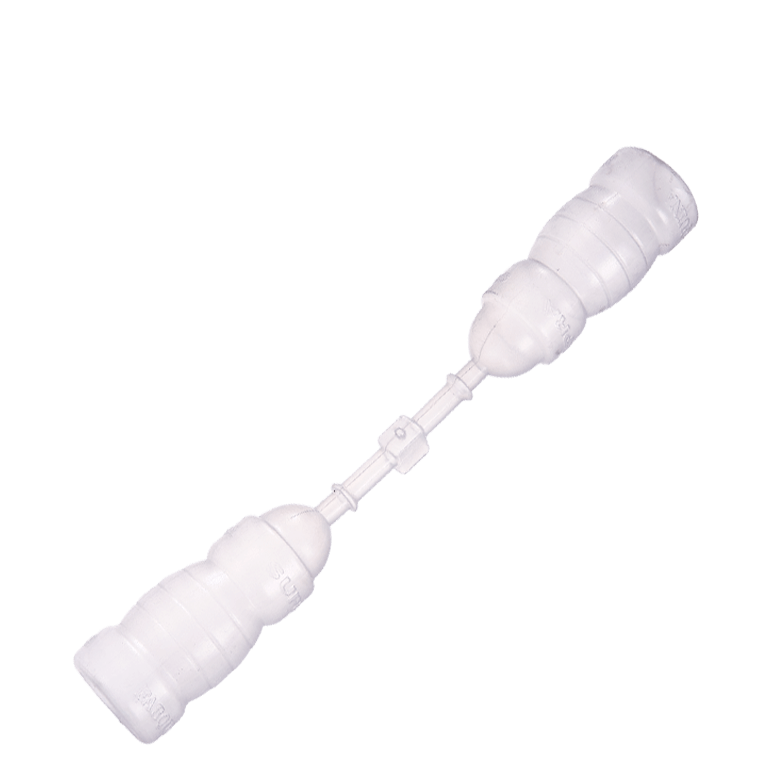

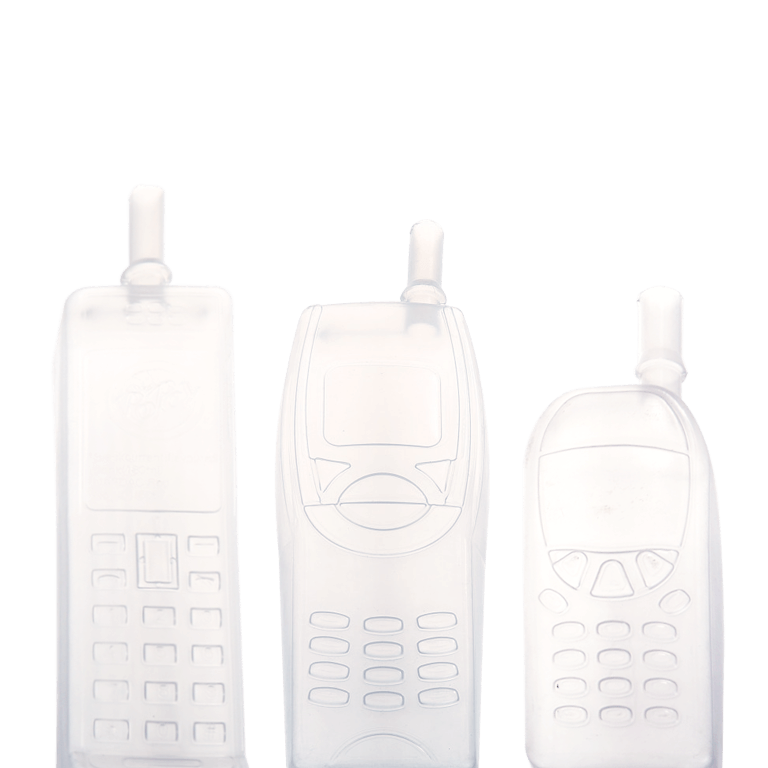

This type is pneumatic-clamping blow molding machine, suitable for making bong bong ice & small-size bottles.
The economical, efficient models are excellent for producing small containers.
High plasticizing capacity extrusion screw is designed to handle material variations.
Plasticizing screw and barrel is precision machined from special nitrogen treated steel.
Water cooling technology controls feed zone temperature.
Chiller circulated hydraulically controlled blow-pin.
Pneumatically operated automatic deflashing unit. (Available with PK40E only)
When requiring both functions in a single machine, purchase the machine for PVC application and order the additional parts for conversion to PE application.

MODEL	UNIT	PK40		PK40E
Material To Be Used		PE/PP	PVC	PE/PP	PVC
PRODUCT
Product Volume (Min/Max)	cc	20-300		20-300
Product Dia. (Min/Max)	mm	10-80		10-80
Product Max. Weight	g	35		35
EXTRUDER
Screw Diameter	mm	40		40
L / D		1:22		1:22
Screw-speed Range (PE/PP)	RPM	70		70
Screw-speed Range (PVC)	RPM	50		50
Extruding VS Motor	HP	5		5
Max. Extruding Output/Per Hour	kgs	15		15
Barrel Heating Zone	zone	2		2
Barrel Heating Capacity	kw	2.7		2.7
DIE HEAD
Heating Zone	zone	1		2
Heating Capacity	kw	1		1.5
MOLD PLATEN
Max. Opening Stroke	mm	230		230
Min. Claming Stroke	mm	60		60
HYDRAULIC SYSTEM
Total Power Consumption	kw	8.5		8.5
Machine Weight	Ton	1.1		1.3
Packing Size (L x W x H)	inch	83"x50"x61"		83"x50"x76"
Machine Meas't	M³	5		5
