Hydraulic Servo Energy Saving System

Classification : Industrial automation products

TECHMATION CO., LTD.

TECHMATION CO., LTD.
Country: China
Phone: 886-2-2218-1686
Fax: 886-2-2218-1766
Contact Person: Dragon


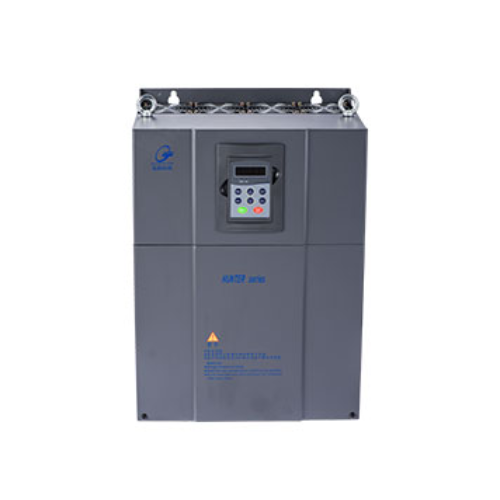

ID680 Series driver

Product feature:

1. Equipped with LED operation panel to make debugging and maintenance more convenient and quick;
2. More convenient matching of high and low level of I/O logic;
3. Direct current reactance is built into specifications above 37KW to reduce the driving failure rate caused by grid distortion

Parameter Specification

Product specifications
Product Model Input Voltage/V Output Power/kw Rated Current/A
1BX_ID680K1F3 Three-phase 11 25
1BX_ID680K5F3 390~480 15 32
1BX_ID680K8F3 (±10%) 18.5 37
1BX_ID680J2F3   22 45
1BX_ID680I0F3   30 60
1BX_ID680I7F3   37 75
1BX_ID680H5F3   45 91
1BX_ID680G5F3   55 112
1BX_ID680E5F3   75 150
1BX_ID680C0F3   93 176


Technical Parameters
Functional description Specification indexes
Power input Input voltage(V) AC  3PH  220V~480V
Incoming current(A) Please refer to the rating
Incoming frequency(Hz) 50Hz or 60Hz, allowable frequency range is between 47~63Hz
Power output Output voltage(V) 0~480V
Output voltage(A) Please refer to the rating
Outcoming frequency(KW) Please refer to the rating
Control performance Maximum output frequency 300Hz
Control method Close Vector loop
Motor type Permanent-magnet synchronous motor
Control mode Injection molding machine mode, speed mode
Pressure instruction type Analog instruction (DC0~10V)
FDEM Analog instruction (DC0~10V)
Peripheral interface Analog input 3 ways,DC0~10V
Analog output 2 ways,DC0~10V
Digital switching quantity input 5 ways,Maximum frequency1kHz, Internal impedance:3.3kΩ;
Relay output 3 ways(1st way open/close, 2nd way open)
Contact capacity:3A/AC250V,1A/DC30V
Defensive function 19 kinds of fault protection functions: over current, over voltage, under voltage, over temperature, phase loss, overload and other protection functions
Communicating function RS485,maximum 32 nodes; CAN communication, maximum 255 nodes
Others Installation Wall mounting and flange mounting are supported
Operating ambient temperature -10~50℃, derating over 40℃
Level of protection IP20
Cooling mode Forced cooling
Operation place
Altitude
Temperature
Vibration
Storage temperature




DE688 Series driver

Product feature:

1. Realize linkage, quick switching with follow, and coexistence of multiple control modes;
2. Using NET/CAN and other communication methods to establish digital communication with the upper computer, the control is more accurate and the operation is more convenient.
3, with short circuit, over current, over voltage, under voltage and other protection functions.
4. Communicate with servo through NET, change driver parameters through HMI interface, or debug or repair through mobile phone APP software.



Parameter Specification

Product specifications
Product Model Input Voltage/V Output Power/kw Rated Current/A
1BX_DE688K1F3 Three-phase 11 25
1BX_DE688K5F3 390~480 15 32
1BX_DE688K8F3 (±10%) 18.5 37
1BX_DE688J2F3   22 45
1BX_DE688I0F3   30 60
1BX_DE688I7F3   37 75
1BX_DE688H5F3   45 91
1BX_DE688G5F3   55 112
1BX_DE688E5F3   75 150
1BX_DE688C0F3   90 176


Technical Parameters
Functional description Specification indexes
Power input Input voltage(V) Three-phase 380 v; The voltage keeps fluctuating by plus ±10%
Incoming current(A) Please refer to the rating
Incoming frequency(Hz) 50Hz or 60Hz, allowable frequency range ±5%
Power output Output voltage(V) 0~380V
Output voltage(A) Please refer to the table above
Outcoming frequency(KW) Please refer to the table above
Control performance Maximum output frequency
Control method Vector control
Motor type Permanent-magnet synchronous motor
Control mode Permanent-magnet synchronous motor
Pressure instruction type Analog instruction (DC0~10V)
FDEM Analog instruction (DC0~10V)
Peripheral interface Analog input 3 ways,DC0~10V
Analog output 2 ways,DC0~10V
Digital switching quantity input 6 ways
Relay output 6 ways
Defensive function Short circuit protection, over current protection, over voltage protection, under voltage protection, over temperature protection, overload protection
Communicating function CAN communication,E_NET
Others Installation Wall mounting and flange mounting are supported
Operating ambient temperature -10~50℃, derating during 40℃~50℃
Level of protection IP20
Cooling mode Forced cooling
Operation place Indoor, without direct sunlight, no dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt, etc
Altitude Lower than 1000 meters and lower than 1000 meters, the amount of reduction shall be 1% for each increase of 100 meters
Temperature 5%~95%RH, no condensation
Vibration <4.9m/s2(0.5G)
Storage temperature -40℃~+70℃

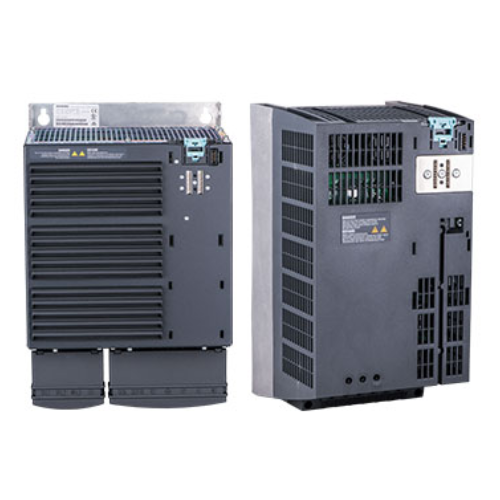

SIEMENS Series Drivers


Siemens Drivers:
Include control unit CU305, the encoder conversion module SMC10 and the power module PM340;


Control unit module CU305 CAN  Function:
Uniaxial servo controller with PM340 power module.


Encoder conversion module set SMC10  Function:

When the motor does not have drive-cliq interface and USES a third-party servo motor, SMC10 module is required.



Modular PM340 power module:



Product feature:

1. Control module and power module adopt split control, which is easier to maintainfloat:
2, set vector control and servo control in one, to achieve a variety of control mode free switching
3. CAN communication and upper computer are used to realize digital communication, and the control is more accurate
4. BOP operation panel makes debugging and maintenance convenient and quick

Parameter Specification

Product specifications
Product model Output Power Rated current/A
 /Kw
6SL3210-1SE21-8UA0 7.5 18
6SL3210-1SE22-5UA0 11 25
6SL3210-1SE23-2UA0 15 32
6SL3210-1SE23-8UA0 18.5 38
6SL3210-1SE24-5UA0 22 45
6SL3210-1SE26-0UA0 30 60
6SL3210-1SE27-5UA0 37 75
6SL3210-1SE31-0UA0 45 90
6SL3210-1SE31-1UA0 55 110
6SL3210-1SE31-5UA0 75 145
6SL3210-1SE31-8UA0 90 178

Technical Parameters
Functional description Specification index
Power input Input voltage 3 AC 380~480 V ±10%(-15% < 1 分钟)
 (PM340)  (V)
  Input current Please refer to the rating
   (A)
  Input frequency 47~63 Hz
   (Hz)
Power output Output voltage 0~480V
 (PM340)  (V)
  Output current Please refer to the rating
   (A)
  Output Power Please refer to the rating
   (KW)
Control performance Control Method Open-loop vector control
 (CU305) Motor type Permanent magnet synchronous motor
  Control mode Servo mode, vector mode, V/F control
  Flow instruction type Analog instruction (DC 0~10V或±10V)
Peripheral interface CU305 DRIVE-CLIQ interface
PM-IF interface
BOP20 rabbet
CAN bus
Channel encoder interface
Analog input channel
Digital input
Digital output
RS232 interface
MMC SD
Temperature sensor interface
SMC10 DRIVE-CLiQ interface
Encoder Interface
Protection function Over current, over pressure, under pressure, over temperature, phase loss, overload, etc
Communicating function(CU305) CAN communication  RS232communication
Others(PM340) Installation Wall mounting and flange mounting are supported
Operating ambient temperature 0~40ºC,keep the capacity;> 40~55ºC,see the capacity curve
Level of protection IP20
Cooling mode Forced cooling is used in the power part
Operation place Indoor, without direct sunlight, no dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt, etc
Altitude Lower than 1000 meters and lower than 1000 meters, the amount of reduction shall be 1% for each increase of 100 meters
Temperature 5%~95%RH, no condensation
Vibration <4.9m/s2(0.5G)
Storage temperature -40℃~+70℃

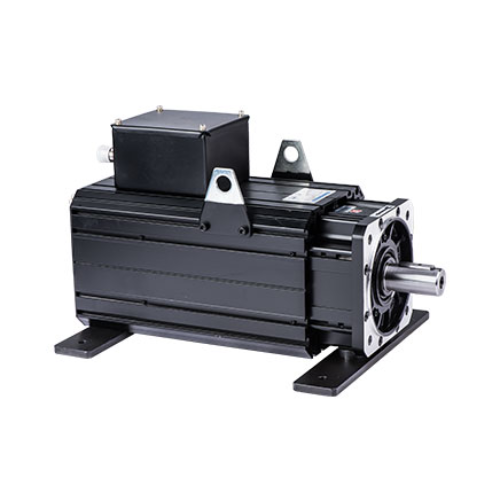

PHASE Series Motors


Products features:

A) rotor module buckle sleeve design of permanent magnet rotor assembly with patented design technology ensures the mechanical fixation of magnetic steel without adhesive, greatly improves the production efficiency, protects the key health of production workers, eliminates the environmental pollution caused by glue, and ensures that magnetic steel is not thrown out of the motor at extremely high speed. Magnetic steel with high density, high temperature resistance of ndfeb rare earth material, to ensure the motor small size, large torque, high temperature resistance, compared with the use of ferrite, cobalt and other materials of magnetic steel, data shows that the use of ndfeb material of magnetic steel thermal stability, high temperature resistance, corrosion resistance than other materials are much better;
 B) rotor module cup-shaped hollow design with patented design technology greatly reduces the inertia of motor rotor and improves the response speed of servo motor, especially suitable for occasions with high response frequency requirements such as injection molding machine and military artillery system;
 C) the front and rear bearings of the motor adopt SKF bearings with high precision and low friction imported from the original installation, which ensures that the motor can operate for up to 10 years without mechanical failure without maintenance. Meanwhile, compared with NSK and other bearings, SKF bearings are superior in terms of wear resistance and small bearing clearance.
 D) feishi air-cooled servo motor series products are all standard EBM fans imported from Germany, which have the advantages of stable operation, large air volume, long life, good quality and so on, ensuring the overall operation of the servo motor is stable and reliable.

PHASE motor types

Rated Torque/Nm

Rated speed/Rpm

Rated current/A

Pated power/

Kw


  • Torque constant


Nm/A
inertia (Kgm2) Pole-pairs
665PA1FB
38.9 2000 18.8 8.7 2.37 0.005 4
665PA2FB
58 2000 24.3 12 2.6 0.007 4
665PA4FB
87 2000 36.7 18.2 2.53 0.009 4
665PA6FA
122 1800 44 23.00 2.9 0.013 4
665PA6FB
135 2000 60.5

28.3

2.37 0.013 4
665PB1FA
165 1800 57.5 31.3 2.87 0.016 4
665PB1FB
175 2000 73.7 36.6 2.53 0.016 4
665PB2FI
195 1700 72.9 35.9 2.98 0.0317 4
665PB2FA
195 1800 78.8 36.7 2.75 0.036 4
665PB3FI
229 1700 92.6 39.4 2.94 0.036 4
665PB3FA
232 1800 105.3 44.1 2.65 0.053 4
665PB3FB
269
2000 121 56 2.37 0.045 4
665PB6FI
304 1700 111 54.1 3.05 0.058 4
665PB4FA
357 1800 159.3 67 2.68 0.061 4

The data in the above table are for reference only, subject to the actual products shipped




KC Series Motors


Product features:

Small moment of inertia, fast response speed, compact structure, high temperature resistant permanent magnetic material, strong anti-magnetic ability
Low noise, low vibration, low torque fluctuation, smooth operation, high precision. Motor rotor adopts special structure and technology to ensure the reliability of motor running at high speed
The motor coil is treated with vacuum paint, which greatly improves the moisture resistance of the motor
Encoders are available in rotary transformer type and absolute value type
Can adapt to high temperature, vibration, dust, oil and other harsh environment

KC motor models


  • Rated Torque
  •  /Nm


Rated speed/Rpm

Rated current/A

Rated power/

Kw


  • Torque constant


Nm/A

Inerti

a(Kgm2)

  • Pole-pairs
665KC1AB
7.2 2000 3.5 1.5 2.2 0.001 5
665KC1AB 11 2000 5 2.3 2.3 0.001 5
665KK1BB
42 2000 18 8.8 2.5 0.008 4
665KK3BA
66 1800 22.5 12.4 3.0 0.012 4
665KK5BA
89 1800 30

16.8

3.0 0.015 4
665KK7BA
131 1800 45 24.7 3 0.0210 4
665KK9BB
170 2000 65 35.6 2.8 0.027 4
665KL2BB
162.5 2000 65 34 2.8 0.035 4
665KL4BB
250 2000 100 52.4 2.8 0.052 4
665KL6BB
300 2000 120 62.8 2.8 0.069 4

The data in the above table are for reference only, subject to the actual products shipped




Eckerle Series


Product features:

1) EIPC new series of new technologies
2) the maximum working pressure is 320BAR
3) aluminum alloy body
4) can be multi-link
5) with radial and axial pressure compensation design
6) low pulse and stable pressure ensure stable operation and long service life of the machine.


Main Parameter
EIPC3 Series
Model 25 32 40 50 63
Continuous working pressure Bar 250
Maximum pressure Bar 320 320 300 280 210
Instantaneous pressure Bar 350 350 325 300 210
Maximum number of revolutions min-1 3800 3700 3600 3600 2400
Normal revolution min-1 200-3200 200-3000 100-3200 100-3000 200-2200
EIPC5 Series
Model 64 80 100
Continuous working pressure Bar 250
Maximum pressure Bar 270
Instantaneous pressure Bar 280
Maximum number of revolutions min-1 3000 300 300
Normal revolution min-1 100-2800 100-2800 100-2500
EIPC6  Series
Model 125 160 200
Continuous working pressure Bar 250 250 160
Maximum pressure Bar 280 280 170
Instantaneous pressure Bar 300 300 180
Maximum number of revolutions min-1 2800 2800 2200
Normal revolution min-1 400-2500 400-2500 400-2000

Product specifications
Eckerle oil pump spline model Eckerle oil pump flat key model Specifications
890_EI_0320_RS2_C313 890_EI_0320_RK2_C313 EIPC3-32
890_EI_0400_RS2_C313 890_EI_0400_RK2_C313 EIPC3-40
890_EI_0500_RS2_C313 890_EI_0500_RK2_C313 EIPC3-50
890_EI_0630_RS2_C313 890_EI_0630_RK2_C313 EIPC3-63
890_EI_0640_RS2_C501 / EIPC5-64
890_EI_0800_RS2_C503 890_EI_0800_RK2_C502 EIPC5-80
890_EI_1000_RS2_C503 890_EI_1000_RK2_C502 EIPC5-100
890_EI_1250_RS2_C621 890_EI_1250_RK2_C601 EIPC6-125
890_EI_1600_RS2_C621 890_EI_1600_RK2_C601 EIPC5-160



SETTIMA Series


Product features:

(1) low noise and low pulsation
(2) small mechanical inertia
(3) high volume efficiency
(4) high-voltage and low-speed clearance operation
(5) compatible with all external gear pumps, easy replacement

Main parameters
Model Continuous pressure Bar Interstitial pressure Bar Peak pressure Bar
28 270 280 300
32 250 270 280
40 225 250 270
50 200 250 270
63 250 260 280
75 230 250 270
90 180 240 260
101 230 240 250


Main specifications
Settima oil pump models Specification
890_SFM_028_FS2_4701 GR47_T11_28CC
890_SFM_032_FS2_4702 GR47_T15_32CC
890_SFM_040_FS2_4702 GR47_T15_40CC
890_SFM_050_FS2_4702 GR47_T15_50CC
890_SFM_063_FS2_5502 GR55_T14_63CC
890_SFM_075_FS2_5502 GR55_T14_75CC
890_SFM_090_FS2_5502 GR55_T14_90CC
890_SFM_101_FS2_7201 GR72_T17_101CC



Overview:

Automatic safety door system consists of motor, driver and other accessories. With the increase of tonnage of injection molding machine, the upsizing of the frame leads to larger and larger safety doors and heavier and heavier weight. Therefore, automatic safety door device has become a necessary configuration of mainframe.



Advantages:

1. Easy operation and time saving
2. Multi-stage control, smooth and stable operation
3. high safety, close the door collision protection
4. Convenient debugging and open parameters

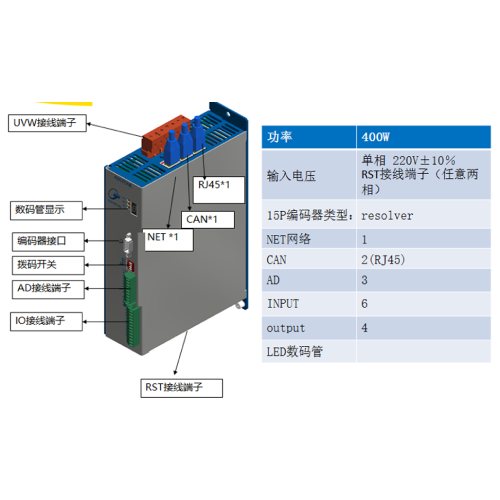

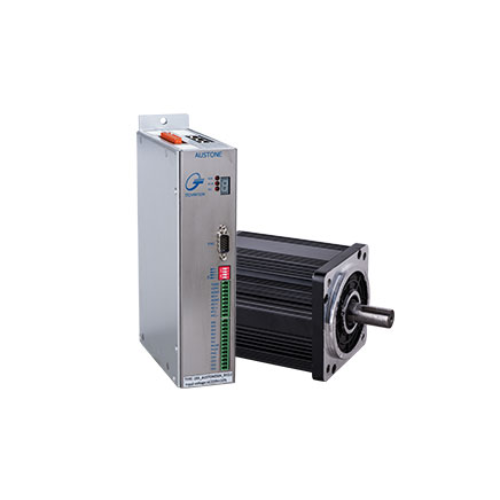

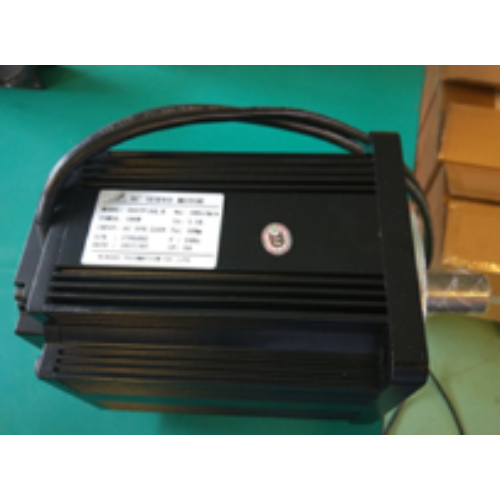

Product pictures and technical parameters:

Drive:

Motor:





HUNTER I4


Product features:

(1) High low-frequency torque, self-identification of motor parameters, optimal acceleration and deceleration control, wave-by-wave current limiting and other advanced control performance;
(2) It has powerful I/O expansion function, supports a variety of communication expansion CARDS, and can customize process control CARDS and other expansion capabilities for customers.


Main specifications
Product Model Input voltage /V Rated capacity  Rated ouput current Adaptation motor
(kVA) (A) (KW)

1BX_HUNTERI4_4T0007G Three phases 380V 0.8 2.5 0.75
1BX_HUNTERI4_4T0015G 1.6 4.1 1.5
1BX_HUNTERI4_4T0022G 2.4 5.5 2.2
1BX_HUNTERI4_4T0040G 4.1 9.6 3.7
1BX_HUNTERI4_4T0055G 8.5 13 5.5
1BX_HUNTERI4_4T0075G 11 17 7.5
1BX_HUNTERI4_4T0110G 17 25 11
1BX_HUNTERI4_4T0150G 21 32 15
1BX_HUNTERI4_4T0185G 24 37 18.5
1BX_HUNTERI4_4T0220G 30 45 22
1BX_HUNTERI4_4T0300G 40 60 30
1BX_HUNTERI4_4T0370G 50 75 37
1BX_HUNTERI4_4T0450G 60 90 45
1BX_HUNTERI4_4T0550G 72 110 55
1BX_HUNTERI4_4T0750G 100 157 75
1BX_HUNTERI4_4T0900G 116 180 90
1BX_HUNTERI4_4T1100G 138 214 110
1BX_HUNTERI4_4T1320G 167 256 132
1BX_HUNTERI4_4T1600G 200 307 160
1BX_HUNTERI4_4T1850G 230 340 185
1BX_HUNTERI4_4T2000G 250 385 200
1BX_HUNTERI4_4T2200G 280 430 220
1BX_HUNTERI4_4T2500G 317 465 250
1BX_HUNTERI4_4T2800G 355 525 280
1BX_HUNTERI4_2S0007G single phase 220V 0.8 5 0.75
1BX_HUNTERI4_2S0015G 1.6 7.8 1.5

Product's Technical Parameters
Iinput Rated Voltage single phase 220V-240VAC or three phases 380V-440VAC
Frequency 50Hz/60Hz
Output Rated Voltage 0-input voltage
Frequency 0Hz-550Hz
Overload capacity 110% rated stable operation, 150% rated load 1min, 180% rated load 3s
Main control performance Modulation Mode Open loop vector control, V/F control
Speed adjustable range 0.111111111
Starting torque Rated torque: 150% at 0.5hz
Steady state accuracy of running speed ≤±0.5% rpm
Frequency accuracy Digital setting: maximum frequency * + + 0.01%; Simulation setting: maximum frequency * + + 0.5%
Frequency resolution Digital setting: 1Hz; Simulation setting: maximum frequency x 0.1%
V/F curve 4 ways: 1 user sets 3 kinds of torque reduction characteristic curves (power 2, power 1.7, power 1.2)
Acceleration and deceleration curves Three ways: linear acceleration and deceleration, s-curve acceleration and deceleration, automatic acceleration and deceleration
Inching Frequency range: 0.1hz-50hz; The addition and subtraction time of 0.1-60s can be set
Multi-speed operation Realize multi-speed operation through built-in PLC or control terminal)
Built-in PI The closed loop control system can be conveniently constructed
Movement function Run command channel 操作面板给定、控制端子给定、串行口给定
Frequency given channel 数字给定、模拟电压给定、模拟电流给定、脉冲给定、串行口给定
Pulse output terminal Pulse square wave signal output, can achieve the output of setting frequency, output frequency and other physical quantities
Analog output terminal 2-channel analog signal output, 0-20ma or 0-10v is optional, respectively
Operation panel
LED dispaly
Can display setting frequency, output frequency, output voltage, output current, etc
Key lock and function selection Implement partial or complete locking of keys to define the scope of action of some cases to prevent misoperation
Customization function Motor parameters self-tuning Can accurately identify motor parameters, static self-learning, dynamic self-learning
Textile pendulum frequency Textile swing frequency control, can achieve the center frequency adjustable swing frequency function
Fix-length control The frequency converter stops after reaching the set length
Droop control Suitable for multiple inverters to drive the same load occasions
Stop-start control Instantaneous power loss, through the bus voltage control, to achieve uninterrupted operation
Expansion capability Card 1: support communication protocol card, Profinet, EtherCAT(optional)
 Card 2: function card, I/O extension card, PG card (optional)

Protection function Input phase protection, output phase protection, over current protection, over voltage protection, under voltage protection, overheating protection, overload protection
Application environment Operation place Indoor, not direct sunlight, no dust, corrosive gas, flammable gas, oil mist, water vapor, drops or salt, etc
Environment temperature -10℃~+40℃(When ambient temperature ismore than 40 ℃ , need to external forced cooling or derating use)
Altitude <1000m,>1000m,derating use
Structure Protection grade IP20
Cooling mode Air cooling (the cooling fan can be started with normal open or temperature control)
Installation Wall type, cabinet type, transparent wall type installation



CONTACT SUPPLIER
