ISOTHANE TPU resins are high quality environmental friendly materials and available in a wide range of hardnesses in polyester and polyether-based formulations. ISOTHANE exhibit the valuable characteristics of flexible rubber and rigid plastics and their wide spectrum of mechanical properties meet customers’ demands in extensive applications.

ISOTHANE TPU resins portfolio includes high transparency grades, hot melt grades, breathable film grades, anti-static grades, engineering grade, low compression grades, bio-renewable and flame retardant grades.

● High Tensile Strength

● High Mechanical Property

● High Fuel & Oil Resistance

● Good Chemical Resistance

● Low Temperature Resistance

● Excellent Hydrolytic Stability

● Bio-compatibility

● Resistance To Micro-organism

Item Name	Extrusion Series
Characteristics	ISOTHANE® extrusion series products exhibit excellent transparency, mechanical properties, abrasive resistance, and easily processing. ISOTHANE® extrusion series can be processed by extrusion and injection molding.

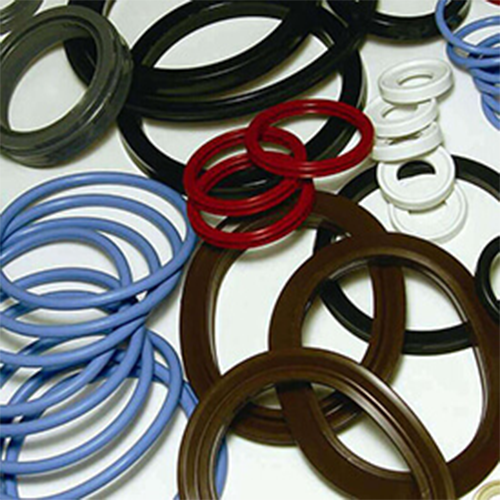

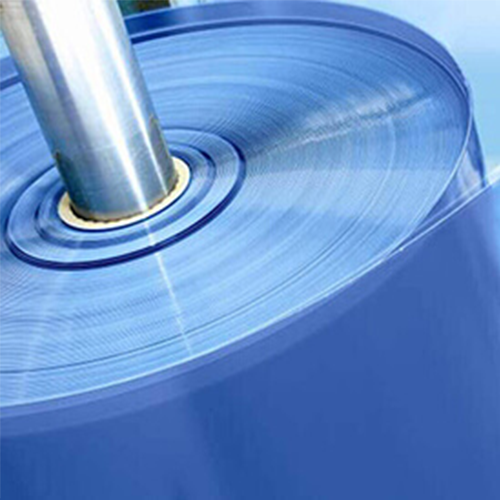

Suggested Applications	Footwear, Films, Tubing, Sports Items and Conveyor Belts

Items	Units	ASTM	1070AEU-J3	1080AEU-J	1080AU-K	1085A-E1	1085AEU-L2	1085AEU-J1
Specific Gravity		D-792	1.20	1.17	1.17	1.18	1.19	1.19
Hardness	Shore A	D-2240	70A	80A	79A	85A	85A	86A
Tensile Strength	MPa psi	D-412	23 335	36 5250	40 5800	35 5080	23 3340	46 6680
@ 50% elongation	MPa psi		2 310	3 435	4 600	6 870	6 870	6 875
@ 100% elongation	MPa psi		3 440	4 600	5 725	7 1020	7 1020	8 1180
@ 300% elongation	MPa psi		4.5 655	7 1050	10 1450	11 1600	10 1450	12 1750
Elongation @ Break	%		900	800	750	650	810	700
Tear Strength	N/mm lb/in	D-624 DIE C	65 355	100 560	115 650	125 700	110 620	130 730

These property values under specific test conditions as defined in the table above are for reference only.

Items	Units	ASTM	1085AEU-J2	1090A-E	1090A-E2	1095AEU-J	B1095AEU-S	3085AU-EJ
Specific Gravity		D-792	1.18	1.20	1.18	1.20	1.20	1.12
Hardness	Shore A	D-2240	85A	90A	90A	95A	95A	85A
Tensile Strength	MPa psi	D-412	30 4350	48 5500	61 8900	50 5500	45 6530	30 5500
@ 50% elongation	MPa psi		6 875	12 1750	10 1450	16 2330	14 2030	5 725
@ 100% elongation	MPa psi		8 1180	14 2050	11 1600	20 2900	15 2180	7 1020
@ 300% elongation	MPa psi		10 1450	20 2900	17 2500	30 4350	24 3500	12 1760
Elongation @ Break	%		700	650	650	500	550	700
Tear Strength	N/mm lb/in	D-624 DIE C	120 675	190 1080	170 975	220 1240	190 1080	120 675

These property values under specific test conditions as defined in the table above are for reference only.
