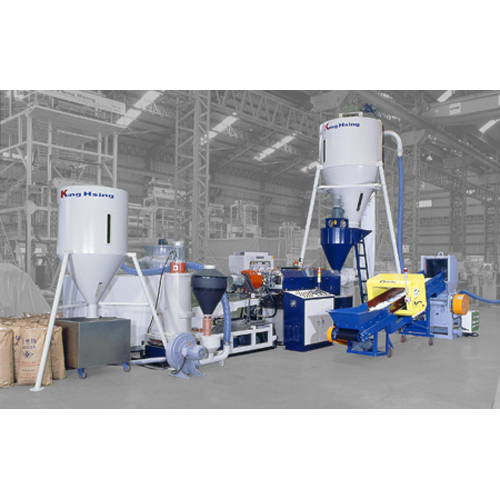

KS-DX Series Die Face Cutter Water Cooling Type

Classification : Plastic Recycling Machine and Washing Line

Country: Taiwan

Phone: 886-5-2374466

Fax: 886-5-2376971 /886-5-2381029

Contact Person: Kun Lin Tsai

MODEL		KS-DX65	KS-DX85	KS-DX100	KS-DX120	KS-DX150
FEATURE	MATERIAL TO BE USED	HDPE, LDPE, LLDPE, PP (PRODUCTION OUTPUT IS ACCORDING TO MATERIAL)
FEATURE	MAX. EXTRUSION OUT PUT	180 kg/hr	300 kg/hr	380 kg/hr	470 kg/hr	750 kg/hr
FIRST EXTRUDER	SCREW DIA. (m/m)	65ø	85ø	100ø	120ø	150ø
	SCREW L/D	37:1
	CYLINDER COOLING BLOWER	1/2 HPx4	1/2 HPx5	1/2 HPx6	1/2 HPx6	1/2 HPx7
	DRIVING MOTOR	40 HP	75 HP	100 HP	150 HP	200 HP
	HEATER CAPACITY	35 KW	45 KW	60 KW	75 KW	90 KW
	SCREEN CHANGER	HYDRAULIC TYPE
	TEMPERATURE CONTROL (points)	5	7	8	9	11
DIE	TYPE	ROUND TYPE
DIE	NUMBER OF EXTRUDIED STRIPS	MULTI HOLES
CUTTING & COOLING EQUIP	CUTTING DEVICE	DIE FACE CUTTER
	DRIVING MOTOR	2 HP	2 HP	2 HP	3 HP	3 HP
	COOLING BLOWER	WATER RING (MADE OF STAINLESS STELL)
DRYING DEVICE	TYPE	STAINLESS STEEL CENTRIFUGE DRYER
DRYING DEVICE	DRIVING MOTOR	3 HP	3 HP	3 HP	5 HP	7 1/2 HP
COLLECTING TANK	CONVEYOR	3 HP	3 HP	3 HP	5 HP	7 1/2 HP
COLLECTING TANK	CYCLONE	1 SET
SCREW TYPE SIDE FORCE FEEDING DEVICE	SCREW MOTOR
	MIXER MOTOR
	WASTE COLLECTING STORAGE (kgs)
SECONDARY EXTRUDER	SCREW DIA.(m/m)	65ø	85ø	100ø	120ø	150ø
	SCREW L/D	12:1
	CYLINDER COOLING BLOWER	1/2 HPx2	1/2 HPx2	1/2 HPx4	1/2 HPx5	1/2 HPx7
	DRIVING MOTOR	20 HP	25 HP	30 HP	40 HP	60 HP
	HEATER CAPACITY	20 KW	25 KW	30 KW	38 KW	45 KW
	SCREEN CHANGER	HYDRAULIC TYPE
	TEMPERATURE CONTROL (points)	4	5	5	6	7
OPTIONAL DEVICE	SPIRAL TYPE FEEDING DEVICE FOR FILM SCRAP PROCESSING, WASTE STORAGE, CATERPILLAR TYPE AUTOMATIC CONVEYOR, CRUSHER, VACUUM SYSTEM FOR VENT (DEGASSING SYSTEM), VIBRATING SYSTEM, AGGLOMERATING MACHINE, METAL DETECTOR
