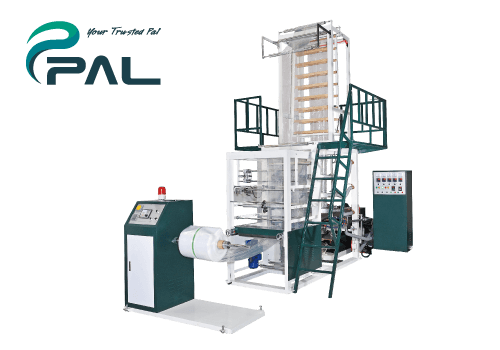

Machine Model: 45 / 55LD-Z
Machine Features:
- High speed zipper film extrusion - Stable LDPE extrusion at 8-12 M/min
- Zipper film die head - One die, one size. available sizes listed in specification chart
- Auto width adjustment - Self-correction for extrusion width upon detection out of range
- Closure examination - Alarm when zipper not closed properly
Optional Device
- Color-line sub-extruder - Extra 20 mm for secondary color
- Color zipper sub-extruder - Extra 25 mm for color zipper
- Sound zipper device - Popping sound and hand notify users of secure closure

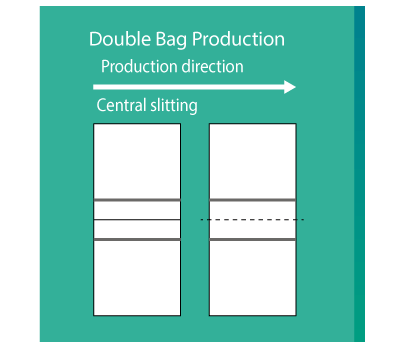

- Double bag die head - Output twin zipper lines with single die head and slitted during converting

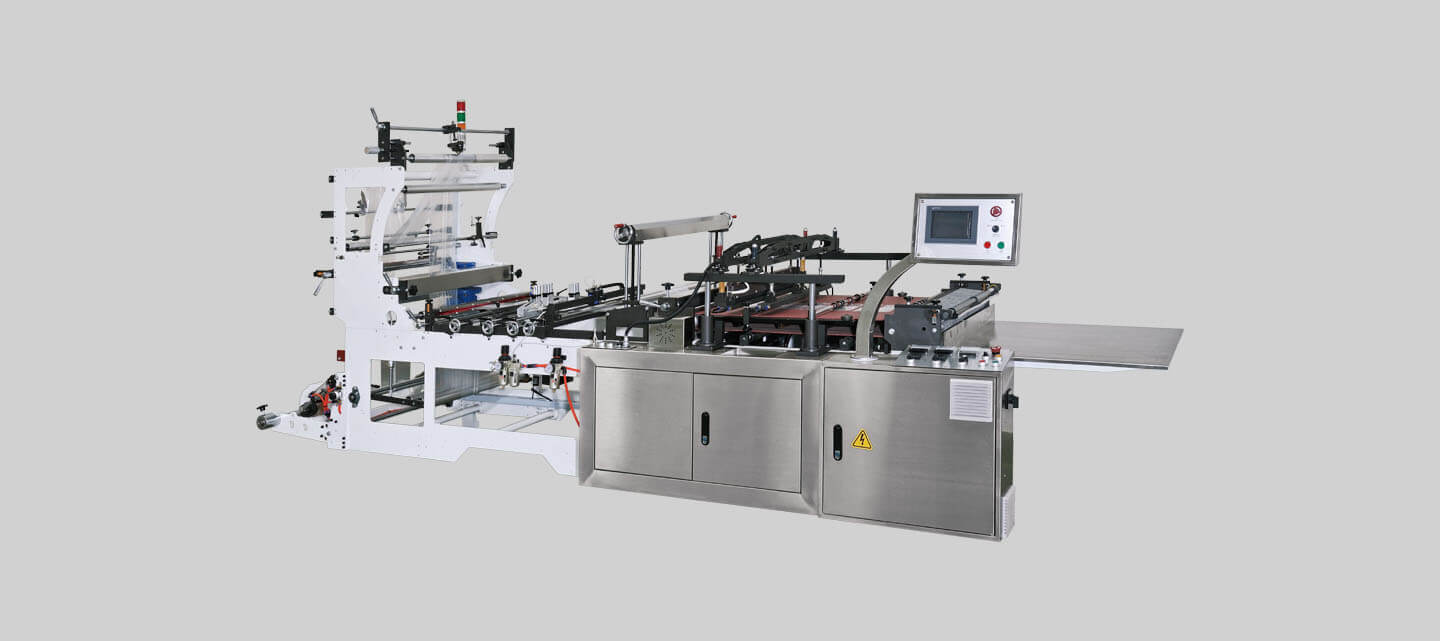

Machine Model: 500/750/900SWZ-V

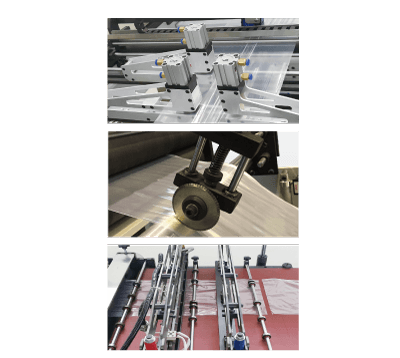

Machine Features:
- Servo driven - High-speed and accuracy @150 pcs/min
- Central siitting - Slitting double bag zipper film into 2 small bags
- Cooling pressor bar - Cooling on the sealing line to prevent elongation and deformation
- Malfunction alarm / stop - Abnormal temperature / no material feed / photocell track miss
Optional Device:
Auxiliary ultrasonic sealing - Press and crush the zipper film prior to sealing to secure the sealing quality on zipper
Various hole punch - Kidney, euro, round punches, etc
Circular perforation device
Inline Zipper Film Blown → Printing → Bag Making

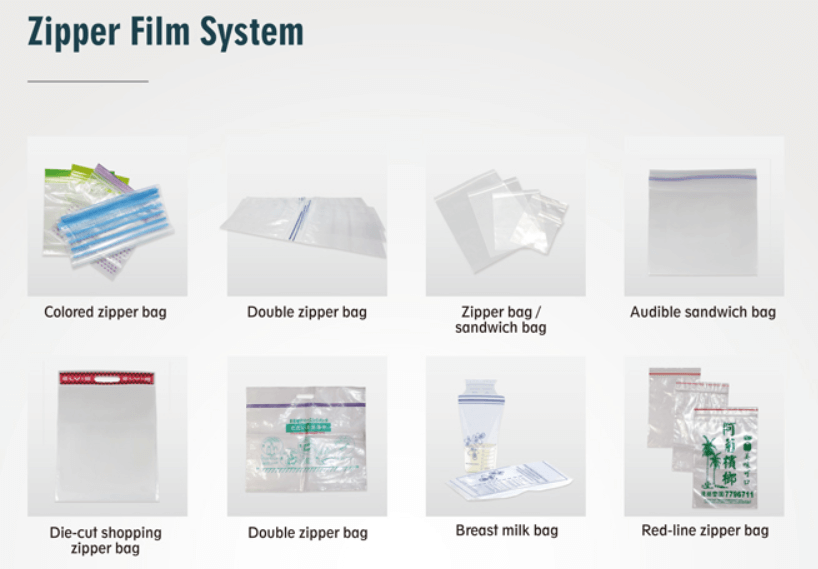

Zipper film
ㆍ Each size requires a designated extruder die
ㆍ Available for inline extrude-print-bag making
ㆍ Most suitable for continuous mass production
ㆍ Linespeed 8-13 M/min

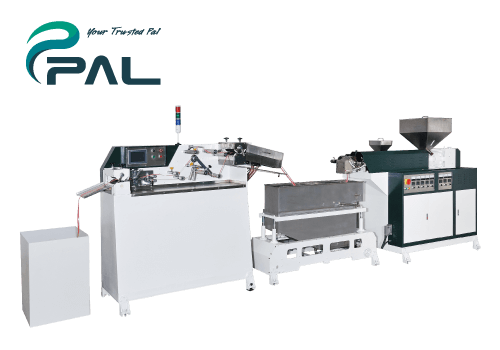

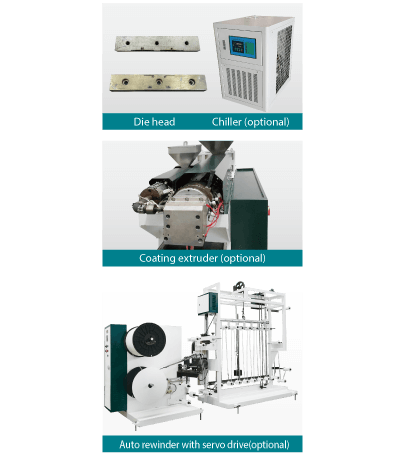

Machine Model: 45INLL / 45INLL-AB
Machine Features:
- High-speed extrusion @30-80M depending on style
- Extrusion for both PP & PE based profiles
- Special formulated coating layer attachable to both PP & PE film minimizing stock requirement. Low seal temperature material can increase production efficiency.
- Closure malfunction alarm - Alarm when zipper profile closure not performed properly.
- (Zipper profile mould available by standard and customized)

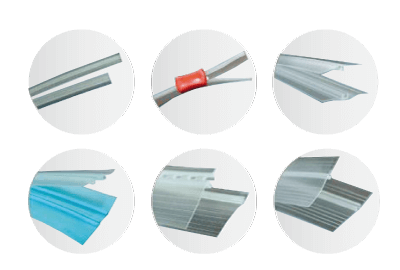

Available zipper styles:

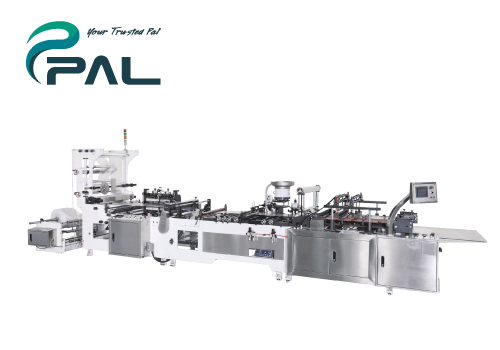

Machine Model: 500 / 750 / 900 ZPB-V
Machine Features:
- Servo driven - High speed and accuracy @140 pcs/min

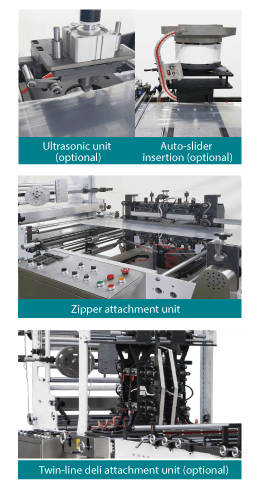

- Zipper attachment unit - Stable attachment feeding and sealing continuously with strong sealing performance
- Also available with twin line deli system
- Auto-stop for profile jamming - Lever mechanism and machine automatically stop when zipper profile is jammed
- Malfunction alarm / stop - Abnormal temperature / no material feed / photocell track miss
Available Optional Device:
- Auxiliary ultrasonic sealing - Crushing zipper for easy sealing
- (Various hole punches - Kidney, euro, round punches, etc.)
- Trangle folding device - Folding sheet film in half for bag making
- Irregular sealing bar - Cut & sealing specific shape such as a grape bag bottom
- Auto-slider insertion @60-100 pcs/min depending on slider style (model: ZPB-V+SD)

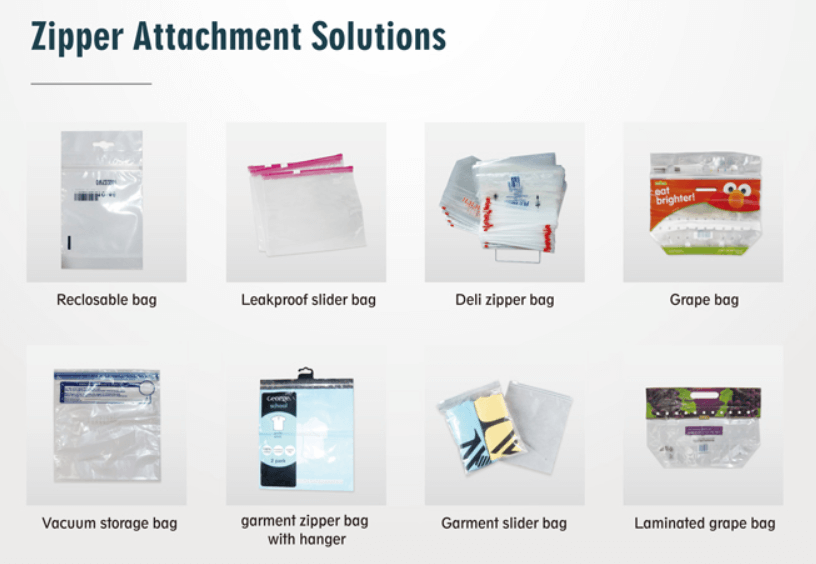

Zipper Profile Insertion & Attachment
Regular blown film
- Suitable for different sizes and different zipper styles
- Suitable for PP & PE film and zipper
- Line speed max @30M/min
Model | Cutting length (inch) | Cutting width (mm) | Cutting speed (strokes/min) | Film thickness (mm) | Tolerance | Power |
Machine dimension L x W x H (cm) |
|
SWZ-V | 500SWZ-V | 60-450 | 60-450 | 20-140 | 0.012-0.1 | ±1 | 3.5 | 300 x 145 x 215 |
750SWZ-V | 60-700 | 60-550 | 20-140 | 0.012-0.1 | ±1 | 4 | 300 x 160 x 215 | |
900SWZ-V | 60-850 | 60-650 | 20-140 | 0.012-0.1 | ±1 | 4.5 | 300 x 175 x 215 | |
ZPB-V | 500ZPB-V | 60-450 | 60-450 | 20-140 | 0.012-0.1 | ±1 | 4 | 780 x 145 x 215 |
750ZPB-V | 60-700 | 60-550 | 20-140 | 0.012-0.1 | ±1 | 5 | 780 x 160 x 215 | |
900ZPB-V | 60-850 | 60-650 | 20-140 | 0.012-0.1 | ±1 | 5.5 | 780 x 175 x 215 | |
ZPB-V+SD | 500ZPB-V+SD | 60-450 | 60-450 | 20-140 | 0.012-0.1 | ±1 | 4.5 | 950 x 145 x 215 |
750ZPB-V+SD | 60-700 | 60-550 | 20-140 | 0.012-0.1 | ±1 | 5.5 | 950 x 160 x 215 | |
900ZPB-V+SD | 60-850 | 60-650 | 20-140 | 0.012-0.1 | ±1 | 6 | 950 x 175 x 215 |
Co-extrusion Zipper Profile Extruder | |||||||
Model | Screw diameter |
Screw length L/D |
Heater cap. (kw) |
Main motor |
Max. extrusion output (kgs/hr) |
Auto temp. controller |
Machine dimension L x W x H (cm) |
PL45INLL | Ø45 | 01:30 | 17 | AC 10HP | 20-80M | 5 points | 600 x 100 x 170 |
PL45INLL-AB | Ø45+Ø25 | 01:30 | 22 | AC 10HP | 20-80M | 8 points | 600 x 100 x 170 |
High-speed Zipper Film Extruder | |||||||||
Model |
Screw diameter (mm) |
Screw length L/D |
Film blown width (mm) |
Film blown thickness (mm) |
Line speed (M/min) |
Auto temp. controller | Main motor | Takeout motor |
Machine dimension L x W x H (cm) |
LD45-Z | 45mm | 01:30 | 100-350 | 0.04-0.125 | 4-12 | 5 points | 10HP | 1HP | 440 x 130 x 400 |
LD55-Z | 55mm | 01:30 | 180-600 | 0.04-0.125 | 4-12 | 5 points | 16HP | 1HP | 440 x 160 x 400 |
Available Standard Die Heads | |||||||
Die diameter (mm) | Ø60 | Ø70 | Ø80 | Ø100 | Ø120 | Ø150 | Ø180 |
Single bag film width (mm) | 60-85 | 60-85 | 85-120 | 120-160 | 160-200 | 200-240 | 240-280 |
Die diameter (mm) | Ø200 | Ø220 | Ø250 | Ø270 | Ø300 | Ø320 | Ø330 |
Single bag film width (mm) | 280-320 | 320-360 | 360-400 | 400-440 | 440-480 | 480-520 | 480-520 |
Die diameter (mm) | Ø60 | Ø70 | Ø80 | Ø100 | Ø120 | Ø150 | Ø180 |
Double bag film width (mm) | 10-25 x 2 | 10-25 x 2 | 25-45 x 2 | 45-65 x 2 | 65-85 x 2 | 85-105 x 2 | 105-125 x 2 |
Die diameter (mm) | Ø200 | Ø220 | Ø250 | Ø270 | Ø300 | Ø320 | |
Double bag film width (mm) | 125-145 x 2 | 145-165 x 2 | 165-185 x 2 | 185-205 x 2 | 205-225 x 2 | 225-260 x 2 |
