Twin-Servo High-Speed T-shirt Bag Making Machine (Hot-Cut System) TPFA-V

Classification : T-shirt bag series

Country: Taiwan

Phone: 886-5-2217005

Fax: 886-5-2211929

Contact Person: Sammuel Chiu

High-speed hot-cut system - For printed T-shirt bags. Photocell & servo registers accurate print position. High speedhot-cut system available in 200/250/300rpm systems.
Twin-servo system - 2 servo controlling 2 lines with printing register accurately.
Fully automatic gripper & pneumatic punch - When counts reached, inline gripper collect and pneumatic punch cut out waste area and removed by conveyor . Non-stop production.

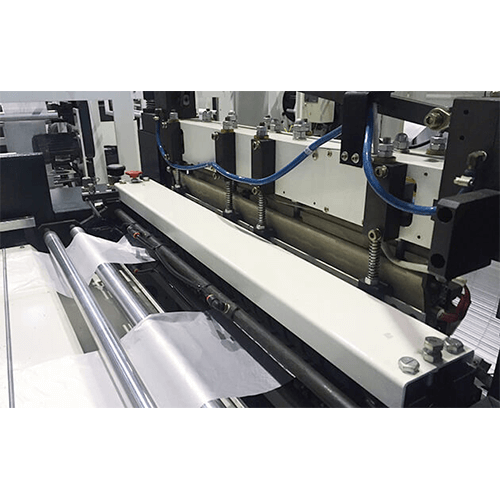

Tensionless high speed hot-cut system : Upper sealing blade & bottom heating wire makes strong and high speedsealing. Tensionless sealing avoids sealing line pull& elongation for highspeed production. Seperated upper and bottom temperature control for easy micro-adjustment.
Gripper + pneumatic punch : When counts reached, inline gripper collect and pneumatic punch cut out waste area and removed by conveyor.
Rocking pin block : Blocking pin base rock back and forth to avoid sealing line sticking to previous bags.
Synchronized feeding and cutting speed : Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.
German "Sick" photocell registration : Reliable and accurate print registration and positioning
Auxiliary air-blown outfeed : Air blown assists material flow of outfeeding
LCD touch panel : Easily operable human-computer interface to access parameter changes and production monitoring
Socket type IC circuit control : Automated control system can be easily replaced by socket plugin.
Malfunction alarm / stop : Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

28TPFA-V	32TPFA-V	42TPFA-V	50TPFA-V
Bag Width:10"-26"x1 or 6"-12"x2 Bag Length:10"-26" Film Thickness:0.012mm-0.025mm Capacity (strokes/min):200/250/300	Bag Width:3"-14"x2 Bag Length:10"-26" Film Thickness:0.012mm-0.025mm Capacity (strokes/min):200/250/300	Bag Width:3"-19"x2 Bag Length:10"-26" Film Thickness:0.012mm-0.025mm Capacity (strokes/min):200/250/300	Bag Width:3"-23"x2 Bag Length:10"-26" Film Thickness:0.012mm-0.025mm Capacity (strokes/min):200/250/300
