Classification : Filling temperature 85℃
Country: Taiwan
Phone: 886-4-23345536/ 86-595-88169879
Fax: 886-4-23345539/ 86-595-88165687
Contact Person: Claire
- FEATURE
- Adopt the touch screen control system with 64K color and friendly PLC operation.
- Exclusively designed machine construction makes it convenient to combine the blow molding machine with conveyor system.
- The preforms are automatically arranged in order for feeding system at a single way and the dividing carrier is driven by a servo motor; this way will avoid preforms jamming, causing machine down or preforms waste.
- Adopt a servo control screw driving system; it is rapid, stable, clean and environmentally friendly.
- The preforms are fed into the heating system in a matrix mode and uniform heated by single-lamp with double-sided heating.
- Employ a single-lamp with double-side heating design and will save about 50% heating consumption compared with competitor method.
- With the temperature feedback function, temperature in the heating oven is automatically controlled by adjustment of infrared lamps to reduce prefrom crystallization problems.
- Specially designed heating box upgrade convenience of maintenance in changing infrared lamp and cooling ramp.
- The clamping mechanism is driven by a combination of servo motor and cam; this results in accurate and stable motion, low noise and minimal pollution.
- Utilizes the air recovery system and efficiency up to 50% so that the low-pressure air compressor will not be required. This will save equipment investment costs and energy consumption by up to 15%.

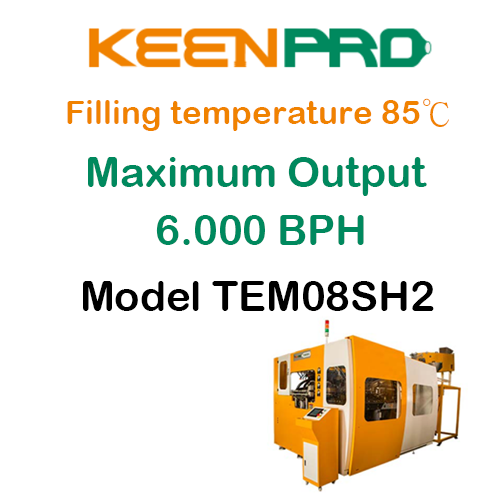

Model | TEM08SH2 | Unit |
Cavity no. | 8 | cavity |
Theoretical Output | 6000 | BPH |
Preform Holder | 224 | pcs |
Heating pitch | 54 | mm |
Cavity pitch | 80 | mm |
Bottle volume | 0.75 Ltr. | Max. |
Preform neck | 18-38 | Max. (mm) |
Preform height | 100 | Max. (mm) |
Bottle diameter | 70 | Max. (mm) |
Bottle height | 240 | Max. (mm) |
Oven no. | 1*4 | box*channel |
Heating power | 64 | Max. (kW) |
Specified power | 94 | kW |
Machine size | 360*620*350 | cm |
Machine wt. | 7500 | kg |
Infrared lamp | 32 | pcs |
Operation pressure | 6 | Min.(kg/cm2) |
Blowing pressure | 35 | kg/cm2 |
Specified high-pressure air consume | 12000 | (for 500ml) L/min |
Chiller temperature range | 6-15 | ℃ |
Chiller refrigerating capacity | 15480 | kcal/hr |
Chiller compressor power | 8 | HP |
Chiller outlet pressure | 4 | kg/cm2 |
※Actual output depends on bottle shape, preform design and quality. | ||
※INCLUDE preform infeed system:preform tank, conveyor and unscrambler. | ||
※INCLUDE air recovery system. (low-pressure air compressor will NOT be required.) | ||
※INCLUDE air cooling system. (Accelerate cooling of the bottle to shorten the cycle time to save the high pressure air consumption.) | ||
※Water type temperature controller shall be required for bottom mold. |
