Classification : Stretch Blow Molding
Country: Taiwan
Phone: 886-4-22332281
Fax: 886-4-22306247
Contact Person: Sales Department

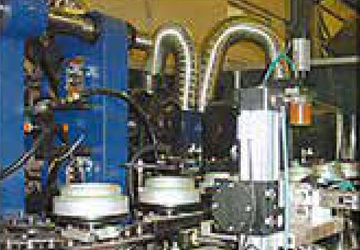

Preform Conveying System
Servo motor control makes delivery of preform to the mould very smooth and accurate.
Model | CMA-20000CS | CMA-2000CD | ||
Container | Max. neck diameter | mm | Ø63~Ø120 | |
Max. production capacity | pcs/hr | 600 | 1200 | |
Max. body diameter | mm | 180 | 180 | |
Max. container height | mm | 340 | 340 | |
Max. bottle capacity | ml | 6000 | 6000 | |
No. of cavity | no. | 1 | 2 | |
Mould | Carry pitch | mm | 228.6 | 228.6 |
Mould center distance | mm | 228.6 | 228.6 | |
No. of preform mandrels | pcs | 28 | 38 | |
Heating oven | No. of even | no. | 3 | 4 |
No. of infrared heaters in each oven | no. | 9 | 9 | |
Heating load (max.) | kw | 43 | 58 | |
Air pressure | Low pressure | kg/cm2 | 7 | 7 |
High pressure | kg/cm2 | 35 | 35 | |
Cooling water | Cooling capacity | kcal/h | 14000 | 18000 |
Water consumption | l/min | 70 | 80 | |
Water temperature | °C | 10~12 | 10~12 | |
Pressure | bar | 5 | 5 | |
Total consumption power | kw | 45 | 62 | |
Machine dimension | mm | 3.45x1.9x2.2 | 4.5x2.25x2.2 | |
Machine weight | ton | 6.5 | 7 |
* All Specifications and designs are subject to change without notice.
* The production capacity refers to 500ml water bottles.
* CMA Series model can be upgraded to fully electricity type by servo motor control.
Food Packing Container
Oval / Flat Bottles
Wide Mouth Jars
