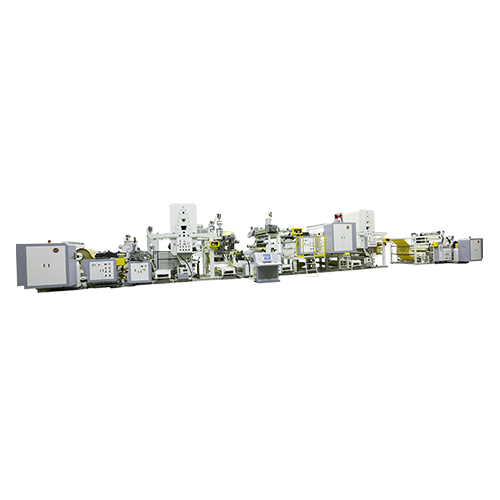

Two Layer Co Extrusion Lamination Machine For Flexible Packaging Film

Classification : High Speed Multi-layer Plastic Co-extrusion Lamination Machines

FONG KEE INTERNATIONAL MACHINERY CO., LTD.

Country:

Phone: 886-6-2532157

Fax: 886-6-2533079

Contact Person: Susan Wei

Inquiry Now

Flexible packaging films
-BOPP/BOPET/MPET/CPP
-Alum.Foil/Poly Film/Paper

Resin	LDPE or PP or EVA or HDPE or LLDPE
Substrates for main unwinder
Material size	1000mm dia. x 1250mm width
Alum. foil(pickled and annealed)	20 - 38 micron
Substrates for secondary unwinder
Material size	1000mm dia. x 1250mm width
Lamination thickness	0.01mm - 0.04mm
Lamination line speed	250m/min. Designed speed
Unwinder	2 drums turret system with EPC
Auto splicing, auto cut, fully automatic control system
Tension range	4 - 50 Kg-f
Infeed unit	Two roller press type
Primer coating and dryer unit
Extruder A	90mm dia. screw, L/D=32:1
Main drive	75HP AC motor with vector inverter control
Extruder B	125mm dia. screw, L/D=32:1
Main drive	250HP AC motor with vector inverter control
2-Layer Feedblock	Cloeren, USA, A/B, B/A
Extrusion T-die	EBR IV-A Internally Deckled Extrusion Die, Cloeren, USA
Lamination unit	3 roller type
Secondary unwinder	2 drums turret system
Tension range	3 - 40 Kg-f
Primer coating and dryer unit
Outfeed unit	Two roller press type
Winder	2 drums turret system with pre-run auto splicing, auto cutting system
Tension range	4 - 50 Kg-f
Electric control panel
