SEQUENTIAL CONTROLLERS

Classification : Sequential Controllers

MOLDPOWER CO., LTD.

MOLDPOWER CO., LTD.
Country: Taiwan
Phone: 886-6-2056-388。
Fax: 886-6-2056-399。
Contact Person: Mr. Yeh


TS-4

Product Features

  • Time accuracy can be divided into 0.1 second and 0.01 second.
  • Trigger mode can be divided into Edge Triggered, Level Triggered, and Level plus Delayed Triggered.
  • The input signal can choose contact input (NO switch) or voltage input. (DC24V/AC220V) easy to match with injection molding machine.
  • The input signal can be selected from the injection signal or the holding pressure signal.
  • Output DC24V, can choose positive output or reverse output.
  • According to the input signal selection mode, set the parameters to achieve the best condition.
  • The input signal includes the following three types:
a. DC voltage input DC24V.
b. Contact switch (NO normally open switch) .
C. AC voltage input AC-24V~AC265V.
  • The action time ranges from 0.1 second to 999.9 seconds, or 0.01 second to 99.99 seconds.
  • Human-machine interface control (HMI), Multi-point parameter setting can be performed simultaneously through the machine.
  • Add a new intermittent pressure holding function, which can set the valve needle multi-switch function according to the pressure holding time to solve the problem of hardening of the gate plastic material caused by the long-term pressure holding.
  • RS485 communication function cooperates with Human-machine interface control (HMI), which can operate up to 144 control points, simplifying the system setting process.

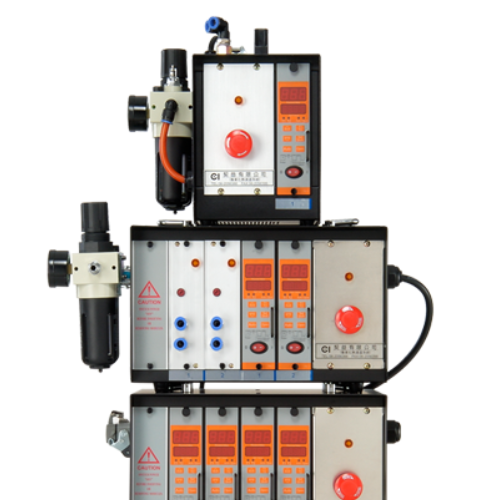

TS-1

Product Features

  • Time precision were 0.1 seconds and 0.01 seconds.
  • Input signal can ve connected to the signal injection or off-mode signal. According to the input signal selection mode, to set the parameters to achieve the best.
  • Selectable mode input signal type for the contact input (NO normally open switch) or voltage input type (DC24V/AC220V), can easily match with the injection molding machine.
  • Trigger modes can be divided into edge-triggered (on-delay) and Level trigger and trigger level position with off-delay.
  • Input signal contains the foloowing three:
a. Contact-type switch (NO normally open switch).
b. DC voltage input DC24V.
C. AC voltage input AC24V~AC265V.
  • Pneumatic valve with DC24Vas standard, or AC220V may be used. A plummer-block mounted style is recommended when multi-point is demanded for higher mobility.
  • Use of the air units ensures the quality of air-flow from the air compressor.
