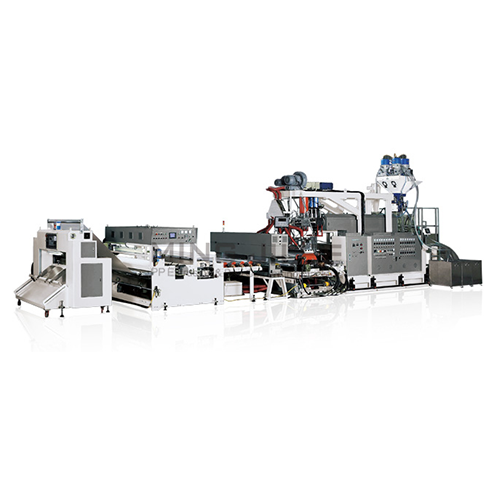

- Stand of extruding unit can be movable forward and backward which will increase convenience on controlling.
- Screw is special mixing function and hi-plasticizing capability design, it incorporates with European imported static mixer to ensure melting of resins, homogeneous color and increase on extruding output.
- T-die is special double throttling design to enable adjustment for sheet thickness to be more accurate.
- Temperature control uses SCR system, tolerance of temperature for that is±1℃, this may precisely control plasticizing processes, sheet thickness, flatness and neatness.
- Embossing station is operated lifted up and pulled down freely. During operation, this will provide more choices for both thick sheet and thin sheet and to upgrade product quality.
- Sheet thickness control uses screw and pressing roller two-way adjustment, this may control the sheet thickness precisely.
- Sheet length is control by PLC and driving by servo motor to get accurate size.
- Electric control box: it completely uses high class and qualified accessories and it is of save space design, operation for that is simple and convenient.
|Effective width||900 or 1,100 or 1,200 mm|
|Thickness range||0.3 - 1.5 mm|
|Output||60 - 250 kg/hr|
|Required power||160 kw|
|Actual power consumption||85 kw|
(1) 20 ton chiller : 1
(2) 300 kg mixer with drier system : 1
(3) Auto. Dosing blender : 1
(4) 56/56 gear pump : 1
(5) Twin shaft non-stop screen changer : 1
(6) Film winder : 1
(7) Corona treatment : 1
(8) Embossing cylinder : 1 pc
|Remarks||As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.|
