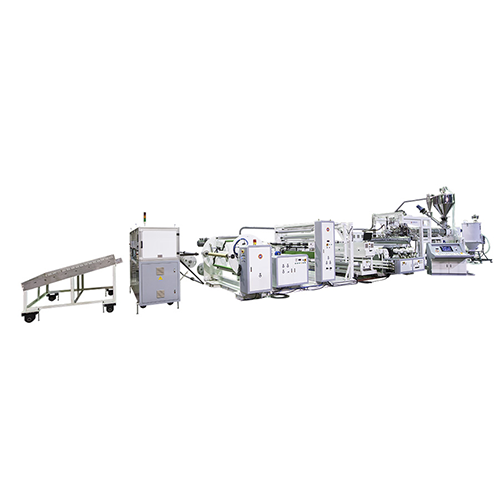

Classification : Mono/Multi Layer Sheet Making Machines
Country:
Phone: 886-6-2532157
Fax: 886-6-2533079
Contact Person: Susan Wei
Resin |
PP |
Product width |
900- 1550 mm |
Product thickness |
Embossing sheet: 0.5-0.6 mm Embossing film: 0.05-0.08 mm |
Capacity |
250-300 kg/hr |
Guarantee capacity |
For embossing sheet: 0.6 mmstretch: 60 m/min For embossing film: 0.06 mm 200-250 kg/hr, 40 m/min |
Extruder |
φ 125MM dia., L/D=32 |
T-Die |
T- shape, CLOEREN made |
Polishing roller unit |
horizontal unit |
Embossing roller |
φ 400 mm x 1800 mm wide x 2 |
Polishing roller |
φ 400 mm x 1800 mm wide x 1 |
Main drive |
driven by 5 HP A.C. inverter motor x 1 3 HP A.C. inverter motor x 2 |
Line speed |
45 m/min |
Oscillating unit |
1 set |
Edge cutting unit |
1 set |
Scrap rewinding unit |
1 set |
Rewinder |
turret type |
Electric cabinet |
1 set |
