KT Series Injection Molding Machine (STANDARD)

Classification : Injection Molding Machine - KT series

TAIWAN KINKI MACHINERY CO., LTD.

TAIWAN KINKI MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-2-2281-3361
Fax: 886-2-2281-8206
Contact Person: Terry Hsieh
KT Series Injection Molding Machine

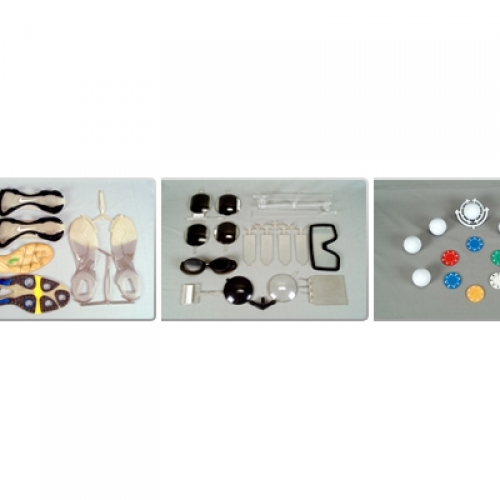

  • Vertical mold clamping and injection, small footprint and high degree of precision. This machine is ideal for injection of medium and small products with inclusions.
  • Dual-cylinder injection system offers high injecting pressure for fast operation, making this injection machine your best choice for production of thin items.
  • Direct-pressure mold clamp allows even injection force, and the relatively low pressure means maximum precision and an incredibly smooth cycle of operation.
  • Choose a platen or a rotary plate in accordance with the type of products to be injected, in order to achieve the best possible in feed and injection effects.
  • This machine offers a wide range of programmable functions including automatic inclusion, extraction and fully-automatic production.
  • There are also many other control systems that facilitate flexible production and keep costs low while maximizing precision.

Machine Type

Unit

K2S(D)

KT-200-D(DM)

KT-300-D(DM)

KT-400-D(DM)

KT-500-D(DM)

KT-600-D(DM)

KT-700-D(DM)

KT-800-D(DM)

KT-900-D(DM)

Screw Diameter

mm

20

25

20

25

30

25

30

35

30

35

40

35

40

45

50

35

40

45

50

40

45

50

55

45

50

55

60

60

65

70

Injection Pressure

kg/cm2

1715

1098

2730

1747

1213

2509

1742

1280

2170

1594

1220

2171

1663

1314

1064

2577

1973

1559

1263

2695

2129

1724

1425

3318

2688

2221

1866

1866

1590

1371

Theoretical Shot Volume

cm3

31

49

31

49

71

59

85

115

99

135

176

135

176

223

275

173

226

286

353

276

349

432

522

381

471

570

678

678

796

923

Max. Shot Weight(PS)

g

29

45

29

45

64

54

77

105

90

135

160

123

160

203

250

158

206

261

321

248

314

388

469

343

424

513

610

617

724

840

oz

1

1.5

1

1.6

2.3

1.9

2.7

3.7

3.2

4.3

5.7

4.3

5.7

7.2

8.9

5.6

7.3

9.3

11.3

8.8

11.2

13.8

16.7

12.2

15.1

18.3

22

22

25

30

Injection Rate

cm3/sec

20

30

22

35

50

36

52

71

51

69

90

82

107

135

167

87

114

144

177

102

129.3

159.6

193

123.6

148.3

178

212.5

247

291

336

Screw Stroke

mm

100

100

120

140

140

180

220

240

240

Screw Speed Max.

rpm

0-215

0-205

0-190

0-175

0-200

0-180

0-220

0-160

0-140

Nozzle Contact Force

tons

-

2.0

2.4

2.6

2.9

3.3

4.2

6

8.7

Nozzle Retraction Stroke

mm

-

140

180

200

220

300

300

320

340

Number of Temperature Control

-

2

3

3

3

4

5

5

5

5

Material Hopper Capacity

|

15

20

20

30

30

30

30

30

30


Machine Type

Unit

K2S(D)

KT-200-D(DM)

KT-300-D(DM)

KT-400-D(DM)

KT-500-D(DM)

KT-600-D(DM)

KT-700-D(DM)

KT-800-D(DM)

KT-900-D(DM)

Clamping Force

tons

15

30

45

55

85

120

160

200

250

Opening Force

tons

7

6.5

8.3

13.5

10.5

15

20

26

28

Platen Size

mm

430x250

520x370

580x430

650x490

740x500

840x620

950x700

1070x810

1200x920

Distance Between Tie Bare

mm

250

355x205

400x250

500x340

560x320

620x400

750x500

870x610

920x640

Min. Mold Height

mm

100/40

160/100

210/150

260/200

250/200

250/200

250

300

300

Opening Stroke

mm

160

180

200

200

250

250

300

350

400

Max. Open Daylight

mm

260/200

340/280

410/350

460/400

500/450

500/450

550

650

700

Ejector Force

tons

1.3/1.3

1.3/1.3

1.3/1.3

1.3/2.1

3.3/3.5

3.3/3.5

4.8

4.8

4.8

Ejector Stroke

mm

45/95

45/95

45/95

45/145

75/145

75/145

75/145

75/145

75/145


Machine Type

Unit

K2S(D)

KT-200-D(DM)

KT-300-D(DM)

KT-400-D(DM)

KT-500-D(DM)

KT-600-D(DM)

KT-700-D(DM)

KT-800-D(DM)

KT-900-D(DM)

Slide Stroke

mm

260

350

420

500

500

540

700

885

1000

Rotary Station

-

-

-

-

-

-

-

-

-

-

Max. Mold Weight

kg

60

90

120

150

200

300

380x2

450x2

500x2

Station Accuracy

mm

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02


Machine Type

Unit

K2S(D)

KT-200-D(DM)

KT-300-D(DM)

KT-400-D(DM)

KT-500-D(DM)

KT-600-D(DM)

KT-700-D(DM)

KT-800-D(DM)

KT-900-D(DM)

Max. Hydraulic Pressure

kg/cm2

140

140

140

140

140

140

140

175

175

Pump Output

liters/min

19

26

39

47

76

96

118

136

158

Oil Reservoir Capacity

liters

80

100

130

150

180

200

350

410

720

Cooling Water Consumption

liters/hr

400-600

400-600

600-800

800-1000

1200-1500

1500-1800

1400-1600

1800-2000

2000-2200

Pump Motor Power

kw

2.2

3.5

5.5

7.5

11

14.7

18.75

30

36.7

Barrel Heating Power

kw

2

2.7

3.5

4.5

5.6

7.5

10

14.3

18

Total Wattage

kw

4.2

6.2

9

12

16.6

22.2

28.75

44.3

54.7


Machine Type

Unit

K2S(D)

KT-200-D(DM)

KT-300-D(DM)

KT-400-D(DM)

KT-500-D(DM)

KT-600-D(DM)

KT-700-D(DM)

KT-800-D(DM)

KT-900-D(DM)

Machine Weight

tons

0.5/0.55

1.1/1.2/1.3

1.4/1.5/1.6

2.1/2.3/2.5

4.5/4.8/5

4.9/5.2/5.4

5.2/5.6

5.5/5.9

6.5/7.2

Machine Dimensions(L x W x H)

m

1.4x0.8x2.1

1.6x1.24x1.9

1.7x1.35x2.15

1.8x1.45x2.65

2.0x1.7x3.2

2.4x1.6x3.1

2.1x1.5x4.3

2.1x1.7x4.5

2.5x2.2x5.2

Shipping Weight

tons

0.75/0.85

1.3/1.5/1.9

1.7/1.9/2.1

2.6/2.9/3.2

5.1/5.6/5.8

5.6/6/6.1

5.6/6.3

5.9/6.5

7.2/8.0

Shipping Measurements(L x W x H)

m

1.6x1.0x2.23

1.8x1.45x2.1

1.9x1.5x2.2

2.1x1.7x1.5

4.2x2.0x1.7

4.6x2.2x1.8

4.7x2.4x1.9

5.0x2.4x2.1

6.0x2.4x2.4
