PRM-TAIWAN

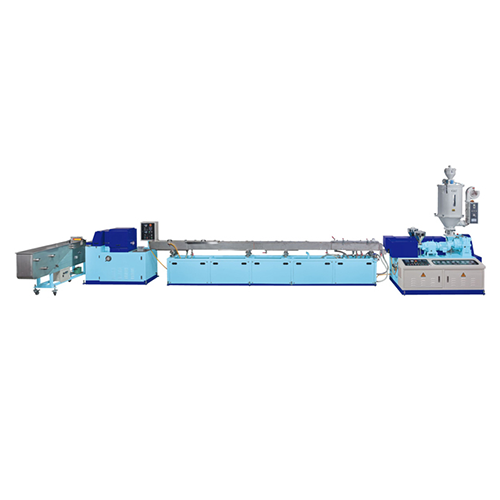

Classification : Straw Machine
Country: Taiwan
Phone: 886-4-2359-0788
Fax: 886-4-2359-0567
Contact Person: Ms.Kuo
Inquiry Now

MODEL

JS 285/H3V

JS 286/H3V


Feature

Material



PLA

PLA


Color



3

3


Stripes



Straight

Straight


Straw dia.

mm

Ø5.0 - Ø8.0

Φ5.0 – Φ8.0


Straw Length

mm

200 - 270

200 – 270


Capacity

pcs/min

1000 – 1400

1200 – 1800


Extruding Output Range

kg/hr

35 – 50

40 – 65


Extruder

Screw dia.

Ømm

55 x 1, 30 x 2

65 x 1, 35 x 2


Screw L/D



25 : 1

25:1


Driving Motor

hp

15 HP + Inverter x 1, 1 HP + Inverter x 2

AC 20Hp + Inveter x 1, AC 1Hp + Inverter x 2


Automatic Thermo-Controller

set

9

9


Vacuum
Water Tank

Vacuum Forming Device

set

1

1


Vacuum Pump & Motor

hp

½

½


Water Storage Tank

set

1 x 5.5M

1 x 5.5M


Take Up &
Cutting Unit

Pulling Belts

set

1

1


Motor

hp

AC 3 HP with inverter

Servo Motor


Cutting Knife

set

1

1


Conveyor

set

1

1


Others

Total Electricity Used

kw

36

41


Dimension LxWxH

m

10.2 x 2.07 x 2.86 (incl. hopper dryer)

9.9 x 1.42 x 2.85 (incl. hopperdryer)


Machine Weight

ton

2.3

2.7
