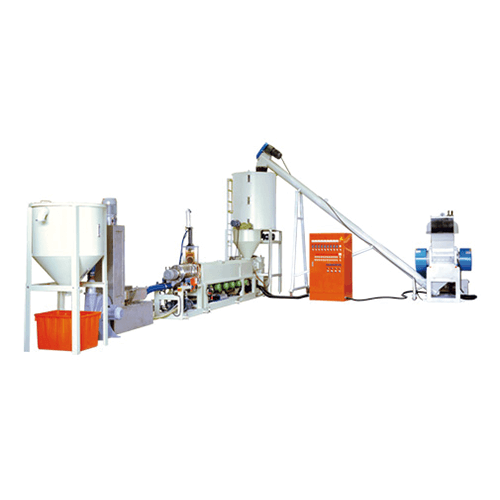

Film / Bags Waste Plastic Recycling Machine KCR-85/100/120

Classification : Plastic Recycling Machinery

KANG CHYAU INDUSTRY CO., LTD.

Country: Taiwan

Phone: 886-2-22856880

Fax: 886-2-22856883

Contact Person: Gina Kang

E-catalog Video Inquiry Now

SUITABLE MATERIAL: HDPE/LDPE/LLDPE

KCR-85

Output: 80-120 kgs / hr

KCR-100

Output: 80-200 kgs / hr

KCR-120

Output: 200-300 kgs / hr

MODEL	KCR-85	KCR-100	KCR-120
SUITABLE MATERIAL	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE
OUTPUT	80-120 kgs / hr	80-200 kgs / hr	200-300 kgs / hr
CRUSHER & SCREW CONVER SYSTEM
CRUSHER	15 HP	15 HP	30 HP
SCREW CONVER	2 HP	2 HP	2 HP
INTO SIZE	5"	5"	5"
EXTRUDER
WASTE COLLECTING TANK	1400 L	1400 L	1400 L
COLLECTING TANK MOTOR	2 HP + Inverter	2 HP + Inverter	2 HP + Inverter
SPIRAL TYPE FEEDING DEVICE FOR HOPE	2 HP + Inverter	2 HP + Inverter	2 HP + Inverter
GEAR BOX	Direct Connect Type	Direct Connect Type	Direct Connect Type
SCREW DIAMETER	Ø 85 mm	Ø 100 mm	Ø 120 mm
SCREW DIAMETER	Single Dega Sification	Single Dega Sification	Single Dega Sification
SCREW L/D RATIO	30:01:00	30:01:00	30:01:00
HEATING CAPACITY	45.6 kw	71.7 kw	80.8 kw
AUTO THERMO CONTROL	5 zone	6 zone	7 zone
DRIVING MOTOR	AC 40 hp + Inverter	AC 60 hp + Inverter	AC 100 hp + Inverter
DIE FACE CUTTING & SCREEN CHANGER
DIE TYPE	Circular Shape Extrusion Die	Circular Shape Extrusion Die	Circular Shape Extrusion Die
HEATER	10.2 kw	10.6 kw	13.4 kw
AUTO THERMO CONTROL	2 zone	2 zone	2 zone
PELLETIZING	2 PCS(SPRING)	2 PCS(SPRING)	2 PCS(SPRING)
PELLETIZING MOTOR	1 HP + Inverter	1 HP + Inverter	1 HP + Inverter
SCREEN CHANGER	Hydraulic Cylinder	Hydraulic Cylinder	Hydraulic Cylinder
COOLING SYSTEM
TYPE	Water Cooling	Water Cooling	Water Cooling
COOLING WATER DRUM	1 Set	1 Set	1 Set
WATER PUMP	2 HP x 2	2 HP x 2	2 HP x 2
COOLING WATER TANK	1 Set	1 Set	1 Set
DEHYDRATOR & CENTRIFUGAL SEPARATOR SYSTEM
DEHYDRATOR	1 Set	1 Set	1 Set
DEHYDRATOR MOTOR	5 HP	5 HP	5 HP
COLLECTING SYSTEM
AIR BLOWER	5 HP	5 HP	5 HP
COLLECTING TANK	600 L	600 L	600 L
PELLET CUTTING MACHINE
MOTOR	-	-	-
CUTTER MOTOR	-	-	-

* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
