- EPE foam cutting machine is special design for buyer to cut EPE foam sheet / Air bubble film more efficiently.
- This machine is special design for cutting EPE foam sheet and in-line hole punching on same machine.

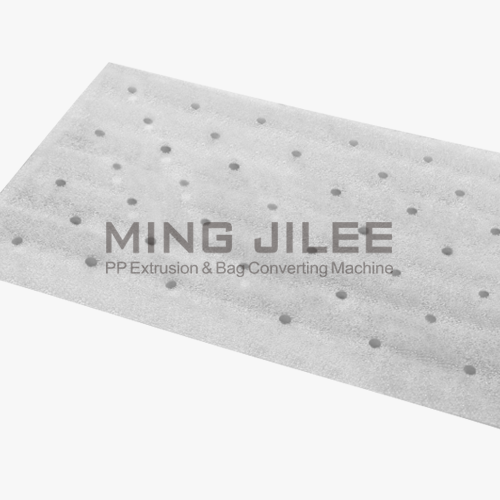

- For small dia. of hole, like 8 mm hole. We can punch the holes and remove the holes fully automatically. For the numerous of waste, MING JILEE design the vacuum system to collect all the waste. It is very easy to collect the waste by collecting 1 bag.

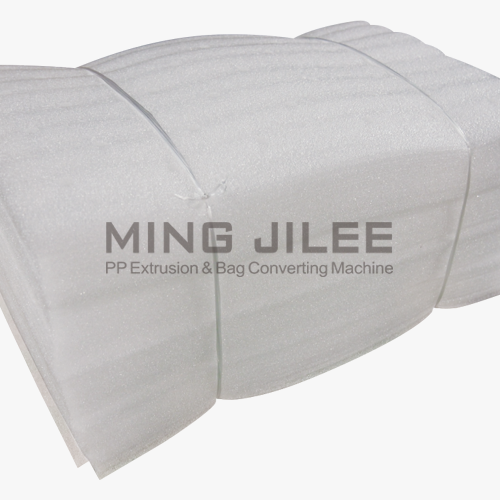

- Machine is equipped auto conveyor to get very good stacking result on the finished product. The operator can take the stack sheet to next process for tying or put in the carton box.
- We offer the optional equipment for the cold pin stacking. If the buyer need to cut long sheet and request to get good stacking for the long sheet, then they can choose this additional solution.
||1 - 4 mm|
|Effective working width||65 inch|
|Effective working length||20 inch|
|Output||50 - 80 cycle/min (depend on thickness and bag size)|
|Machine dimension||10,000 (L) × 3,000 (W) × 2200 (H) mm|
|Machine weight||4586 kg|
|Required power||12.5 kw|
|Off-line Fully automatic tying machine||1 set|
Waste trimming and rewinding system
a. Only One side trimming
b. Slitting knife
c. Waste rewinding device
1set (max diameter1200 mm、width 152.4 mm)
|The complete of holes punching mold with station for easy to exchanging||
|Remarks||As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.|
