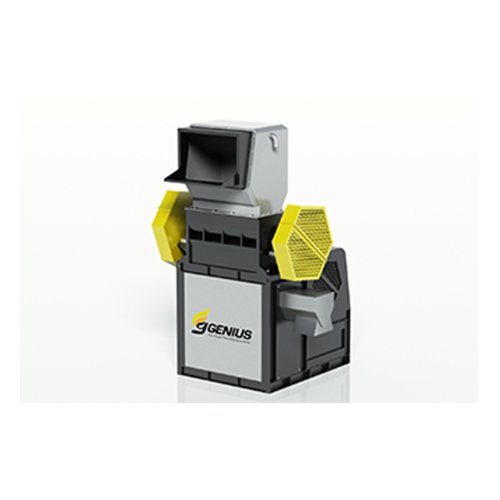

Pipe Crusher
Classification : Plastic Crusher & Shredder
GENIUS MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-2630-1621
Fax: 886-4-2630-1716
Contact Person: Peter Tsai

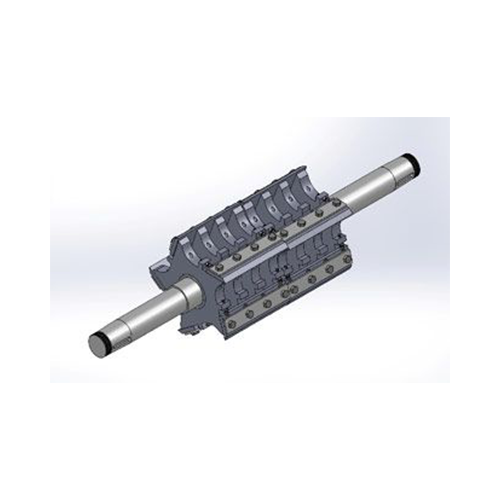

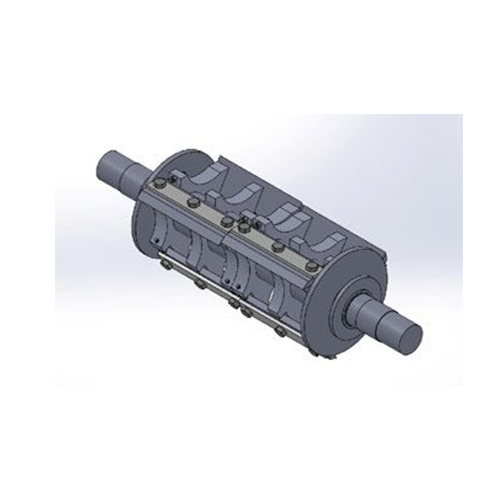

Our machines are equipped with hydraulic opening for easy cleaning, with special design characteristics of rotator knife wheel offers large cutting angle, require less space. Thick walled sections are specially designed on tops and tails to process any typical waste like molded items, pipes, profiles, films, sheets and etc.
| Model |
Rotor Diameter(mm) |
Rotor Lenth(mm) |
Enterance Size(mm) |
Main Drive |
Screen Size(mm) |
Capacity(Kg/Hr) |
|
GP-380 |
380 | 500 | 300×300 | 20~60HP(15~45KW) | >6 | 400~1200 |
| GP-500 | 500 | 500~1200 | 500×1000 | 40~100HP(30~75KW) | >6 | 500~1200 |
| GP-600 | 600 | 800~1600 | 600×1000 | 60~150HP(45~110KW) | >10 | 800~1600 |
| GP-800 | 800 | 1000 | 800×1200 | 100~200HP(75~150KW) | >10 | 1200~2000 |
Materials before process
Materials after process
