Rubber Oil Seal Vulcanization Molding Machine (Slab Side Type)

Classification : Slab Side Rubber Oil Seal Vulcanization Molding Machine

TUNG YU HYDRAULIC MACHINERY CO., LTD.

TUNG YU HYDRAULIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-49-2253588
Fax: 886-49-2252998
Contact Person: Sales Department

Liquid silicone injection molding machine series has high speed vacuum system ─ eliminates air inside cured rubber to have products with zero defect quality and simplicity in mechanism for easy maintenance.

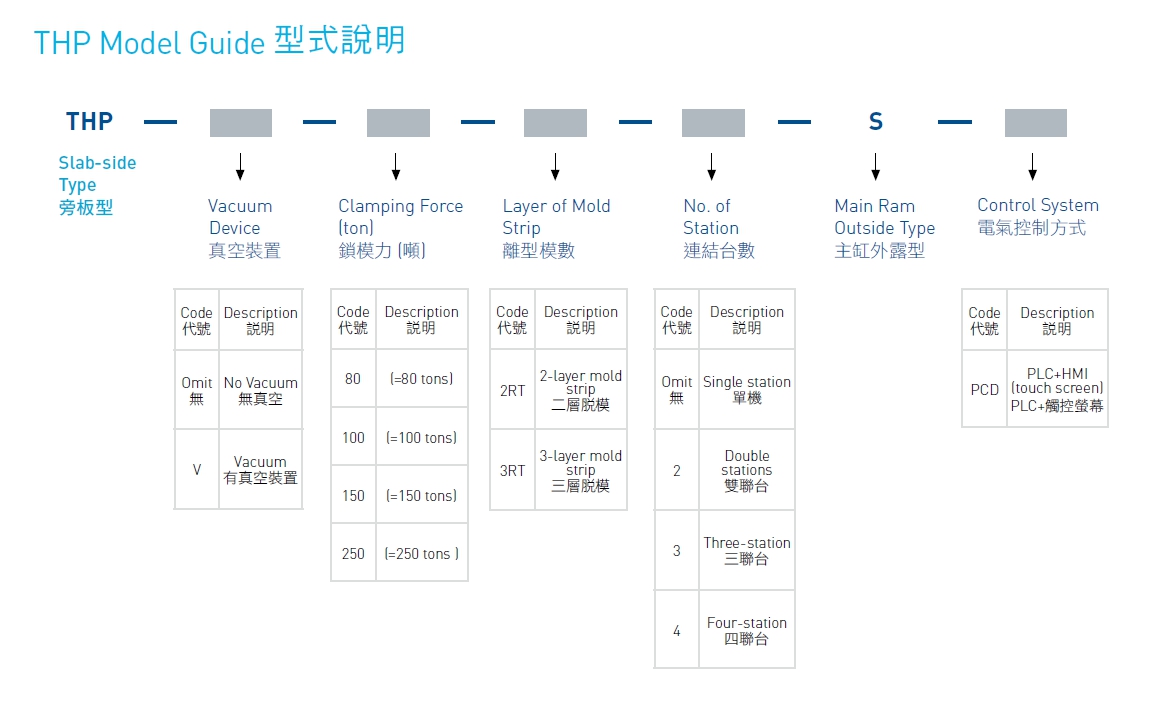

Machine Type

THP-V-80

THP-V-100

THP-V-150

THP-V-250

Clamping Force

ton

80

100

150

250

Piston Diameter

mm

∮225

∮250

∮300

∮400

Heating Platen Size

mm

250x300

350x400

450x480

570x610

Bolster Plate Size

mm

290x320

390x420

500x520

620x620

Daylight

mm

200

Stroke

mm

140

Vacuum Accessories

Vacuum Cover Type

Power Consumption

kW

4.8

8.76

8.76

18.2

Turnover Degree

60° (2RT)

45° (2RT)

45° (3RT)

Dimension (mm)

2RT

1165 x 1976 x 1987

1145 x 2080 x 2000

2362 x 1365 x 1982

1032 x 3026 x 2085

3RT

1534 x 1970 x 1870

1510 x 2262 x 1926

2362 x 1365 x 1982

1718 x 3139 x 2073
