Classification : Continuous Extrusion Blow Molding Machines
Country:
Phone: 886-6-2532157
Fax: 886-6-2533079
Contact Person: Susan Wei
- Energy Saving
Power consumption 40~50%↓
Production output 20~25%↑
- ECO
No hydraulic oil, no pollution,
Noise level 20dB reduced.
- Industry 4.0
Smart manufacturing, with SCADA system.
- Low energy consumption, less carbon footprint, no pollution, less maintenance cost 25% - 30% less energy can be saved by All Electric machine compared to traditional hydraulic one.
- Reduce, Reuse, Recycle in Plastic
- Capable to process more recycled grade or PCR in the middle layer of a 3 layer canister. 30% weight reduction can be achieved without compromising the quality from the drop test and stacking stability with an improved design on the shape. With 3 layer structure the use of master batch can be saves around 60-80%. The total saving of plastic in a year is tremendous. In addition, when less plastic being used per canister, with less heat, fast cooling cycle can increase the production rate.
- Industry 4.0 Smart Manufacturing control system All production data can be collected and recorded for analysis to improve the production control in many ways:
* Plastic consumption in virgin grade, regrind grade, master batch
* Energy consumption data in hour/month/year, Processing condition with alarm signals Preventive maintenance instructions to keep machine always at high working efficiency.
* Entire system in use is digital communication protocol to deliver accurate readings, also by Oracle MySQL with no size limitation and use Client/Server version can link to 5 users remote at same time.
Machine Model |
FK/EHB-55G/100G/55GT20SD |
Extruders |
55/100/55mm, L/D=30:1 |
Main drive |
40/125/40 HP |
Max extrusion output |
90 / 320 / 90 kg/hr |
Product capacity |

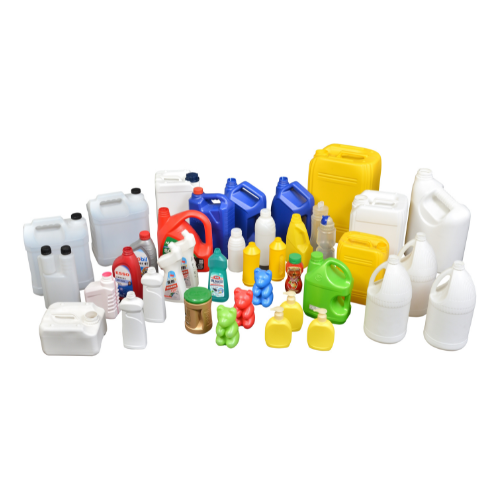

20L jerrycan |
Product weight |
850 g |
Production rate |
257 BPH (cycle time: 28 sec.) |
