Introduction

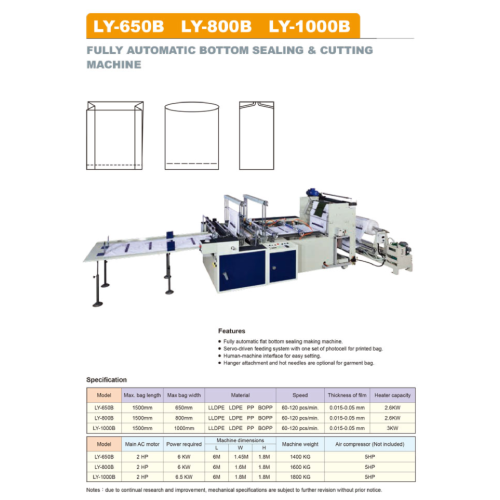

- LY-650B / 800B / 1000B series is fully automatic flat, bottom sealing bag making machine. It equips with servo-driven feeding system and human-machine interface for customers easy and friendly operation. Hanger attachment and hot-needle system can be optional on LY-1000B for customers to produce garment bag.
Features
- Fully automatic flat bottom sealing making machine.
- Servo-driven feeding system with one set of photocell for printed bag.
- Human-machine interface for easy setting.
- Hanger attachment and hot needles are optional for garment bag.
| Model | Max. bag length (mm) | Max bag width (mm) | Material | Speed (pcs/min) | Thickness of film (mm) | Heater capacity (KW) |
|---|---|---|---|---|---|---|
| LY-650B | 1500 | 650 | LLDPE LDPE PP BOPP | 60-120 | 0.015-0.05 | 2.6 |
| LY-800B | 1500 | 800 | LLDPE LDPE PP BOPP | 60-120 | 0.015-0.05 | 2.6 |
| LY-1000B | 1500 | 1000 | LLDPE LDPE PP BOPP | 60-120 | 0.015-0.05 | 3 |
| Model | Main AC motor | Power required (KW) | Machine dimensions | Machine weight (KG) | Air compressor (Not included) |
||
|---|---|---|---|---|---|---|---|
| L (m) | W (m) | H (m) | |||||
| LY-650B | 2 HP | 6 | 6 | 1.45 | 1.8 | 1400 | 5HP |
| LY-800B | 2 HP | 6 | 6 | 1.6 | 1.8 | 1600 | 5HP |
| LY-1000B | 2 HP | 6.5 | 6 | 1.8 | 1.8 | 1800 | 5HP |
Notes：due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
