Die Arm

Classification : Additional Products

FORWELL PRECISION MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-8345196

Fax: 886-4-8345197

Contact Person: James Hsiao

Inquiry Now

Bolster extensions or Die Arms make it very easy and simple to pull out or push a die in. It also allows for a forklift or crane to remove and load dies easily. Die stoppers at the end of each Die Arm will prevent the die from rolling off but at the same time provide easy die loading onto the bolster extensions.

The Die Arms are equipped with hardened rollers to allow for a long service life and accurate die loading. The Die Arms can be selected according to carrying capacity, and are available in three different types: RC detachable type, RD drop-down type and RE/RF folding type.

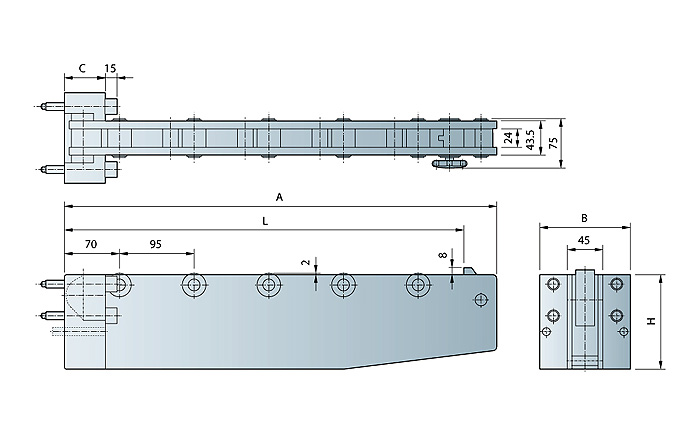

RC Bolster Extension Series (Light Duty, Medium Duty)

The bolster extension makes it easy to move the dies to an accessible area of the press for convenient die changing with a crane or forklift truck. Available in three different designs: detachable RC series, drop-down RD series(alternate model), and folding RE/RF series.

Model	Die Travel(L)	Max.Load(kg)	Overall Length(A)
RC-500-800	500	800	550
RC-500-1250	500	1250	550
RC-500-1600	500	1600	550
RC-700-600	700	600	750
RC-700-1000	700	1000	750
RC-800-800	800	800	850
RC-800-1600	800	1600	850
RC-800-2000	800	2000	850
RC-900-900	900	900	950
RC-1000-1600	1000	1600	1050

Model	Fixture			Rollers	Installed Dimensions	Fixture Model
	B	C	H
RC-500-800	115	46	120	5	A type	RC-120
RC-500-1250			160			RC-160
RC-500-1600		50	200		B type	RC-200
RC-700-600		46	120	7	A type	RC-120
RC-700-1000			160			RC-160
RC-800-800			160	8
RC-800-1600		50	200		B type	RC-200
RC-800-2000			240			RC-240
RC-900-900			200	9		RC-200

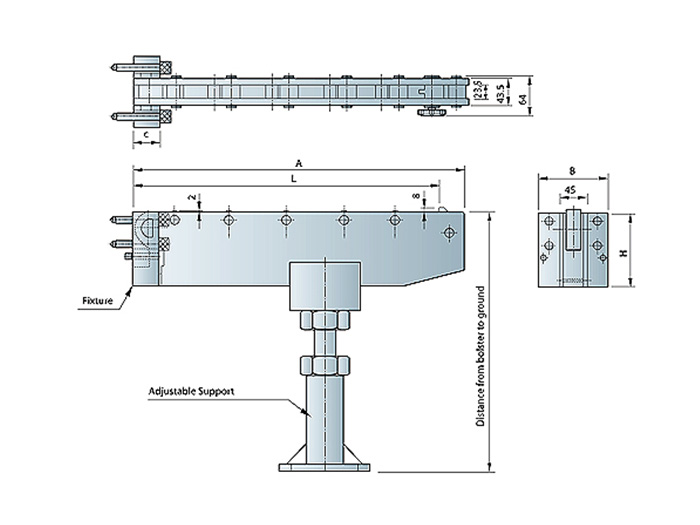

RC Bolster Extension Series (Heavy Duty)

Model	Die Travel(L)	Max.Load(kg)	Overall Length(A)
RC-1200-2500	1200	2500	1250
RC-1300-2500	1300	2500	1350
RC-1400-2500	1400	2500	1450
RC-1500-2500	1500	2500	1550
RC-1600-2500	1600	2500	1650
RC-1700-2500	1700	2500	1750

* Requires adjustable support if die travels over 1000mm. These models come standard with adjustable support.
* Contact us for other specifications.

Model	Fixture			Rollers	Installed Dimensions	Fixture Model
	B	C	H
RC-1200-2500	115	46	120	14	A type	RC-120
RC-1300-2500				15
RC-1400-2500				17
RC-1500-2500				18
RC-1600-2500				19
RC-1700-2500				20

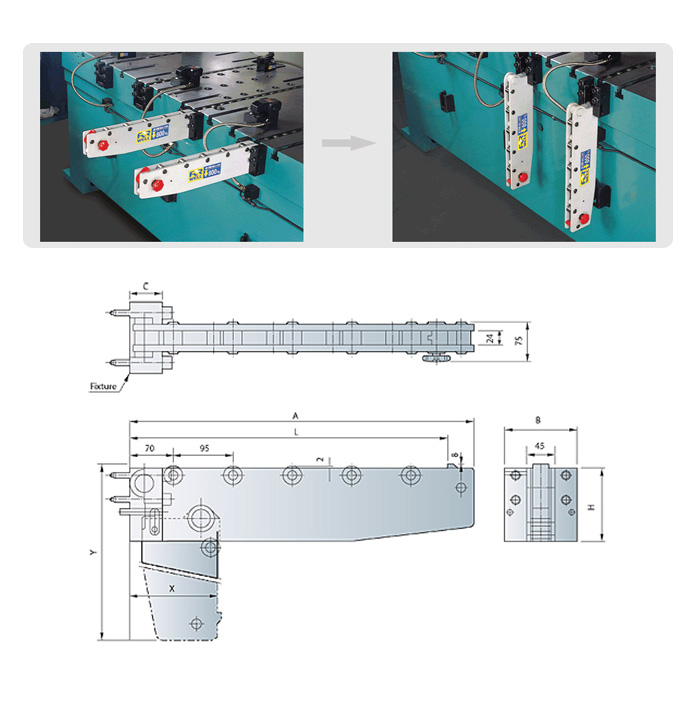

RD Bolster Extension Series (Drop-Down RD Series)

Model	Die Travel (L)	Max.Load(kg)	Overall Length(A)
RD-500-800	500	800	550
RD-500-1250	500	1250	550
RD-500-1600	500	1600	550
RD-700-600	700	600	750
RD-700-1000	700	1000	750
RD-800-800	800	800	850
RD-800-1600	800	1600	850
RD-800-2000	800	2000	850
RD-900-900	900	900	950
RD-1000-1600	1000	1600	1050

Model	Fixture			Rollers	Installed Dimensions	Drop-Down
Model	B	C	H	Rollers	Installed Dimensions	X	Y
RD-500-800	115	52	120	5	A type	140	620
RD-500-1250			160		A type	180	660
RD-500-1600			200		B type	220	700
RD-700-600			120	7	A type	140	850
RD-700-1000			120	7		180	860
RD-800-800			160	8		180	960
RD-800-1600			200		B type	220	1000
RD-800-2000			240			260	1040
RD-900-900			200	9		220	1100
RD-1000-1600			200	10		220	1200

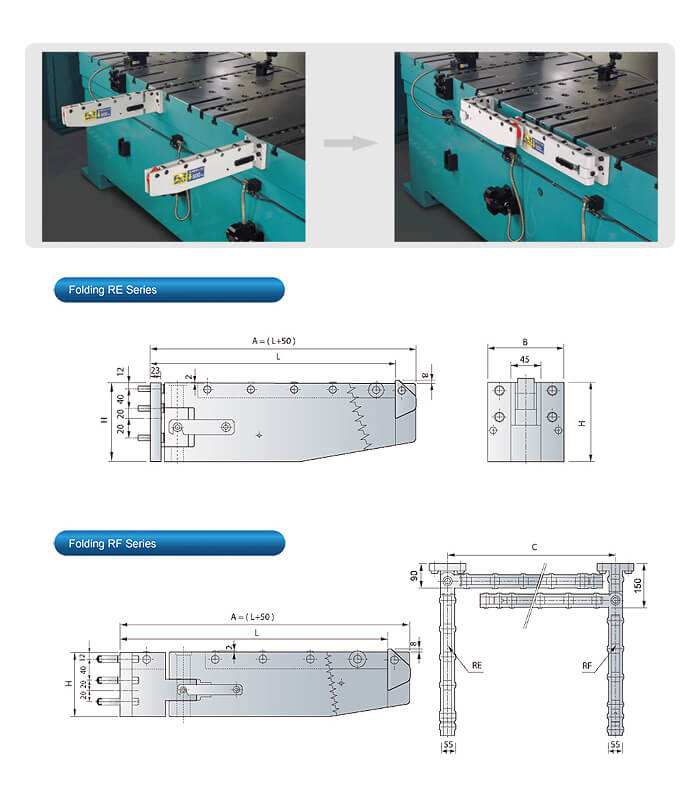

RE/RF Bolster Extension Series (Folding RE/RF Series)

Model	Die Travel(L)	Max.Load ( kg )	Overall Length ( A )
RE.RF-500-800	500	800	550
RE.RF-500-1250	500	1250	550
RE.RF-700-600	700	600	750
RE.RF-700-1600	700	1600	750
RE.RF-800-800	800	800	850
RE.RF-800-1600	800	1600	850
RE.RF-500-1600	500	1600	550
RE.RF-900-900	900	900	950

Model	Fixture			Rollers	Installed Dimensions	Drop-Down
Model	B	C	H	Rollers	Installed Dimensions	X	Y
RE.RF-500-800	115	525	120	5	A type	90	150
RE.RF-500-1250		525	160	5
RE.RF-700-600		725	120	7
RE.RF-700-1600		725	200	7	B type
RE.RF-800-800		825	160	8	A type
RE.RF-800-1600		825	200	8	B type
RE.RF-500-1600		525		5
RE.RF-900-900		925		9
