Classification : Narrow Slitter & Inspection
Country: Taiwan
Phone: 886-4-23587272
Fax: 886-4-23580882
Contact Person: Vicky Chen
- Film Accumulation
- Unilux Strobe & Operator View Table
- Shear Knifes
- Single Rewind Shaft
- Air Shafts
- Digital Edge Guide
- Unwind & Splice Table
- Foot Pedals
- Touch Screen
- Web Gripper

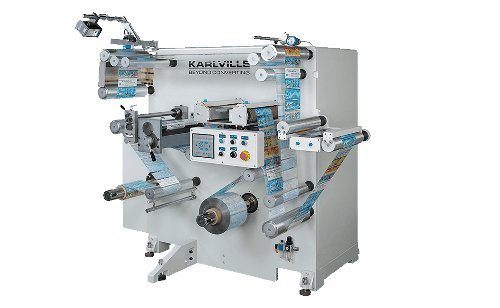

Model | ProLabel |
---|---|
Materials | Self Adhesive Label Stock |
Available widths | 350mm/450mm |
Speed | 300 meters per minute |
Unwind diameter | 700mm / 1000mm |
Rewind diameter | 500mm |
Core sizes | 1- 6” standard 3” (76”mm) |
Unwind splice table | Standard |
Unwind tension system | Auto control by calculation |
Unwind shaft | Cantilever air shaft |
Unwind tension control | Powder brake |
Unwind edge guide | E+L Germany – ultra sonic edge; Line & edge optional |
Separate unwind for 1000mm diameter unwind rolls | Optional |
Nip design | Driven ac vector motor, pneumatically actuated |
Rewind operator view table | Standard; synchronized strobe |
Rewind shafts | Single shaft – bi directional |
Rewind standard shafts | Quick change air shaft |
Rewind differential shaft option | N/A |
Rewind tension system | Auto control by calculation |
Rewind tension control | Driven AC vector motor |
Lay-on roller for rewind shafts | N/A |
Web clamps for rewinds | Standard |
Waste & trim removal | Optional |
Splice table | Standard |
Razor Slitting | N/A |
Shear slitting | Standard – 3 knives |
Smart label counter management system – two systems available | The LC1 smart counter uses advanced technology complemented by advanced inspection algorithms for precise label count. |
The LC2 smart counter uses advanced technology for precise label count, multi-lane missing label detection, matrix remains detections and automatic fault positioning/management system. | |
Flag detection | Optional |
Missing label sensors | 8 Channel optional |
Capacitive sensor | Optional |
Reflective sensor | Optional |
Vision system for 100% inspection separate stand for vision system installation | -Accumulation included for fault position, fault will stop at operator viewing table. -If fault defect confirmed, operator jogs fault to splice table. -Machine speed during 100% inspection – 300m/min -Optional –web guide system and mechanical device for swing table for vision system requirements. |
