ISOTHANE TPU resins are high quality environmental friendly materials and available in a wide range of hardnesses in polyester and polyether-based formulations. ISOTHANE exhibit the valuable characteristics of flexible rubber and rigid plastics and their wide spectrum of mechanical properties meet customers’ demands in extensive applications.
ISOTHANE TPU resins portfolio includes high transparency grades, hot melt grades, breathable film grades, anti-static grades, engineering grade, low compression grades, bio-renewable and flame retardant grades
● High Tensile Strength
● High Mechanical Property
● High Fuel & Oil Resistance
● Good Chemical Resistance
● Low Temperature Resistance
● Excellent Hydrolytic Stability
● Bio-compatibility
● Resistance To Micro-organism
Item Name | High Performance Engineering TPU Composites |
---|---|

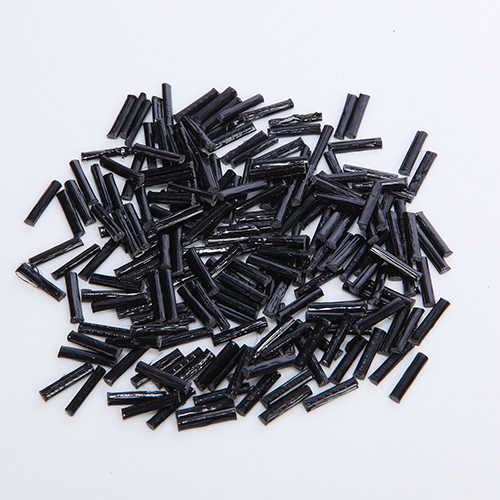

Characteristics | ISOTHANE® Long glass fiber series. They exhibits excellent tensile and flexural strength, toughness,abrasive resistance, high rigidity, and maintenance of good physical properties under UV exposure. ISOTHANE® Long glass fiber series can be injection molded and extruded. |
Suggested Applications | Automotive and Hand Tools |
Grade | Tensile Strength kg/cm2(Mpa) | Elongation@Break (%) | Flexural Strength kg/cm2(Mpa) | Flexural Modulus kg/cm2(Mpa) |
Notched lzod Impact 23° kg-cm/cm2 (J/m) |
Specific Gravity | Mold Shrinkage (%) | Application |
---|---|---|---|---|---|---|---|---|
1.TPU (Thermoplastic Polyurethane) |
High Rigidity Heat Resistance Dimensional Stability |
|||||||
8102LGF40 | 1,930 (190) | 2 | 2,440 (240) | 102.000 (10000) | 29 (290) | 1.5 | 0.1~0.2 |
Mechanical Parts Medical Equipment Sports Equipment |
8102LGF50 | 2,040 (200) | 2 | 2,750 (270) | 150,900 (14800) | 30 (300) | 1.6 | 0.1~0.2 | |
8102LGF60 | 2,140 (210) | 2 | 2,950 (290) | 158,000 (15500) | 31 (310) | 1.7 | 0.05~0.2 | |
8101LGF60 | 2,140 (210) | 2 | 3,260 (320) | 183,000 (18000) | 25 (250) | 1.7 | 0.05~0.2 | |
2.PA (Polyamide, Nylon) |
Excellent Strength Heat Resistance Dimensional Stability |
|||||||
NL6130 | 1,800 (176) | 2 | 2,900 (284) | 110,000 (10791) | 25 (245) | 1.35 | 0.1~0.2 |
Mechanical Parts Sports Equipment |
NL6140 | 2,000 (196) | 2 | 3,000 (294) | 120,000 (11772) | 30 (294) | 1.45 | 0.1~0.2 | |
NL6150 | 2,200 (216) | 2 | 3,500 (344) | 140,000 (13739) | 40 (400) | 1.57 | 0.05~0.2 | |
NL6240 | 2,200 (216) | 2 | 3,100 (304) | 120,000 (11776) | 20 (200) | 1.45 | 0.05~0.2 | |
NL6250 | 2,400 (236) | 2 | 3,600 (353) | 150,000 (14720) | 32 (320) | 1.58 | 0.05~0.2 | |
NL6340 | 2,000 (196) | 2 | 3,200 (314) | 165,000 (16192) | 30 (300) | 1.5 | 0.05~0.2 | |
NL6350 | 2500 (245) | 2 | 3,750 (363) | 195,000 (18646) | 35 (350) | 1.59 | 0.05~0.2 | |
NL6360 | 2,600 (255) | 1.8 | 4,000 (393) | 200,000 (19627) | 37 (370) | 1.7 | 0.05~0.2 | |
3.PP (Polypropylene) |
Excellent Stiffness Heat Resistance Dimensional Stability |
|||||||
PL6230 | 1,000 (98) | 2 | 1,600 (156) | 60,000 (5886) | 16 (156) | 1.12 | 0.1~0.3 |
Mechanical Parts Automotive Part |
PL6240 | 1,100 (107) | 2 | 1,700 (166) | 85,000 (8338) | 25 (245) | 1.2 | 0.1~0.3 | |
PL6250 | 1,250 (122) | 2 | 2,000 (196) | 110,000 (10791) | 30 (294) | 1.33 | 0.1~0.3 |
ISOTHANE® 8101LGF60
High Performance Engineering TPU Composites Characteristics:
8101LGF60 product is long glass fiber reinforced engineering thermoplastic Polyurethanes. It exhibits excellent tensile and flexural strength, toughness, abrasive resistance, high rigidity, and maintenance of good physical properties under UV exposure. The product can be injection molded and extruded.
ITEMS | UNITS | TEST METHOD | VALUES |
---|---|---|---|
PHYSICAL | |||
Primary Additive | % | (TGA) | 60 |
Specific Gravity | gr./cm3 | D-792 | 1.70 |
Shrinkage | % | D-955 | 0.1~0.2 |
Water Absorption, | % | 24 hours at 23ºC | — |
Hardness | Shore D | D-2240 | 90 |
MECHANICAL | |||
Tensile Strength | Mpa | D-638 | 210 |
Tensile Modulus | Mpa | D-638 | — |
Elongation @ break | % | D-638 | 2 |
Flexural Strength | Mpa | D-790 | 320 |
Flexural Modulus | Mpa | D-790 | 18,000 |
Izod Impact Strength | J/m |
D-256 (Notched 1/8”., 23 ºC ) |
250 |
THERMAL | |||
Heat Distortion Temp. | ºC | D-648 (1.8MPa) | 95 |
Vicat Softening Point | ºC | D-1525 | 190 |
OTHER | |||
Flammability | UL-94 | (1/8”) | HB |
Processing Information:
Typical Injection Molding Conditions for 8101LGF | |
Drying Temperature: 90~110℃(180~230℉) / 3 ~ 4 hrs.
|
|
Barrel Temperatures: Rear Middle Front Nozzle Melt Temperature Mold Temperature |
200~210℃ (400~410℉) 220~230℃ (430~445℉) 230~245℃ (445~475℉) 240~250℃ (470~480℉) 220~250℃ (430~480℉) 95~110℃ (185~230℉) |
ISOTHANE® 8102LGF
High Performance Engineering TPU Composites Characteristics:
8102LGF product is long glass fiber reinforced engineering thermoplastic Polyurethanes. It exhibits excellent tensile and flexural strength, toughness, abrasive resistance, high rigidity, and maintenance of good physical properties under UV exposure. The product can be injection molded and extruded.
ITEMS | UNITS | TEST METHOD | 8102LGF40 | 8102LGF50 | 8102LGF60 |
---|---|---|---|---|---|
PHYSICAL | |||||
Primary Additive | % | (TGA) | 40 | 50 | 60 |
Specific Gravity | gr./cm3 | D-792 | 1.50 | 1.60 | 1.70 |
Shrinkage | % | D-955 | 0.1~0.2 | 0.1~0.2 | 0.1~0.2 |
Water Absorption, | % | 24 hours at 23ºC | — | — | — |
Hardness | Shore D | D-2240 | 85 | 87 | 90 |
MECHANICAL | |||||
Tensile Strength | Mpa | D-638 | 190 | 200 | 210 |
Tensile Modulus | Mpa | D-638 | — | — | — |
Elongation @ break | % | D-638 | 2.0 | 2.0 | 2.0 |
Flexural Strength | Mpa | D-790 | 240 | 270 | 290 |
Flexural Modulus | Mpa | D-790 | 10,000 | 14,800 | 15,500 |
Izod Impact Strength | J/m |
D-256 (Notched 1/8”., 23 ºC ) |
290 | 300 | 310 |
THERMAL | |||||
Heat Distortion Temp. | ºC | D-648 (1.8MPa) | 90 | 90 | 95 |
Vicat Softening Point | ºC | D-1525 | 180 | 185 | 190 |
OTHER | |||||
Flammability | UL-94 | (1/8”) | HB |
Typical Injection Molding Conditions for 8102LGF | |
Drying Temperature: 90~110℃(180~230℉) / 3 ~ 4 hrs.
|
|
Barrel Temperatures: Rear Middle Front Nozzle Melt Temperature Mold Temperature |
200~210℃ (400~410℉) 220~230℃ (430~445℉) 230~245℃ (445~475℉) 240~250℃ (470~480℉) 220~250℃ (430~480℉) 95~110℃ (185~230℉) |
