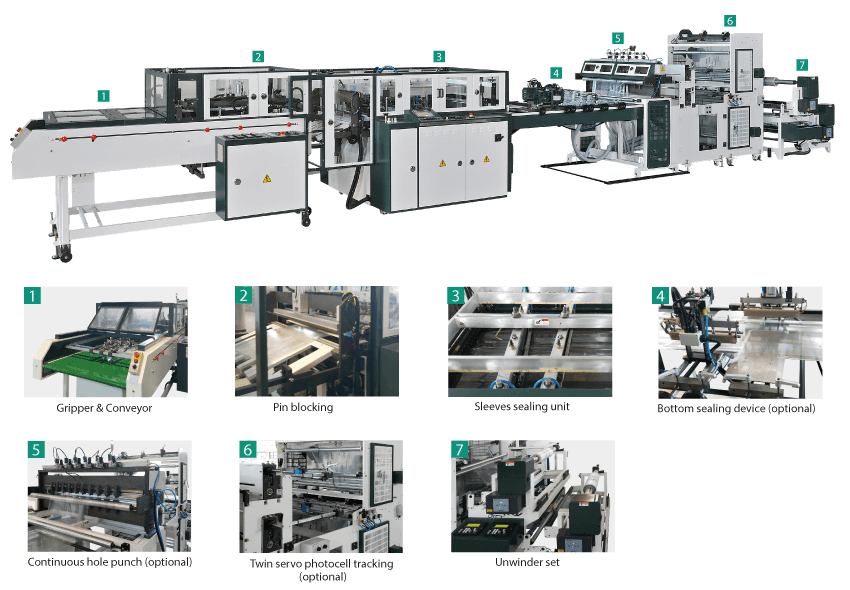

Main Machine
- Servo motor - Accuracy and highspeed @180 bags
- Malfunction alarm / stop - Abnormal temperature / No material feed / Photocell track miss / Bag jam
Cutting / Sealing Blade
- Standard type - Sealing angles and distance are adjustable for different specs; reliable sealing performance
- Guided silicon belt - Guided silicon belt design stablize film motion and sealing; easy design for belt change and replacement
Collection Blocking
Standard cold-pin blocking - Blocking finished bag by cold pin for labor collection or gripper
Take Out System
-
Manual takeout - Finshed sleeves collected and seperated manually by labour
-
Gripper takeout - Gripper takes out finished pile and stack on conveyor
Unwinder
-
Dual bobbins - Unwinder feeding in 2 film rolls; top + bottom layers
-
Auto-tension control - Maintaining web-tension for uniformity and stability
-
EPC or LPC - Edge tracking for accurate positioning, upgradable for print line tracking for higher print positioning accuracy.
-
Optional triangle folding unwinder set - Complete unwinder set for large film folding production
Model | PL24SWFFA-V | PL32SWFFA-V | PL36SWFFA-V | PL42SWFFA-V | PL46SWFFA-V |
Width (mm) | 75-660 | 75-760 | 75-760 | 75-760 | 75-760 |
Length (mm) | 75-660 | 75-700 | 75-800 | 75-900 | 75-1100 |
Strokes / min | 20-110 | 20-110 | 20-110 | 20-100 | 20-100 |
Film thickness (mm) | 0.012-0.2 | 0.012-0.2 | 0.012-0.2 | 0.012-0.2 | 0.012-0.2 |
Tolerance (mm) | ±1 | ±1 | ±1 | ±1 | ±1 |
Power | 5 | 5.5 | 6.5 | 7 | 7.5 |
Machine dimensions | 450 x 160 x 160 | 450 x 180 x 160 | 450 x 200 x 160 | 450 x 220 x 160 | 450 x 240 x 160 |

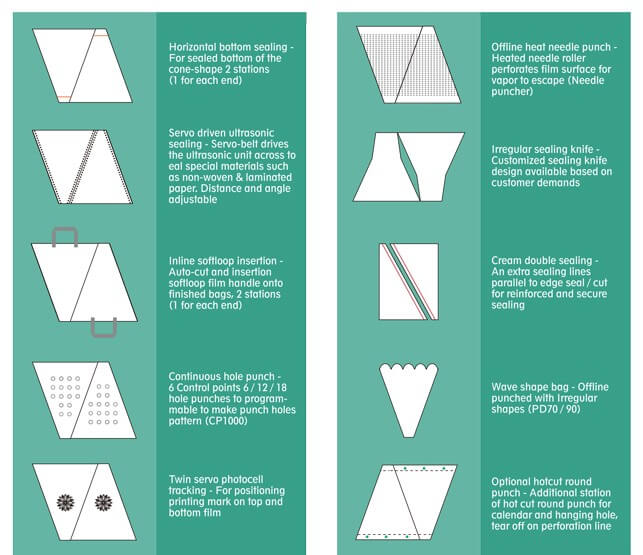

Optional Accessories
Flower sleeves are usually customized and designed with multiple functions. PAL flower sleeves making machine offer great variety of optional accessories to achieve the appearance & functions desired by customer. Customized accessories are also available.
Specialty Botanical Wrap Pot Forming Machine
PAL presents botanical pot wrap forming machine
An automated system which feed film, cut and formed by heated mould
Finished pot wraps are collected and stacked for labour collection
Available in 2 cavities system & 3 cavities system
Other Customized Flower Sleeves & Floral Packaging Solution
Depends on your production setup, new products, new material and applications.
We provide customized solutions for your converting line.
Collarborating with numerous major flower sleeves manufacturers around the world for higher output and innovation designs & materials, PAL proudly presents the best flower sleeves system in the industry.
