- Quick and easy die changing
- Very high clamping pressure
- High opening and closing speeds
- Easy insertion and removal
- Safer Operations
- Increased productivity

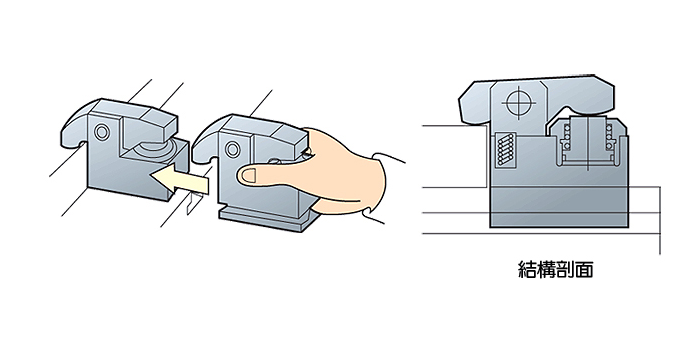

There are also a range of different Die Clamps available to suit your injection molding or mold casting requirements. The TY type Die Clamps are machined to fit into the T-slot of the bolster for extra secure positioning. The flange-mount model Die Clamps can be bolted onto the bolster and the automatic slider model Die Clamps makes remote automatic operation possible.
The following specifications can help you choose the appropriate clamp type in accordance with your injection molding requirements and production situation. Make sure of your production plans and production procedure before choosing your product to be sure of the product that best suits your needs.
Mold Plate |
Mold Change Direction |
Clamping type |
Characteristics |
No Union |
Vertically |
Moving Clamp |
Fixed in with T-slot |
Union |
Vertically |
Fixed & Moving Clamp |
Clamp fixed or Moving on plate |
Horizontally |
Fixed Clamp |
Install roller or sliding rail upon the plate. Use cart or mold exchange table for easy operation and the shortest possible mold changing time. |
TY Clamp Model Specifications
Model |
Unit |
TY-1 |
TY-2 |
TY-4 |
TY-6 |
TY-10 |
TY-16 |
TY-25 |
TY-35 |
Tons Clamping (at 250Kg/cm2) |
tons |
1 |
2 |
4 |
6.3 |
10 |
16 |
25 |
35 |
Full Stroke (X) |
mm |
6 |
7 |
7 |
8 |
8 |
8 |
8 |
8 |
Clamping Stroke (Y) |
mm |
3 |
2 |
3 |
3 |
3 |
3 |
3 |
3 |
Extra Stroke (Z) |
mm |
3 |
5 |
4 |
5 |
5 |
5 |
5 |
5 |
Cylinder Capacity st Full Stroke |
cc |
2 |
6.5 |
13.2 |
22.3 |
37 |
61 |
93 |
109 |
Clamp Dimensions

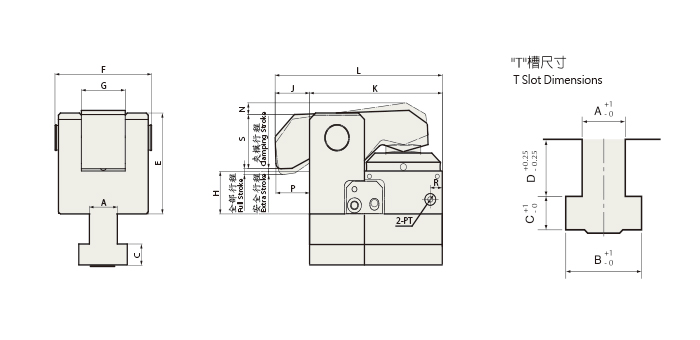

*For a closer look at the exact dimensions of the TY series die clamps please see the following diagram and table.
Model | MIN. E | F | G | J | K | L | MAX. N | P | R | MIN. S | PT | MIN. C | MIN. A |
TY-1 | 49.5 | 46 | 20 | 15 | 58 | 73 | 10 | 10 | 34 | 16.5 | 8-Jan | 7 | 10 |
TY-2 | 59 | 63 | 28 | 22 | 85 | 107 | 10 | 12.5 | 48 | 27 | 8-Jan | 9.5 | 12.5 |
TY-4 | 85 | 87 | 40 | 25 | 120 | 145 | 10 | 16 | 12 | 33 | 4-Jan | 12 | 15 |
TY-6 | 94 | 97 | 44 | 29.5 | 133 | 162.5 | 11 | 20 | 12 | 40 | 4-Jan | 14 | 19 |
TY-10 | 105 | 110 | 50 | 28 | 165 | 193 | 11 | 20 | 19 | 53 | 4-Jan | 16.5 | 23 |
TY-16 | 120 | 130 | 60 | 30 | 200 | 230 | 12 | 20 | 25 | 67 | 4-Jan | 19 | 27 |
TY-25 | 133 | 150 | 73 | 30 | 240 | 270 | 13 | 20 | 30 | 81 | 4-Jan | 22 | 32 |
TY-35 | 143 | 170 | 80 | 30 | 280 | 310 | 15 | 20 | 30 | 90 | 4-Jan | 25 | 35 |
Model | A | B | C | D | Power Unit Models |
---|---|---|---|---|---|
TY-1 | 22 | 37 | 16 | 24 | FP6308U-4-C |
TY-2 | 22 | 37 | 16 | 24 | |
TY-4 | 22 | 37 | 16 | 24 | FP1014U-4-4C |
TY-6 | 28 | 48 | 20 | 28 | |
TY-10 | 28 | 48 | 20 | 28 | |
TY-16 | 28 | 48 | 23 | 28 | |
TY-25 | 36 | 56 | 25 | 28 | |
TY-35 | 40 | 70 | 30 | 40 |
